DISASSEMBLY PROCEDURES

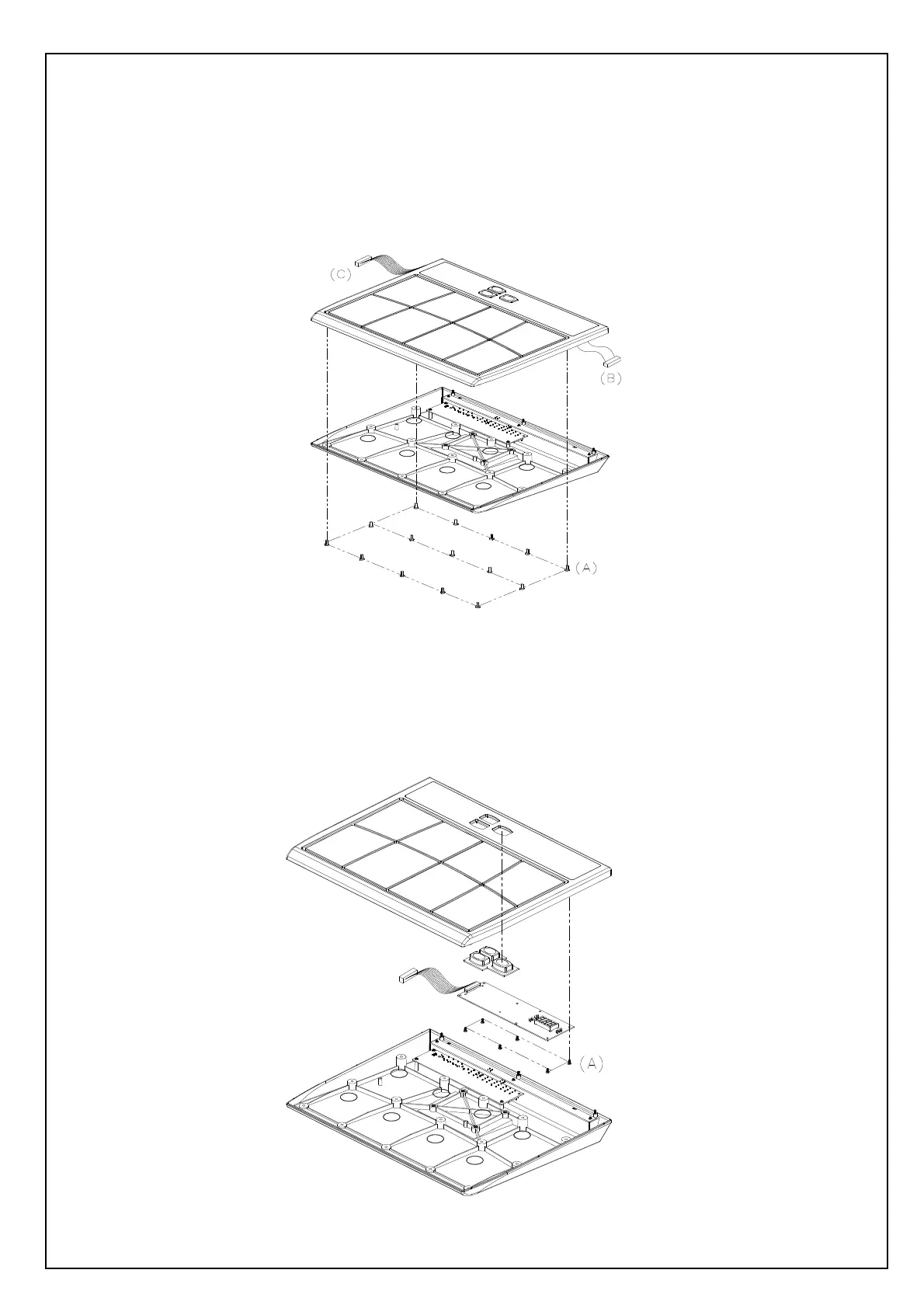

1. DISASSEMBLE THE CABINET (Fig1)
(A) REMOVE 15 SCREWS FROM TOP CABINET.
(B)(C) REMOVE 2 CABLES.
(Fig1)
2. DISASSEMBLE THE FRONT PANEL PCB ASS’Y. (Fig2)
(A)REMOVE 6 SCREWS FROM THE CABINET.
(Fig.2)
