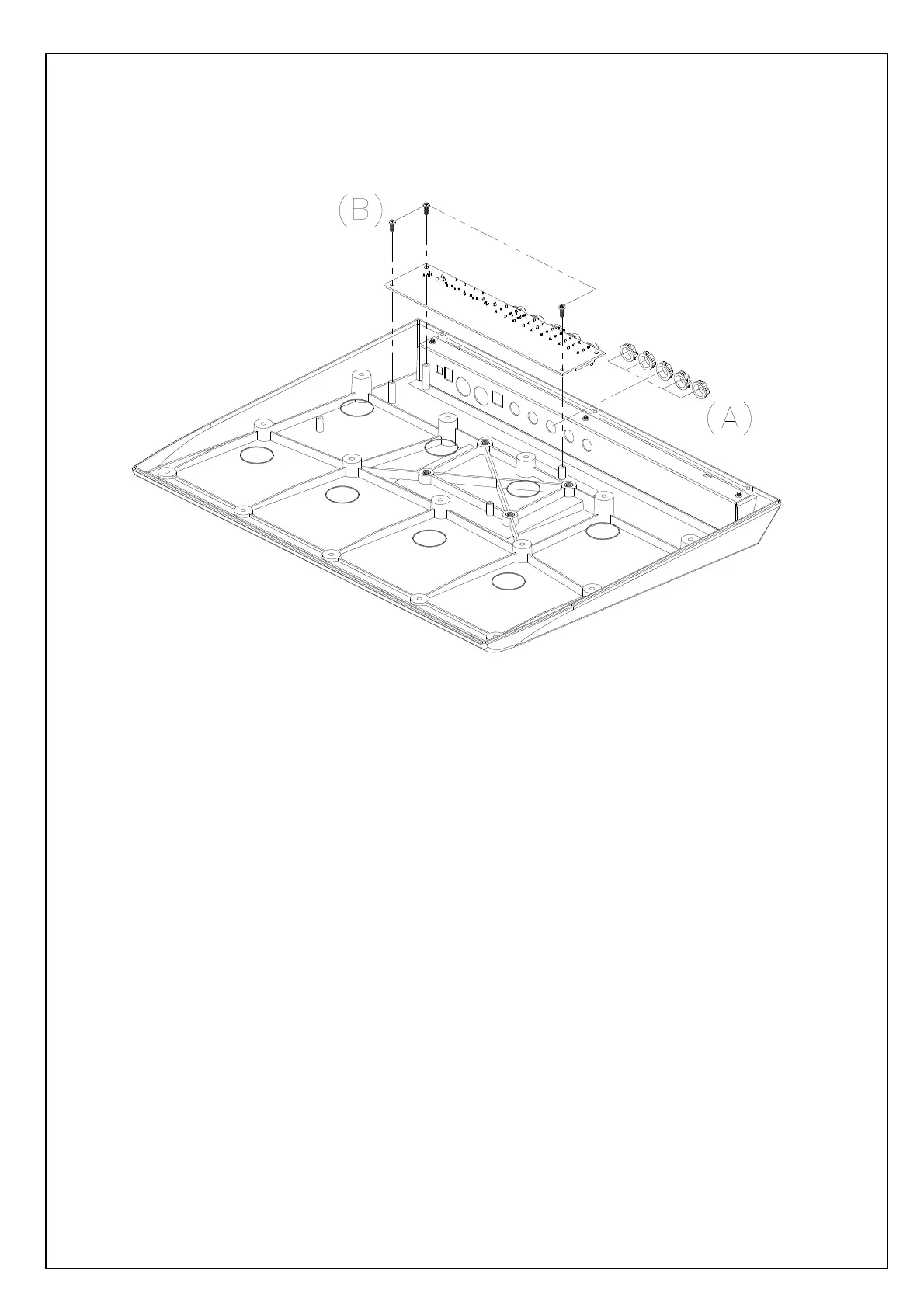

3.DISASSEMBLE THE MAIN PCB ASS’Y. (Fig3)

(A) REMOVE 5 1/4” JACK NUTS.

(B) REMOVE 3 SCREWS.

(Fig.3)
