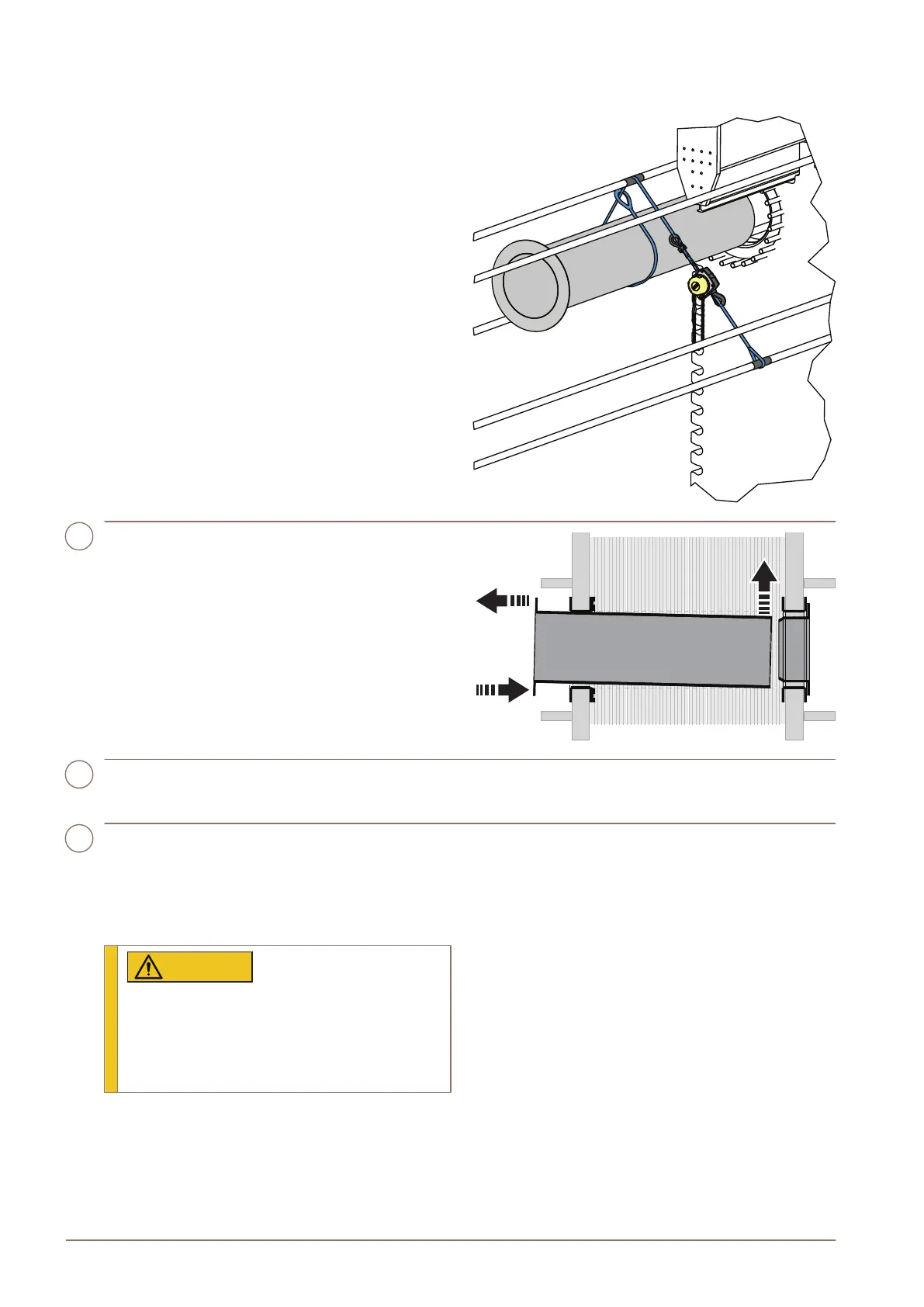

c) Installation in upper port: Arrange straps
and chain pulley according to picture for
installation in ports. Protect the threads of
the tightening bolts by sliding a metal tube
over the tightening bolt.
8
Thread the port filter tube over the cone at
the opposite port by pushing the lower part of
flange against the port and pull the upper part
to guide the tube over the cone. Then push
the port filter until the flange reach the lining
of the port.
9
Attach the flange gasket to the outside of the
port filter flange if not already in place.
10
Put the inspection cover back in place and
fasten the nuts. Use lifting equipment with
straps arranged in the same way as in the
step of removing the inspection cover earlier
in this instruction.
CAUTION
Risk of personal injury.
The inspection cover is heavy and lifting
equipment is required. Attach the straps
to the lifting eye on the inspection cover.
