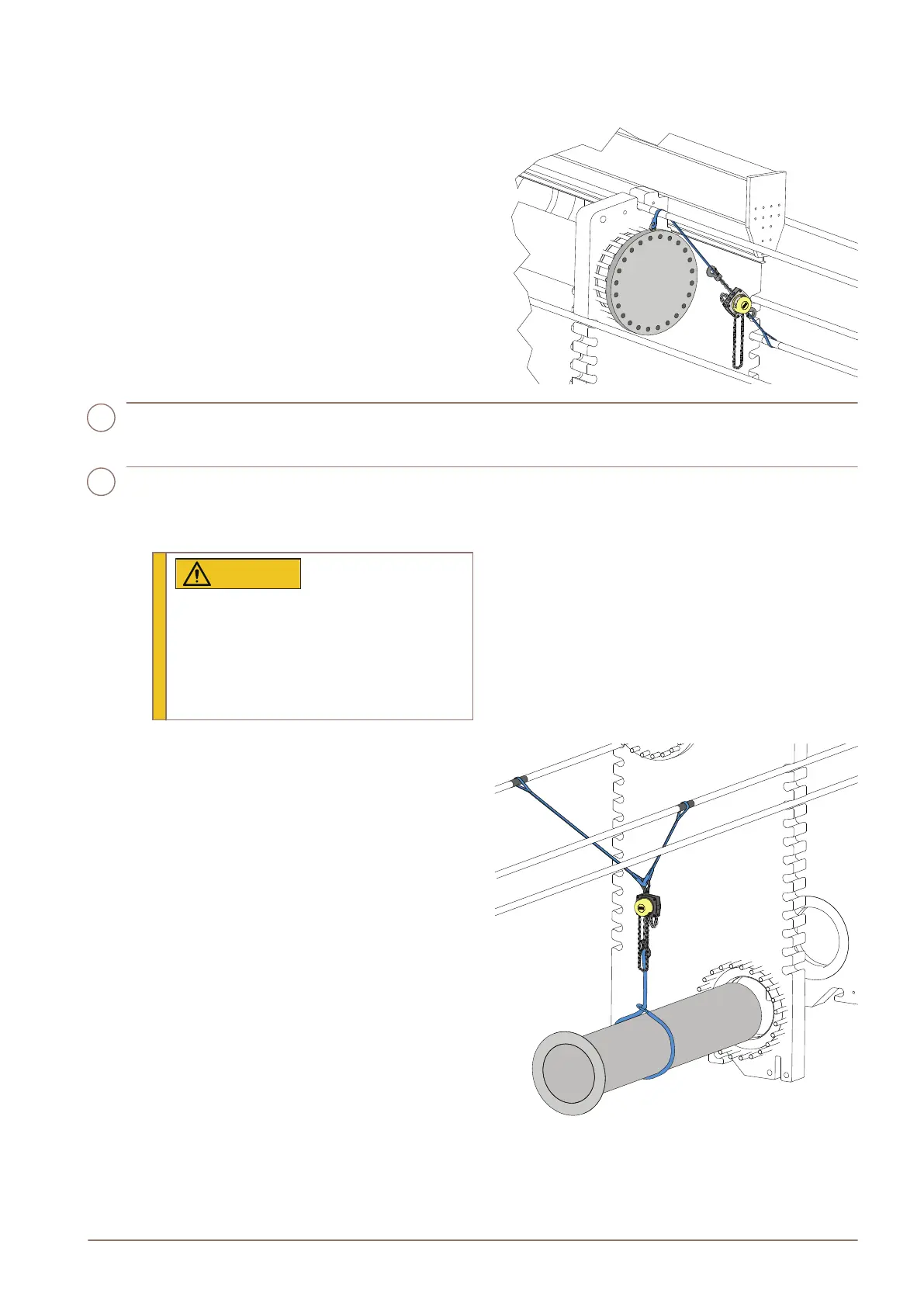

b) Upper port: Arrange straps and chain
pulley according to picture. Protect the
threads of the tightening bolts by sliding a
metal tube over the tightening bolt.
6
Attach one flange gasket at the port in the
pressure plate if not already in place.
7
Insert the port filter into the port in the
pressure plate.
a) For large port filter use lifting equipment.
CAUTION
Risk of damage to equipment.
Handle the port filter with care to
avoid any damage. Avoid exposure of
bending forces as risk of collapsing
the filter tube increases.
b) Installation in lower port: Arrange straps
and chain pulley according to picture for
installation in ports. Protect the threads of
the tightening bolts by sliding a metal tube
over the tightening bolt.
200001927-2-EN-GB 11
