1
Remove the connection flange pipe on the
frame plate by loosening all nuts.
CAUTION
Risk of personal injury.
The connection flange pipe is heavy and
it is required to use lifting equipment.
Follow the lifting instructions from the
manufacturer of the connection flange
pipe.
2
Attach one flange gasket at the port in the
frame plate if not already in place.
3
Insert the conical guide ring into the port of
the inlet flow (frame plate).
4
Attach one flange gasket to the outside of the
conical guide ring flange.
5

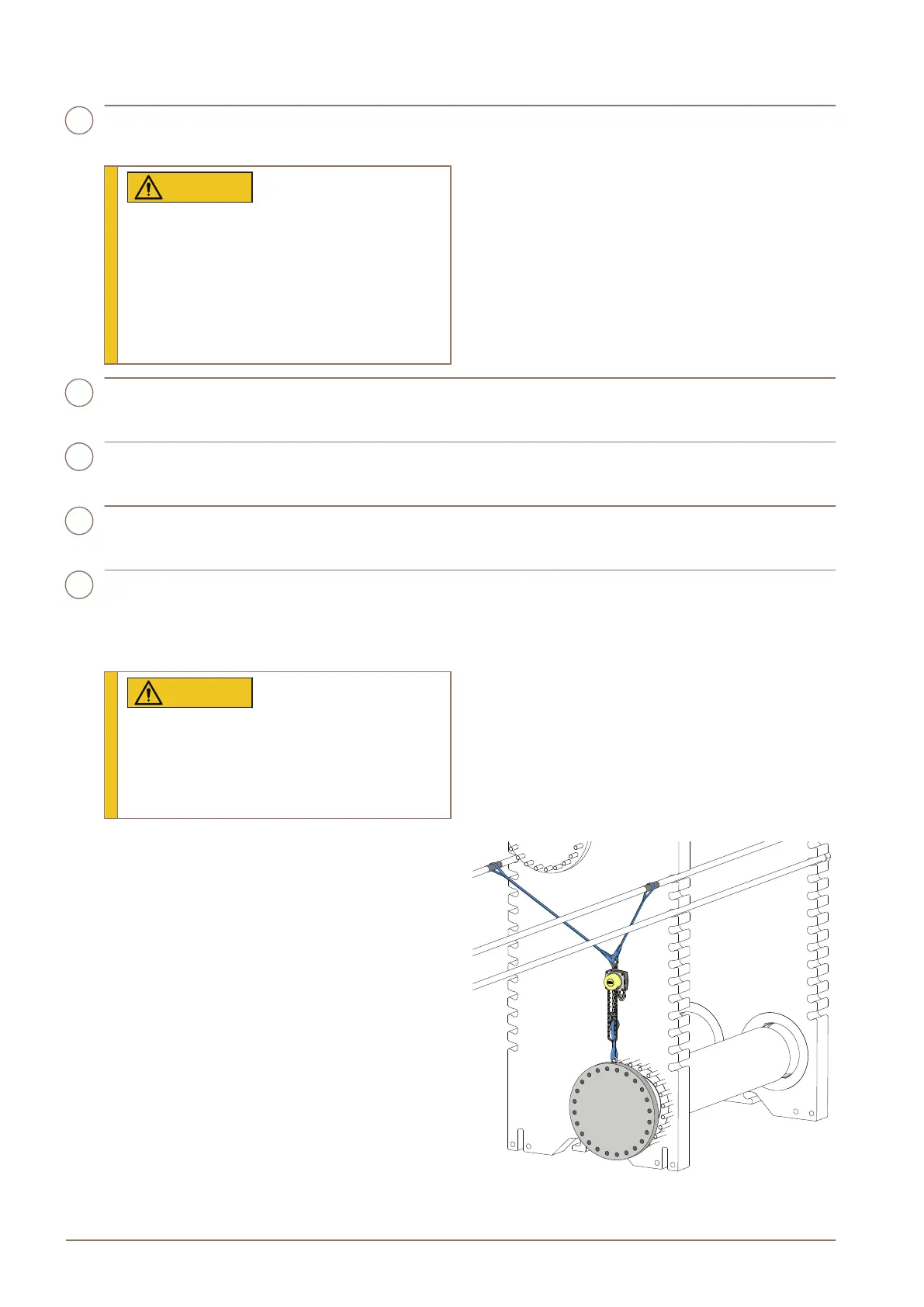

Remove the inspection cover from the
pressure plate by loosening all nuts. Use
lifting equipment with straps attached
according to picture.
CAUTION
Risk of personal injury.
The inspection cover is heavy and lifting
equipment is required. Attach the straps
to the lifting eye on the inspection cover.
a) Lower port: Arrange straps and chain
pulley according to picture. Protect the
threads of the tightening bolts by sliding a
metal tube over the tightening bolt.
200001927-2-EN-GB10
