Installation of port filter
Installation of the port filter can be done when all preparation has been performed with shut-down and
isolating the plates heat exchanger.
NOTE
The port filter length is precisely adapted to the specific plate heat exchanger. Modifications to the
plate heat exchanger may make the port filter not fit the dimensions of the plate heat exchanger
anymore.

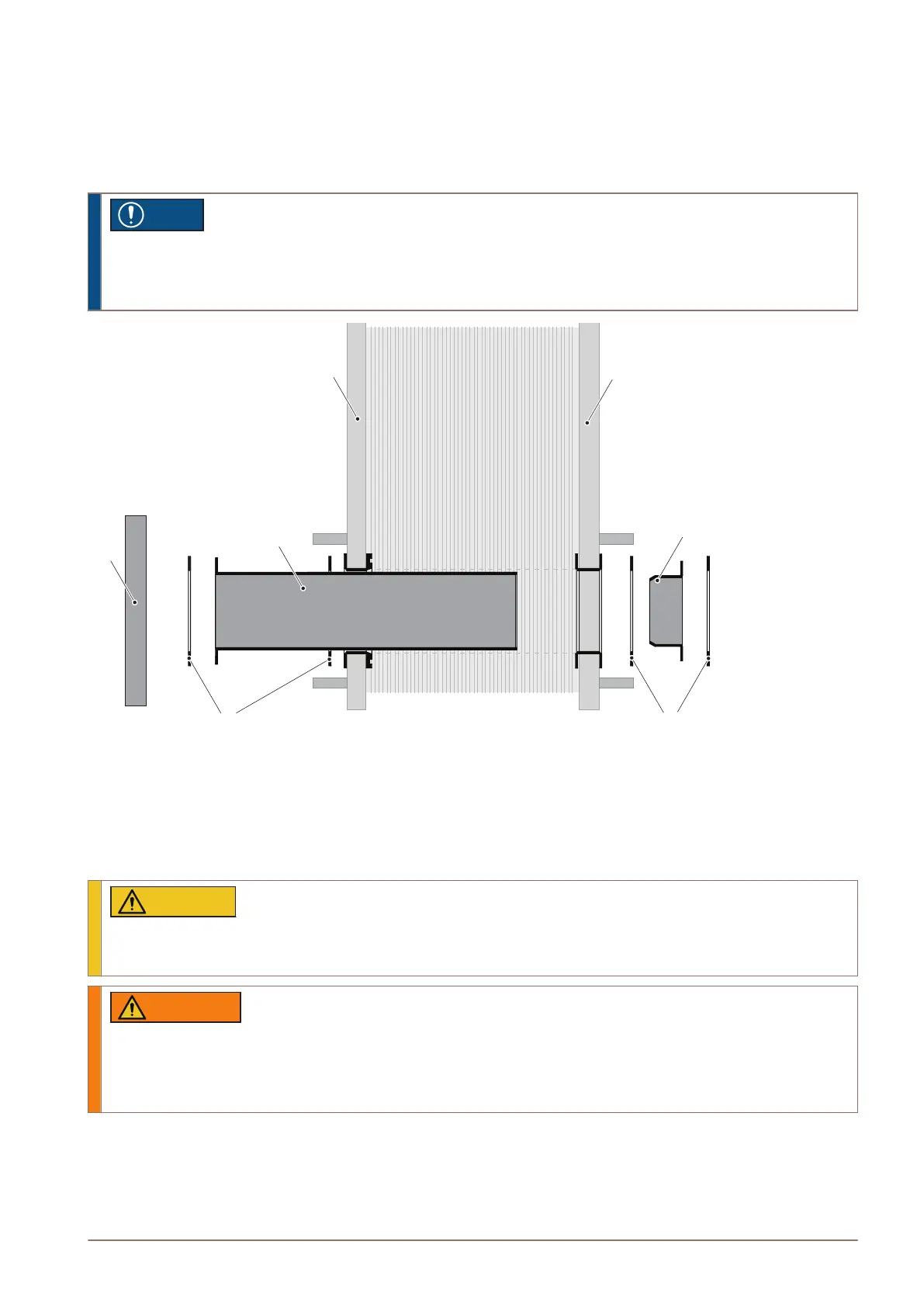

1. Pressure plate
2. Frame plate
3. Inspection cover
4. Port filter
5. Conical guide ring
6. Flange gasket
CAUTION Risk of falling.
If the port filter is installed at upper ports take precaution action, see Section Working at height in
Chapter Introduction.
WARNING
Risk of personal injury
The edges of the port filter can be sharp.
Wear personal protective equipment when handling the equipment during installation. Handle the
equipment with precaution. See Section Personal protective equipment in Chapter Safety
