15

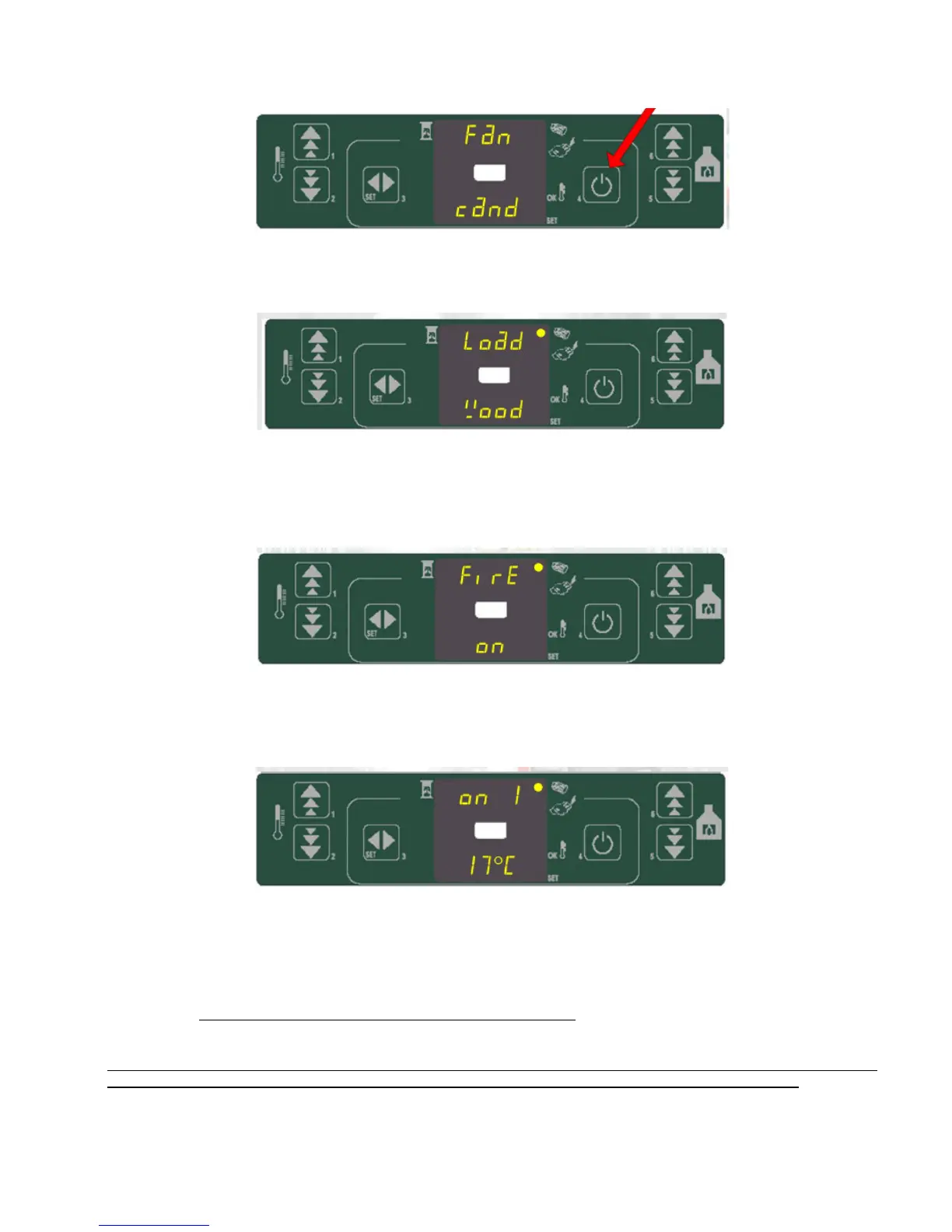

In order to start the stove, press button 4. Shortly after this, the command to the electronics will put the stove into a
state of calibration, that is, preparation for work and the message shown in figure 19 appears on the display. The
suction device will be switched off for about 15 seconds, that it will be switch on again for maximum 7 seconds.
Figure 19.
Upon termination of this stage, which lasts about 20 seconds, the message "LOAD WOOD" appears as shown in
figure 20. The snail loader loads the pellets and the ignition heating element is on. This is shown on the display of the
control keyboard through the previously described LED lamps.
Figure 20.
When the temperature is sufficiently high )after about 15 minutes), reach in accordance with a certain coefficient (about
3ºC per minute), the electronic command prepares the fuel ignition and the next stage of operation follows, flame
stabilization and then the display of the command board shows the message "FIRE ON" (activated flame) as in figure
21. The tangential fan (alternator) switches on at that moment as well.
Figure 21.
Upon termination of the stabilization stage (the standard duration is about 2 seconds), the control of the electronic unit
goes to an operation mode, sowing the selected heating power (which may be changes by means of the buttons 5 and
6) and the ambient temperature Figure 22.
Figure 22.
In this stage the buttons 5 and 6 adjust the stove energy from 1 to 5, provided that the ambient temperature is less
than the determined set temperature*.
Otherwise, the heating energy is set to a minimum.
* Actually, the stove is set to an ambient temperature. After reaching the desired temperature (manually adjusted –
look at the chapter with description of the modification of ambient temperature), the stove adjusts its operation to a
minimum and in that case it is not possible to change the heating energy.
Of the pellet d fuel does not ignite, the stove will try once more to ignite the fuel. If the pellet ignition does not succeed
once again, this will be indicated with an alarm.
The speed of the device for air suction and the fan, as well as the time required for furl ignition through the heating
element, are parameters which can be adjusted only by authorized professional repairmen, factory exports.
Once connection to the power supply is established, upon stoppage of electricity for a certain period of time, the
control of the electronics enables discharge of the remaining smoke with an increased speed of the air suction device
and then the display shows the following message "COOL FIRE". Once the cooling is over, then the fuel ignition starts
once again.
