ALFRA ROTABEST 60 RL-E - Description

14

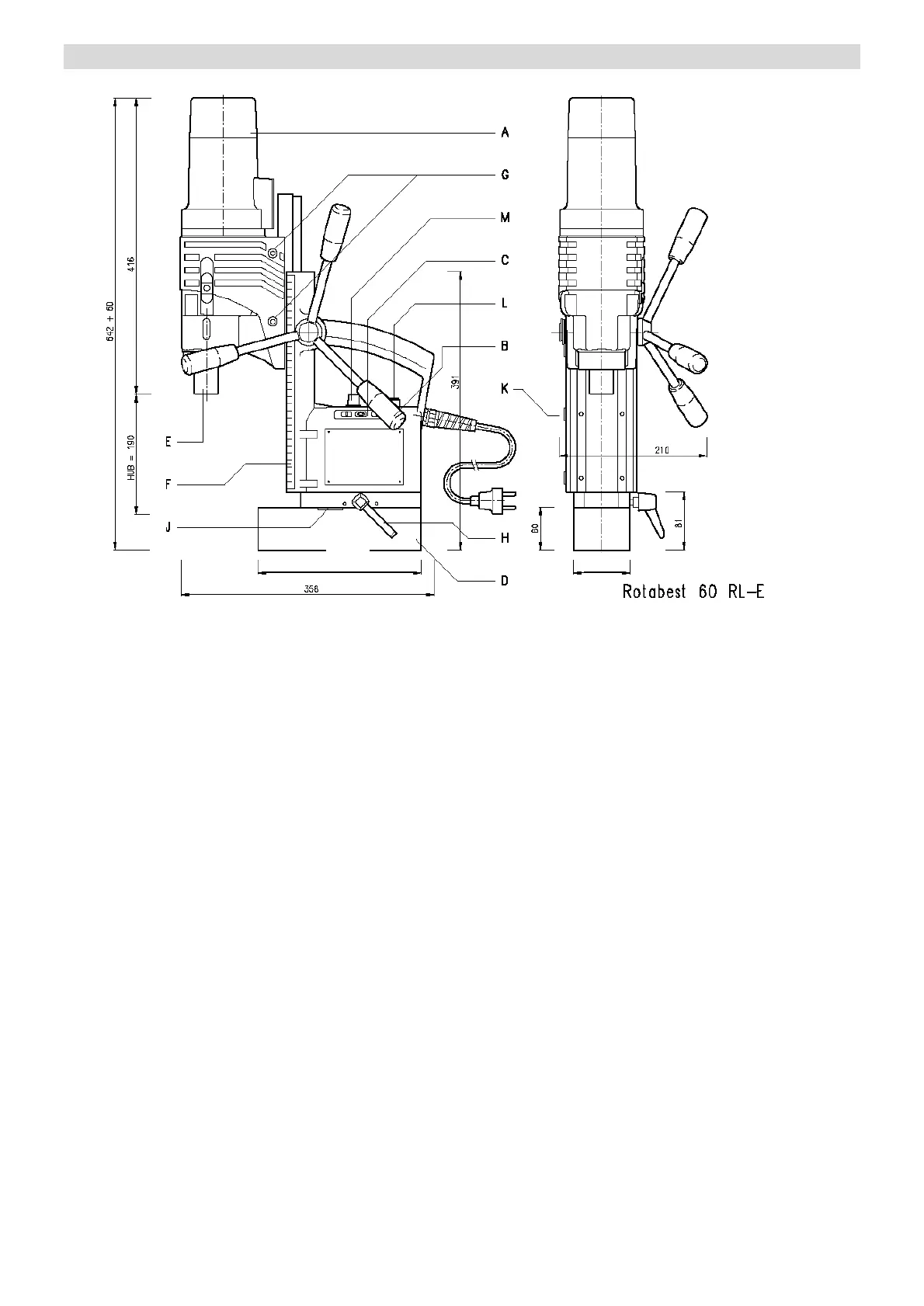

Desciption
A ) Motor
G ) Hexagon screw for the adjustment of the motors´ stroke range
B ) Spindle
H ) Clamping lever for clamping the magnet foot
C ) Control Panel
J ) Recess for safety belt
D ) Magnet Foot
K ) Adjusting screws for adjusting the slide
E ) Arbor
L ) Push button for „Left-hand rotation“
F ) Depth Scale
M ) Rotation speed control
238
92
