17
How to work with twist drills
5. The drill chuck 3-16 mm with MT 3 shank is only to be used with twist drills.
6. Insert drill chuck with adaptor in the arbor.
7. Insert twist drill in drill chuck and tighten drill chuck key.
8. Twist drills with MT 3 shank can be inserted directly into the arbor.
The motor can be continuously adjusted on the slide by releasing the Allan screw
(for a maximum enlargement of the stroke when using twist drills, drill chucks and
tapping attachments).

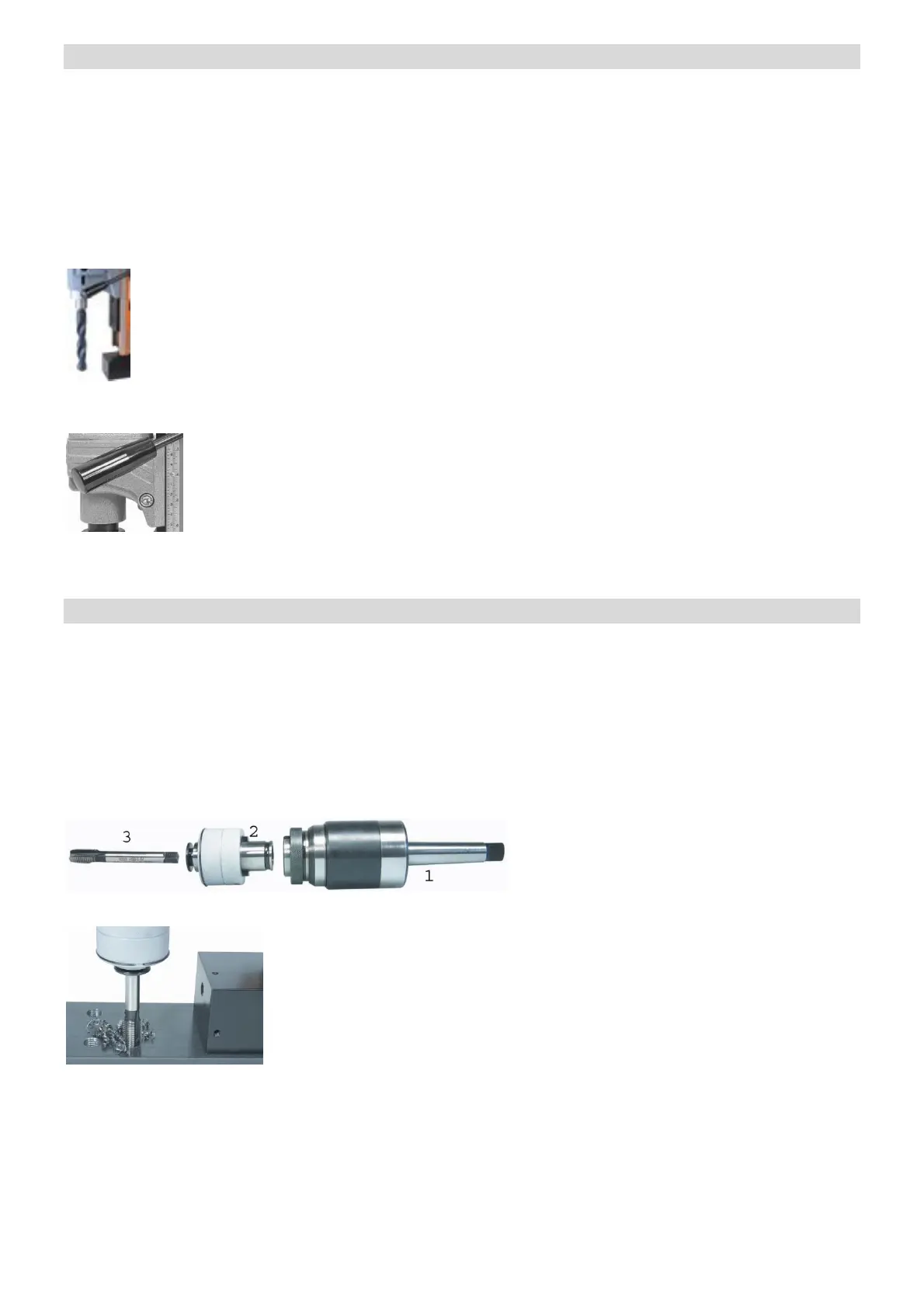

Tapping
With the Quick Change Tapping Adaptor, there is the possibility to tap threads from M3 up to M 30.
Insert the Quick Change tapping Adaptor (1) in the arbor of the machine. Pay attention to a tight fit.
Subsequently mount the tap (3) in the tap collet (2).
Now insert the tap collet (2) with tap (3) in the Quick Change Tapping Adaptor (1).
Adjust the motor to the corresponding cutting speed.
It must be ensured that the tap is placed on the drill hole.
When stopping the forward motion proceed as follows:
Switch off motor.
Push button „Left-hand rotation“.
Switch on motor.
Lead back the tap.
