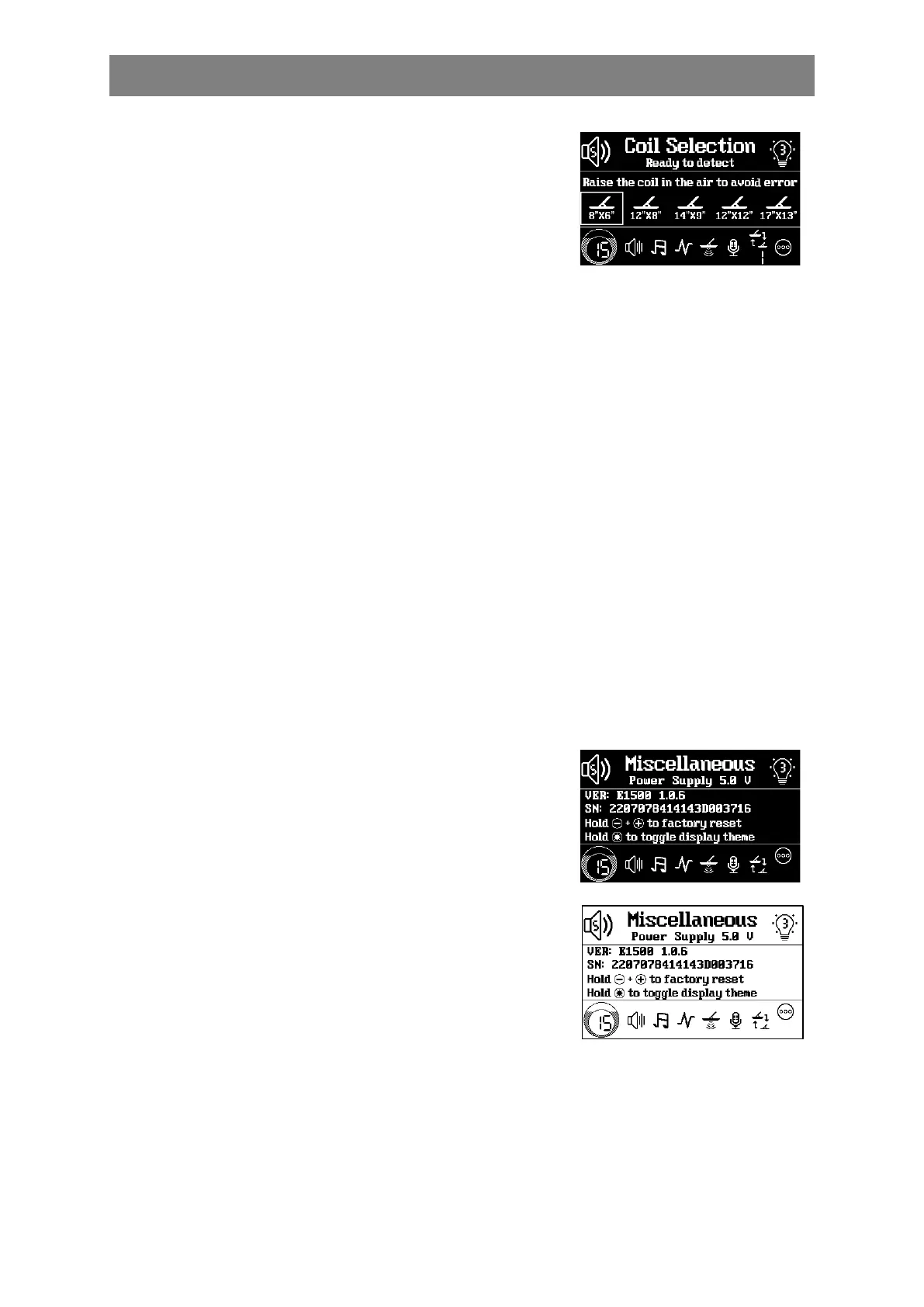

Coil Selection
In the Coil Selection setting, there are five coil icons, each
storing the calibration parameters and the coil size for a
different coil. This means the detector can store calibration
parameters for up to five coils.
If the package comes with a coil, its calibration parameters will be saved as the default parameters
for all the coil icons. If it doesn't, the parameters of a factory-designated standard coil will be used
as the default. Factory reset does not change the coil icons' calibration parameters or coil size.
The coil size of each coil icon can be modified by following these steps: Hold the Return/Auto FS
button to enter the coil size editing mode. In this mode, a short underscore appears beneath the
coil size number you intend to modify. Use the Left/Pinpoint or Right/Auto GB button to select
the coil size number you wish to adjust. Then, make the desired modifications using the Minus or
Plus button. To exit the coil size editing mode, press the Return/Auto FS button. After making
these adjustments, you will see the selected coil size displayed in both the Main Detection UI and
the Pinpoint UI.
When you connect a new coil, it's recommended to calibrate it by following these steps:
 Choose an unused coil icon to save the calibration parameters and adjust its coil size to
match the actual coil.
 Hold the coil in the air, keeping metal and soil at least one meter away.
 If the LCD shows "Ready to detect", the stored parameters in the selected icon are good
for the new coil and no further calibration is needed.
 If the LCD shows "Hold ⊖ + ⊕ to calibrate", hold the Minus and Plus buttons until coil
calibration starts. Keep the coil in the air during the 25-second calibration process.
Afterward, the LCD will display "Ready to detect".
8
.
Miscellaneous Setting
Information about the power supply voltage, firmware version,
and hardware serial number can be found in the Miscellaneous
setting.
To perform a factory reset, hold both the Minus and Plus
buttons for 3 seconds. After a factory reset, the coil profiles,
including the coil names and calibration data, remain intact, so
you don't need to set up your coils again.
You can switch between a dark or light display theme by
holding down the Backlight Adjust button.
