AlgoForce E1500
7

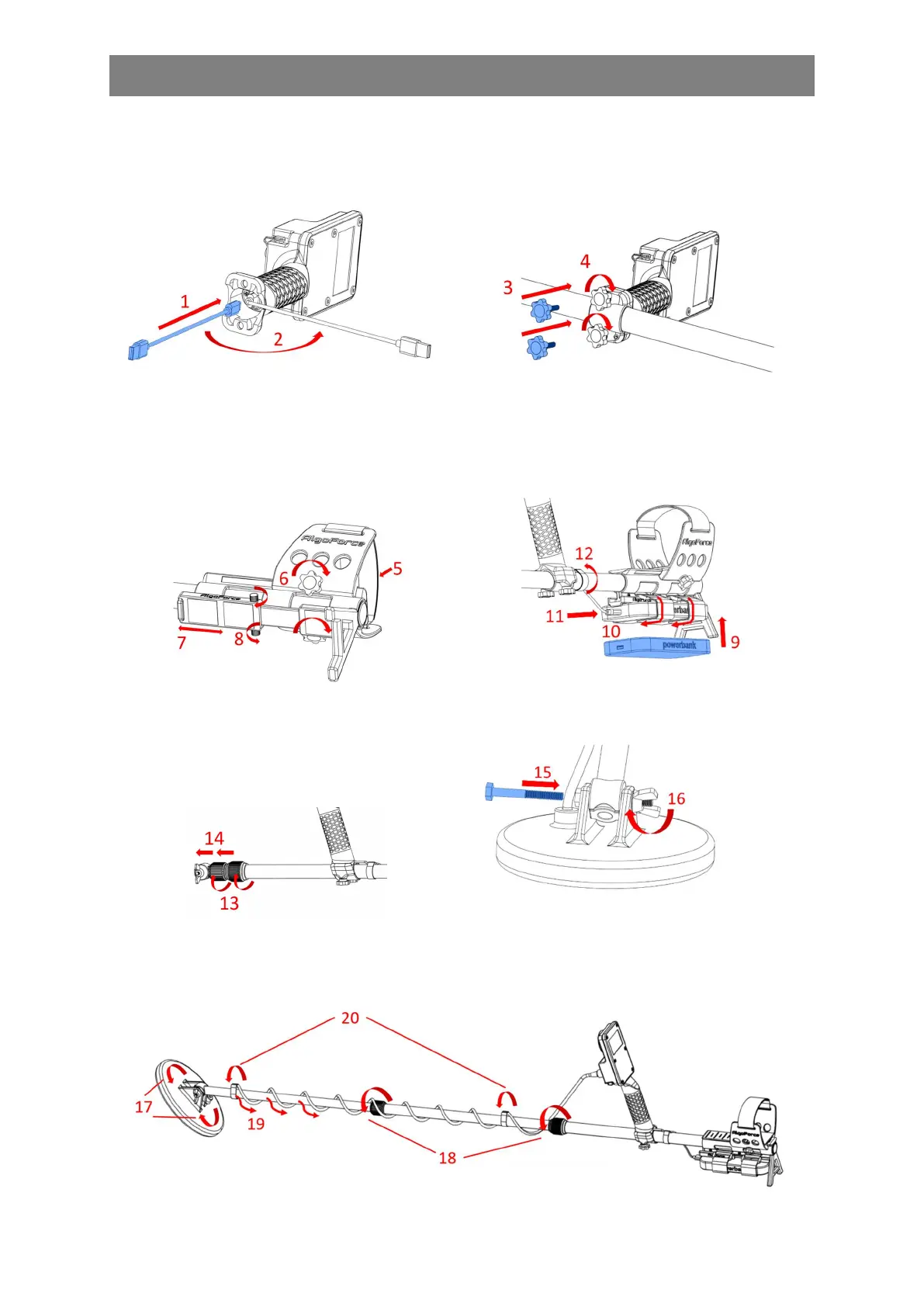

Assembly
1
-
2
.
Plug the USB cable into the control box
.
3
-
4.
Mount the control box onto the stem
using
two M5x20 screws.
5. Install the standard or large arm strap onto
the arm cuff based on your arm size.
6. Position the arm cuff on the sliding rail and
fasten it with two M5x14 screws.
7. Position the powerbank stopper.
8. Fix the powerbank stopper to the sliding rail.
9. Put the powerbank in the holder.
10. Secure the powerbank with two straps.
11. Connect the USB cable to the powerbank.
12. Secure the USB cable with a cable strap.
13. Release the two twist locks.
14. Extend the rods. The middle-piece rod is
designed to rotate freely with the upper-piece
rod when the upper twist lock is released.
15
-
16.
Align the hole of the coil yoke with the
hole of the lower-piece rod. Then attach the
coil to the coil yoke and the lower-piece rod.
17.
If
necessary, rotate the coil to the correct orientation.
18. Lock the two twist locks.
19. Arrange the coil cable.
20. Secure the coil cable with two cable straps.
