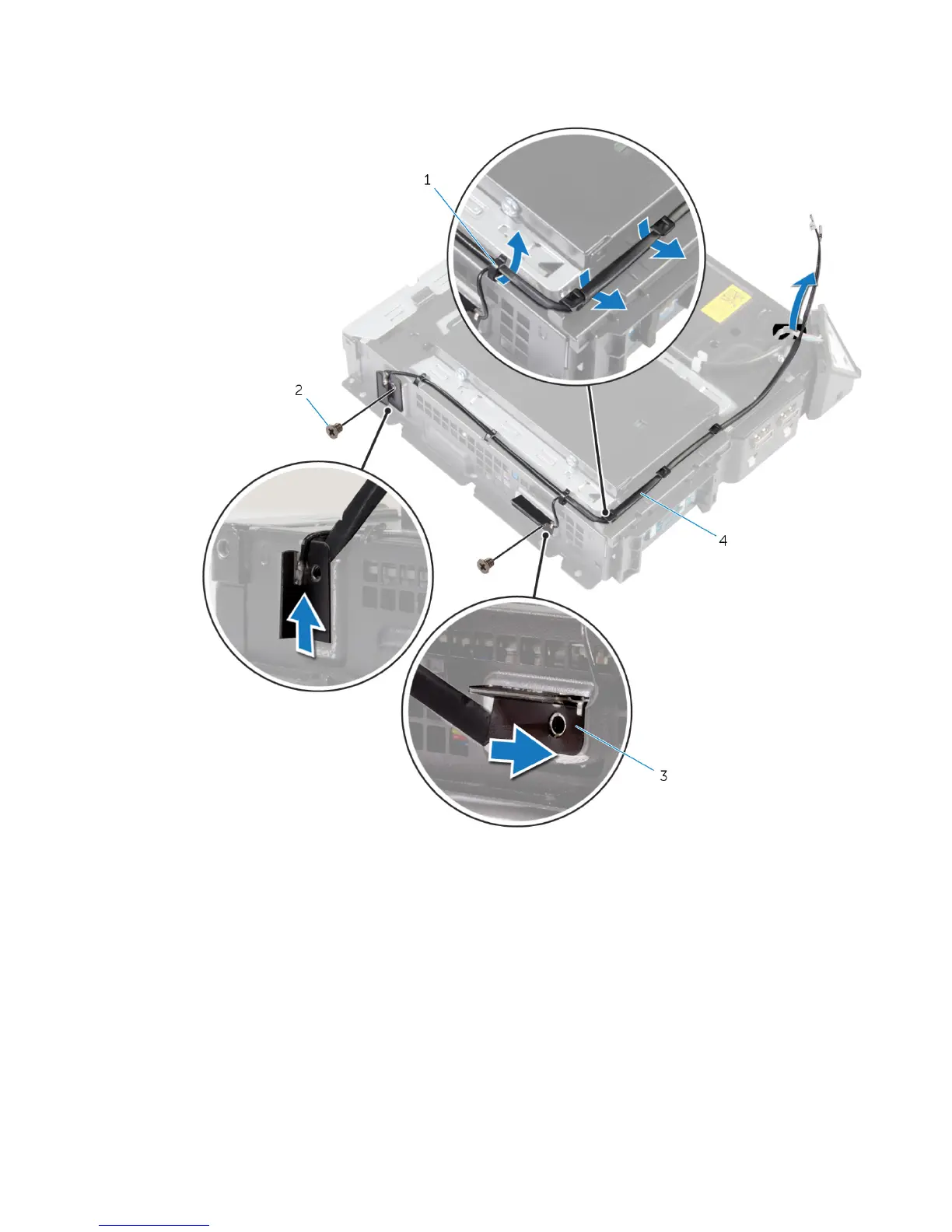

5 Using a plastic scribe, pry and slide the antenna modules, and release the
tabs on the antenna modules from the slots on the chassis.
1 routing guides 2 screws (2)
3 antenna modules (2) 4 antenna cable
6 Lift the antenna modules, along with the cable, off the chassis.
63
