Procedure

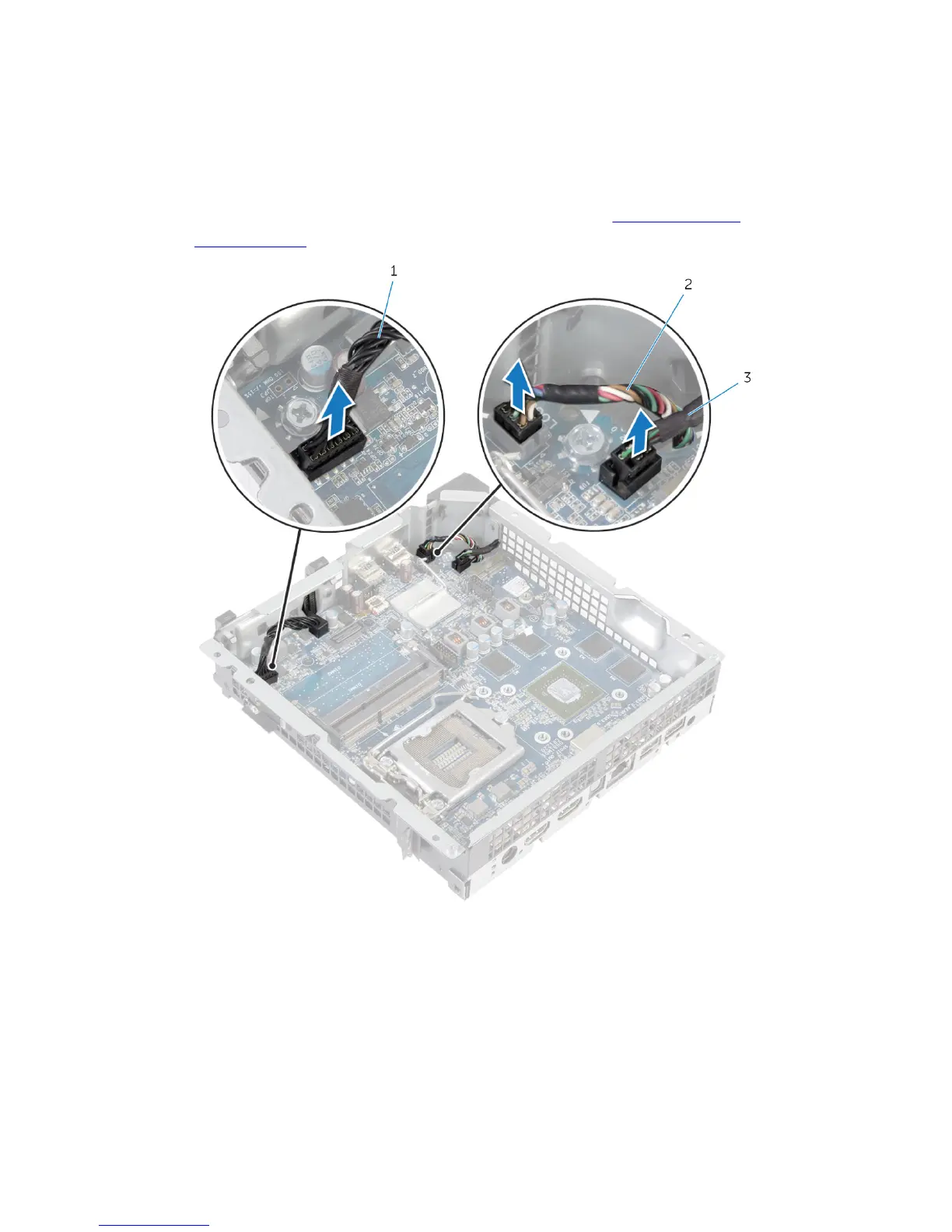

1 Disconnect the USB-port cable, front-panel light board cable, and power-
button board cable from the system board.
For information on the location of connectors, see “System- Board
Components”.
1 power-button board cable 2 front-panel light board
cable
3 USB-port cable
2 Remove the screws that secure the back panel to the chassis.
66
