32 | Setting up the monitor
VESA wall mounting (optional)
(Screw dimension: M4 x 10 mm)
Refer to the instructions that come with the VESA-compatible wall mounting kit.
1. Plac
e the monitor panel on a soft cloth or cushion on a stable flat surface.
2. Remove
the monitor stand. (See Removing the monitor stand.)

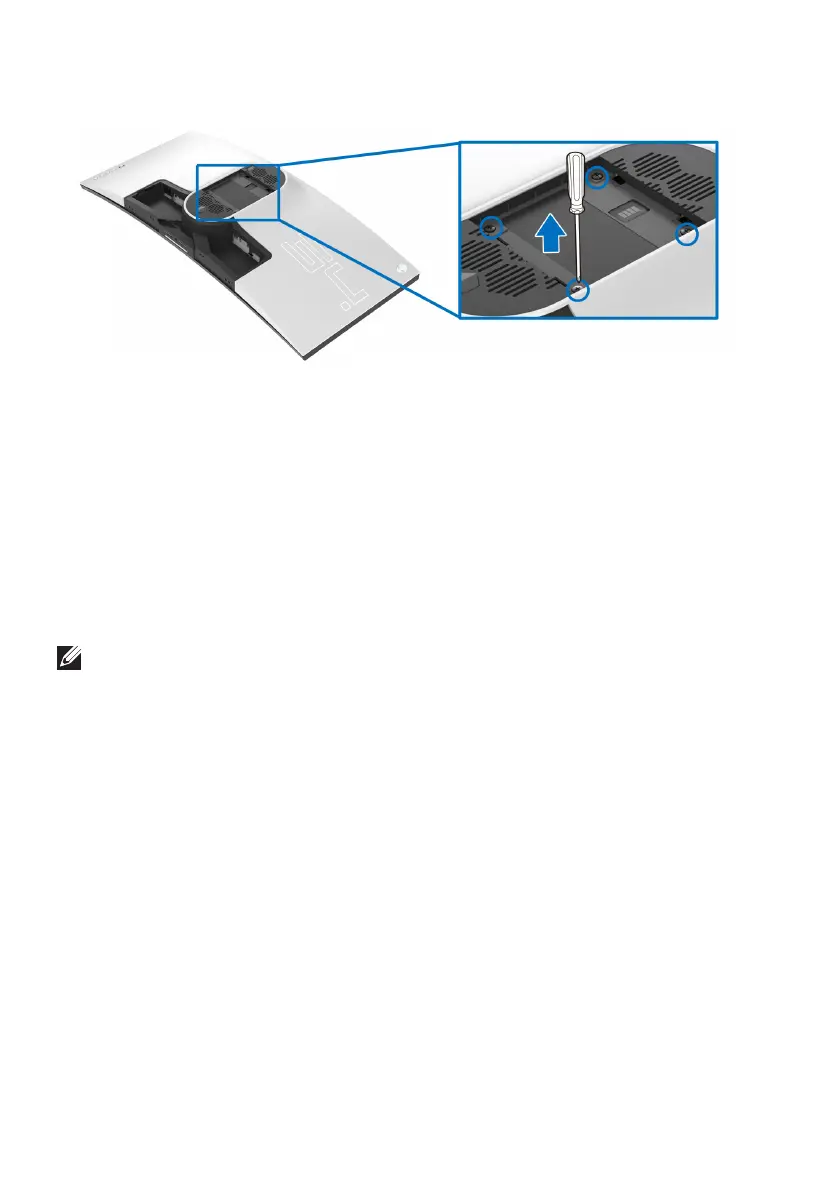

3. Us
e a Phillips crosshead screwdriver to remove the four screws securing the
plastic cover.
4. Attach the
mounting bracket from the wall mounting kit to the monitor.
5. M
ount the monitor on the wall. For more information, see the
documentation that shipped with the wall mounting kit.
NOTE: For use only with UL-listed wall mount bracket with minimum
weight or load bearing capacity of 27.2 kg.
