Alienware x15 R1

Steps

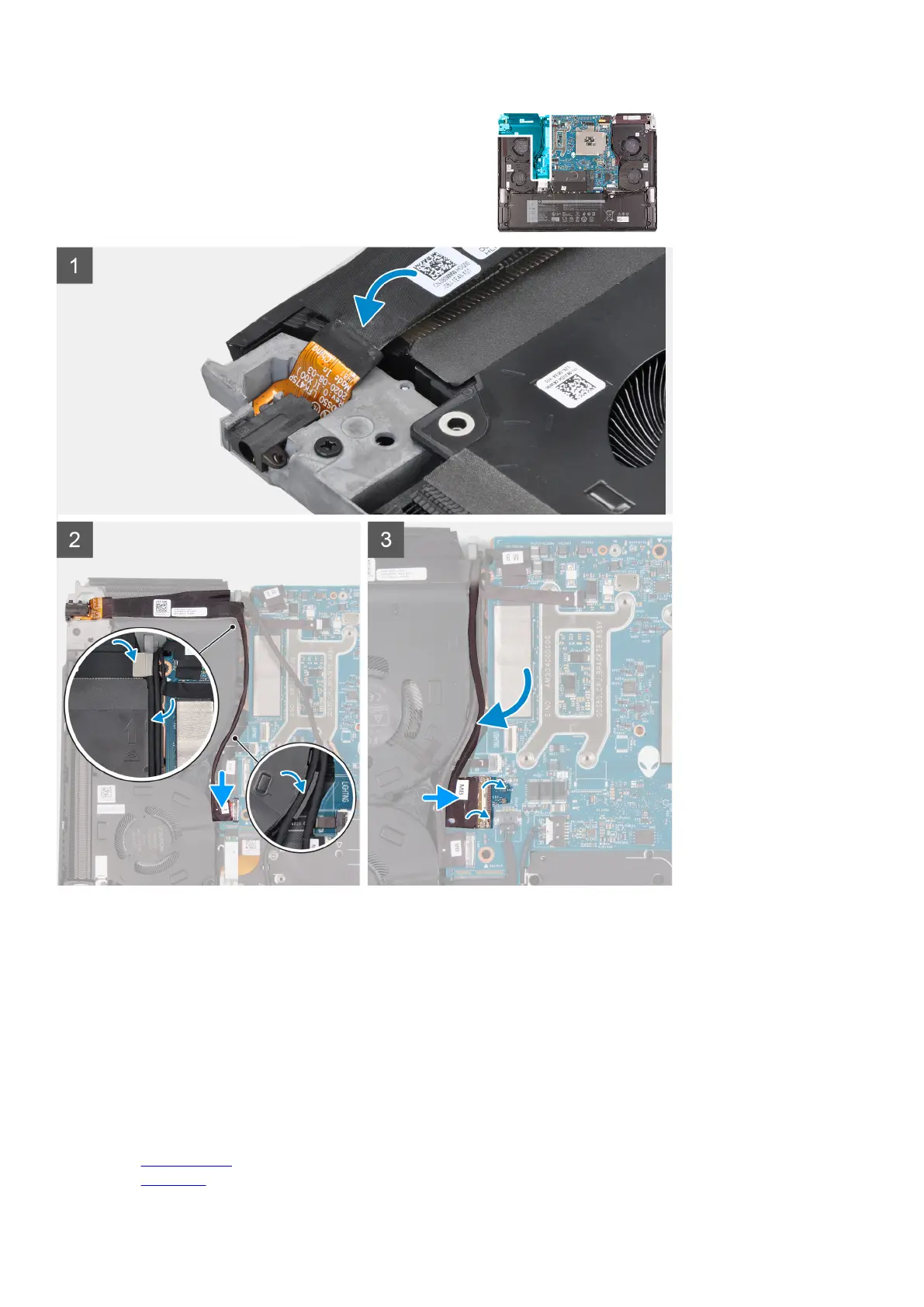

1. Slide the headset port into the slot on the palm-rest and keyboard assembly.
2. Align the headset port into the slot on the palm-rest and keyboard assembly.
3. Adhere the headset-port cable to the fan and heat-sink assembly.
4. Route the headset-port cable through the routing guides on the fan and heat-sink assembly.
5. Connect the headset-port cable to the system board.
6. Route the I/O-board cable through the routing guides on the fan and heat-sink assembly.
7. Slide the I/O-board cable into the connector on the system board and close the latch to secure the cable.
8. Adhere the tape that secures the I/O-board cable to the system board.
Next steps
1. Install the
rear I/O-cover.
2. Install the base cover.
