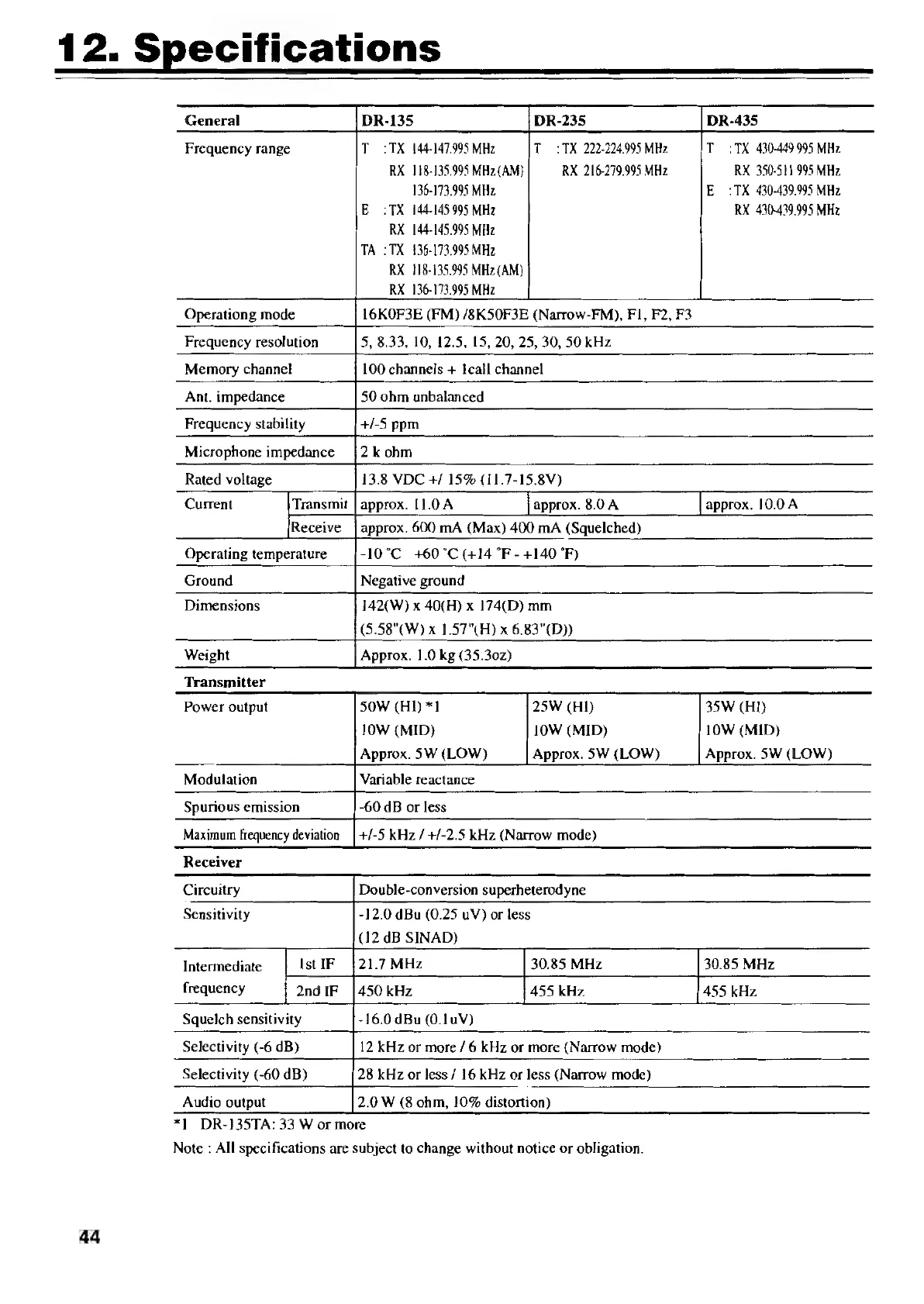

12. Specifications |
44
General
:TX 222-224.995 MHz
RX 216-279.995 MHz
T TX 430-449.995 MHz
RX 350-511.995 MHz
E :TX 430-439.995 MHz
RX 430-439.995 MHz
TX 144-147.995 MHz
RX 118-135.995 MHz (AM)
136-173.995 MHz
E :TX 144-145.995 MHz
RX 144-145.995 MHz
TA :TX 136-173.995 MHz
RX 118-135.995 MHz (AM)
RX_136-173.995 MHz
16KOF3E (FM) /8K50F3E (Narrow-FM), Fi, F2, F3
5, 8.33, 10, 12.5, 15, 20, 25, 30, 50 kHz
Frequency range T
Operationg mode
Frequency resolution
Memory channel 100 channels + Icall channel
Ant. impedance 50 ohm unbalanced
Frequency stability +/-5 ppm
2k ohm
13.8 VDC 4/-15% (11.7-15.8V)
approx. [1.0A approx. 80A approx. 10.0A
approx. 600 mA (Max) 400 mA (Squelched)
-10°C - +60°C (414 °F - +140 "F)
Negative ground
142(W) x 40(H) x 174(D) mm
(5.58"(W) x 1.57"(H) x 6.83"(D))
Approx. 1.0 kg (35.30z)
Microphone impedance
Rated voltage
Current Transmit
Receive
Operating temperature
Ground
Dimensions
Weight
Transmitter
50W (HI) *1
10W (MID)
Approx. 5W (LOW)
35,W (HI)
10W (MID)
Approx. SW (LOW)
Power output 25W (HI)
10W (MID)
Approx. SW (LOW)
Variable reactance
-60 dB or less
+/-5 kHz / +/-2.5 kHz (Narrow mode)
Modulation
Spurious emission
Maximum frequency deviation
Receiver
Circuitry Double-conversion superheterodyne
Sensitivity -12.0 dBu (0.25 uV) or less
(12 dB SINAD)
Intermediate Ist IF }21.7 MHz 30.85 MHz 30.85 MHz
frequency 2nd IF | 450 kHz 455 kHz 455 kHz
Squelch sensitivity -16.0dBu (.1luV)
Selectivity (-6 dB)
Selectivity (-60 dB)
12 kHz or more / 6 kHz or more (Narrow mode)
28 kHz or less / 16 kHz or less (Narrow mode)
Audio output 2.0 W (8 ohm, 10% distortion)
*] DR-135TA: 33 W or more
Note : All specifications are subject to change without notice or obligation.
