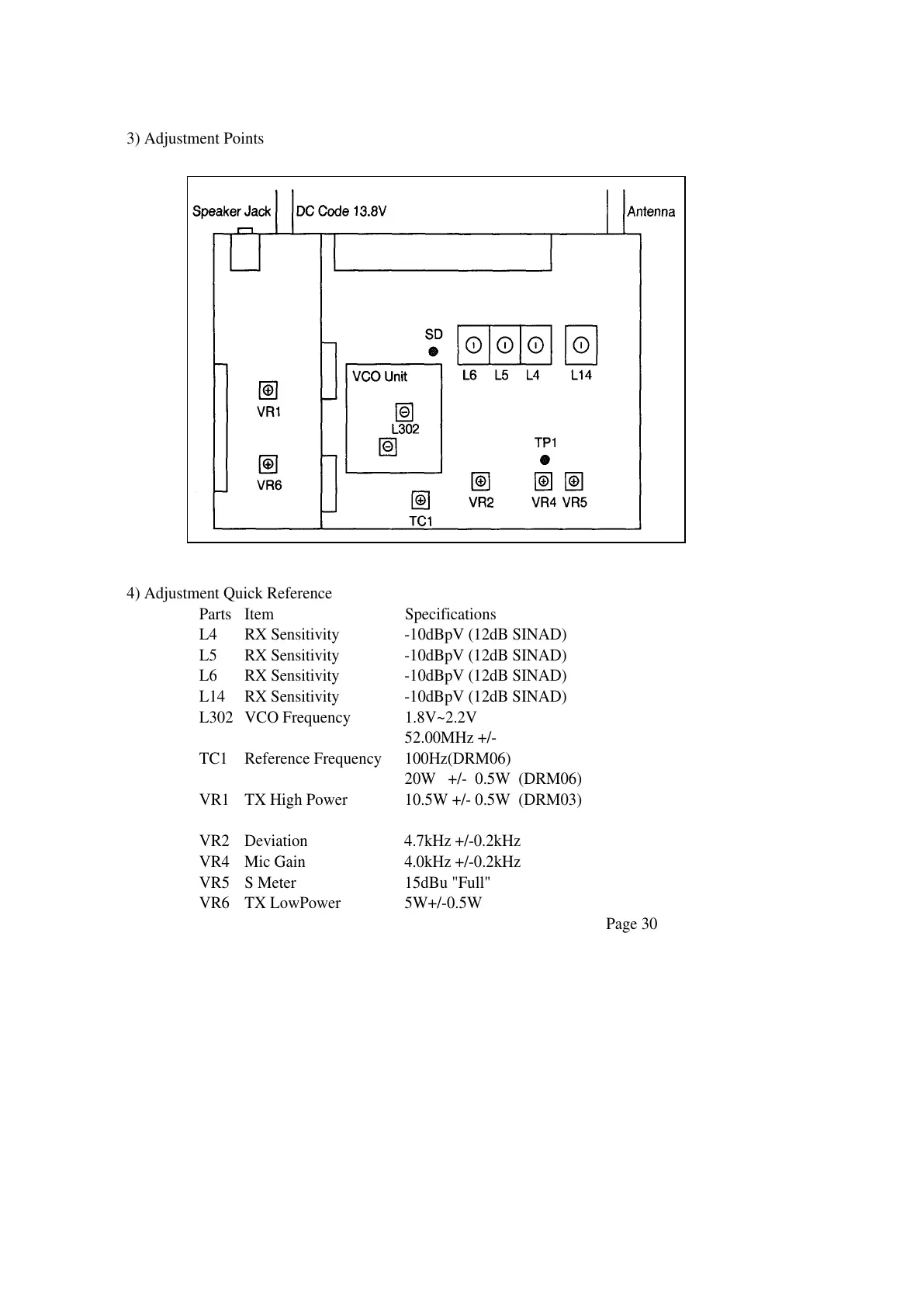

3) Adjustment Points
4) Adjustment Quick Reference
Parts Item Specifications
L4 RX Sensitivity -10dBpV (12dB SINAD)
L5 RX Sensitivity -10dBpV (12dB SINAD)
L6 RX Sensitivity -10dBpV (12dB SINAD)
L14 RX Sensitivity -10dBpV (12dB SINAD)
L302 VCO Frequency 1.8V~2.2V
TC1 Reference Frequency
52.00MHz +/-
100Hz(DRM06)
VR1 TX High Power
20W +/- 0.5W (DRM06)
10.5W +/- 0.5W (DRM03)
VR2 Deviation 4.7kHz +/-0.2kHz
VR4 Mic Gain 4.0kHz +/-0.2kHz
VR5 S Meter 15dBu "Full"
VR6 TX LowPower 5W+/-0.5W
Page 30
