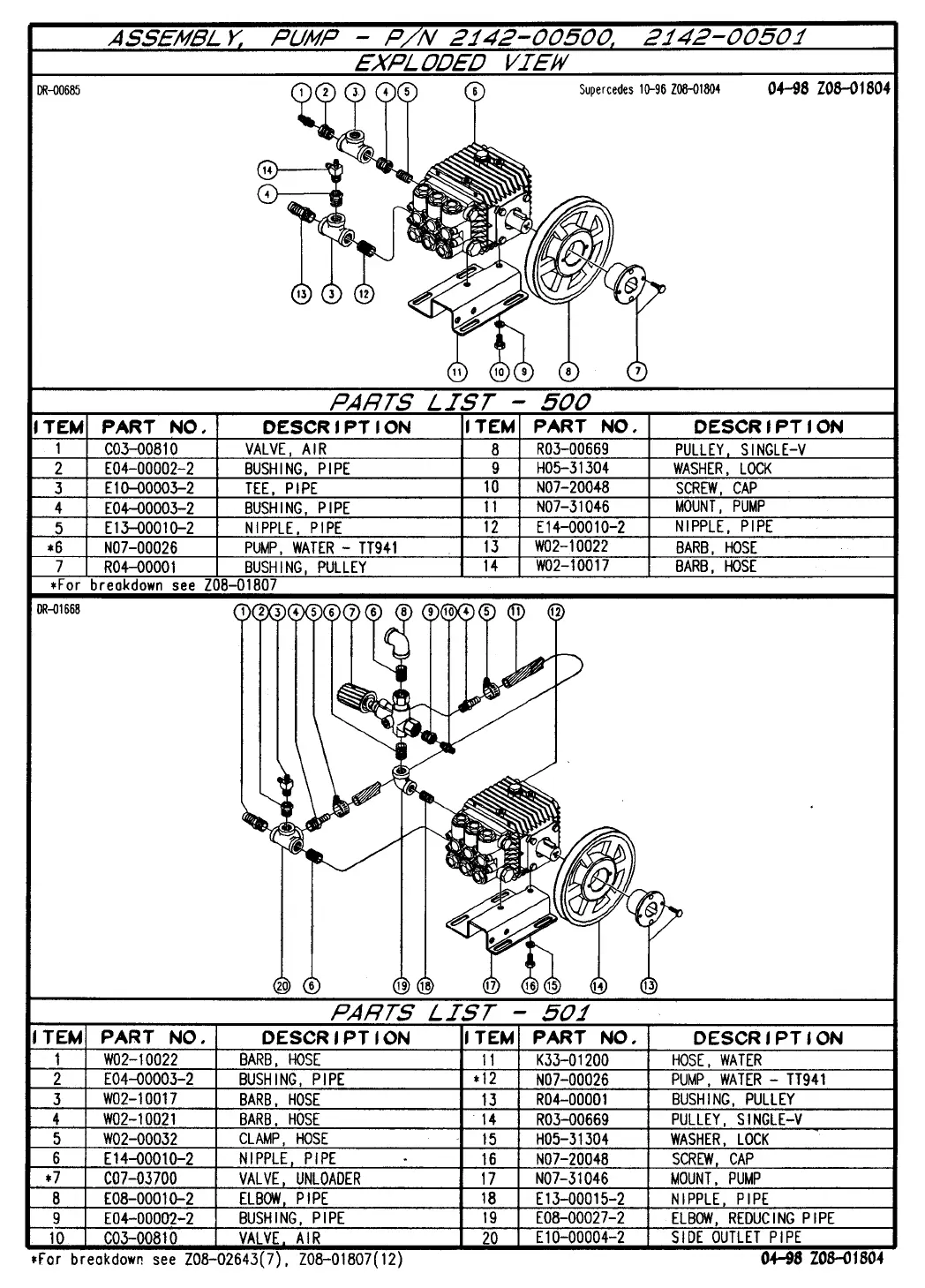

ALKOTA 2142 - Pump Assembly Details; Exploded View (List 500); Exploded View (List 501)

ASSEMBL }-: PUMP -P IV 2.142-00500 2.142-0050.1
DR--QO685 Supercedes 10-96 ZO8-QI804 04-98 ZO8-01804
PARTS LIST -500
ITEM PART NO, DESCRIPTION ITEM PART NO, DESCRIPTION
1 CO3-0081 0 VALVE, AIR 8 R03-00669 PULLEY SINGLE-V
2 E04-00002-2 BUSHING. PIPE 9 HO5-31304 WASHER, LOCK
3 E10-00003-2 TEE. PIPE 10 N07-20048 SCREW. CAP
4 EO4-00003-2 BUSHING. PIPE 11 N07-31 046 MOUNT, PUMP
5 EI3-00010-2 NIPPLE. PIPE 12 E14-o0010-2 NIPPLE. PIPE
*6 N07-00026 PUMP, WATER -TT941 13 WO2-10022 BARB, HOSE
7 R04-o0001 BUSHING, PULLEY 14 W02-10017 BARB. HOSE
*For breakdown see Z08-01807
OR-o1668
PARTS LIST -50.1
'TEM PART NO, DESCRIPTION ITEM PART NO, DESCRIPTION
1 W02-10022 BARB. HOSE 11 K33-01200 HOSE, WATER
2 E04-o0003-2 BUSHING. PIPE *12 N07-00026 PUMP. WATER -TT941
3 W02-10017 BARB. HOSE 13 R04-00001 BUSHING. PULLEY
4 W02-10021 BARB. HOSE 14 R03-o0669 PULLEY, SINGLE-V
5 W02-00032 CLAMP, HOSE 15 H05-31304 WASHER. LOCK
6 E14-o0010-2 NIPPLE PIPE 16 N07-20048 SCREW CAP
.7 C07-03700 VALVE UNLOADER 17 N07-31 046 MOUNT. PUMP
8 E08-00010-2 ELBOW PIPE 18 EI3-00015-2 NIPPLE. PIPE
9 E04-00002-2 BUSHING. PIPE 19 E08-00027-2 ELBOW, REDUCING PIPE
10 CO3-0081 0 VALVE AIR 20 E10-00004-2 SIDE OUTLET PIPE
*For breakdown see Z08-02643(7). Z08-01807(12) 0~8 ZO8-01804
