SpeedSentry Radar Speed Display - 19

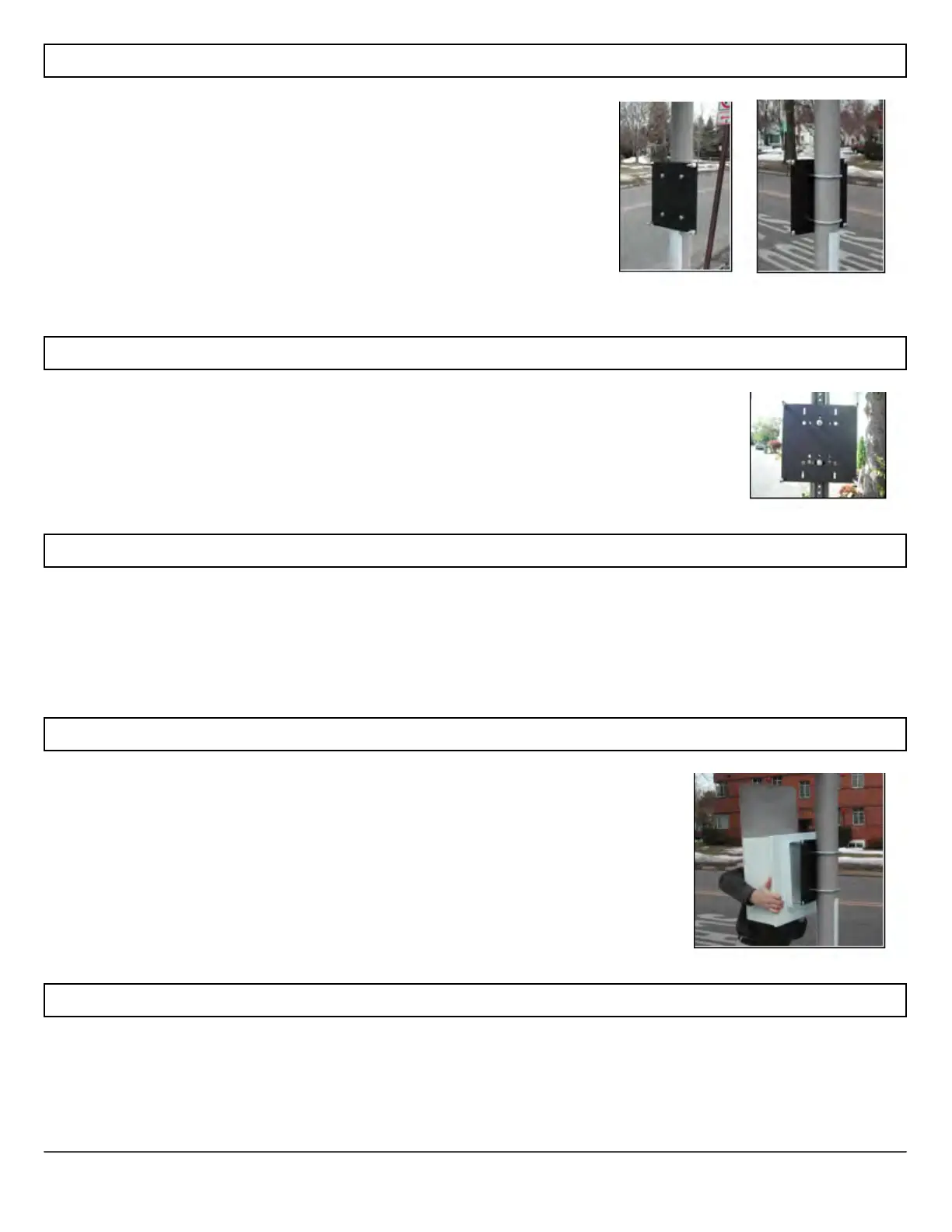

To mount the bracket to an aluminum pole, you need 2 U-bolts with
nuts and the mounting plate. Remove the nuts from the U-bolts.
Place the mounting plate against the pole so the protruding screws
point toward traffic. Place one U-bolt behind the pole and thread the
ends through the holes in the plate. Use the nuts to secure the bolt in
place. Repeat with the second U-bolt.
NOTE: Do not over tighten the mounting bolts because it bends the
plate and you will not be able to mount the unit. If the plate bends,
remove it from the pole, turn it around, and tighten the U-bolts to
straighten the plate. Then reverse and reinstall.
Attach to U-Channel or Square Pole
To mount the bracket to a U-channel pole, you need 2 carriage bolts, washers, nuts,
and mounting plate. Place the mounting plate against the pole so the protruding
screws point toward traffic. Thread the bolt through the hole in the pole and through the
plate. Secure with washer and nut. Repeat with the 2nd bolt. Using the arced slot allows
adjustment to keep the Speedsentry parallel to the road.
The SPEEDsentry comes with hardware to install the unit to a 4” aluminum pole and a U-channel pole. The
aluminum mounting bracket can be drilled with more holes to accommodate your specific hardware. If you
use hardware other than what is provided, make sure its installed length extends no more than 1” from the
surface of the mounting bracket on the SPEEDsentry mounting side. Otherwise, the hardware interferes with
hanging the unit on the mounting plate.
Open the unit and place the four mounting wing nuts and washer from the
mounting plate inside on the bottom so they are accessible, and close the unit.
With the display facing traffic, hoist the unit to the mounting plate and align the
holes with the bolts. Settle the unit onto the screws and against the plate. While
holding the unit against the plate, open the door. Thread a wing nut and
washer onto each screw and tighten to secure.
NOTE: Never install the battery before hanging the unit.
The SPEEDsentry only mounts on the ATS-5 Trailer with the bumper pole mount option for the Speed
Dependent Messaging system.
