34 DR66 & DR128 Installer User Guide

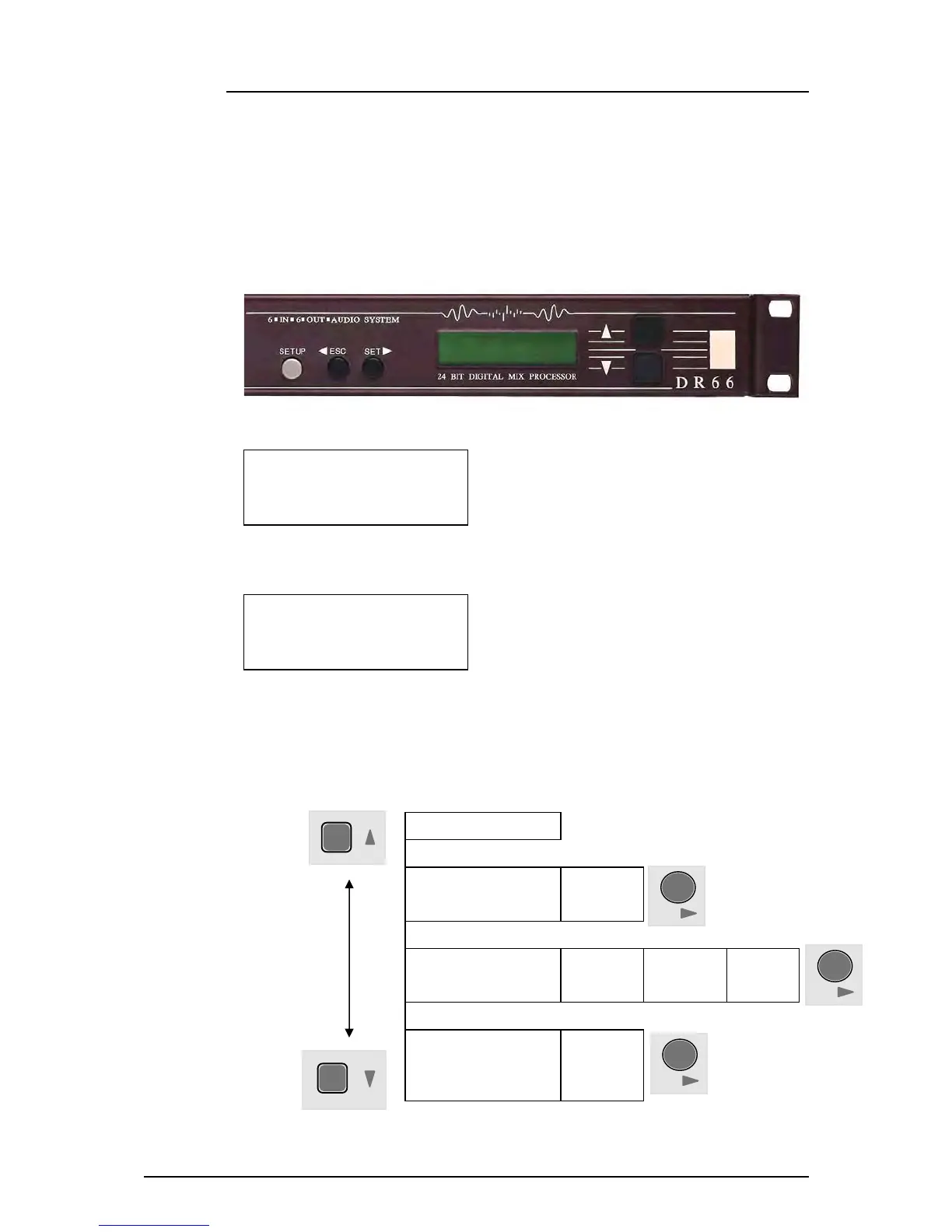

The Setup Keys
The front panel setup keys SETUP, ◄ESC, and SET► work with the ▲ and ▼ keys to navigate
and select the menu parameters available. With the increased functionality of Version 2 DR
software and more flexible WinDR PC configuration these setup functions have been reduced to
just LCD contrast, change the clock or change the day of week. This prevents the day-to-day
operator tampering with the system settings.
Note that the earlier Version 1 DR software allowed more parameter control using the front panel
setup keys with associated password protection. This is referred to in the V1.83 appendix.
View Version Number From the normal screen
press and hold the ◄ESC key to view the current
operating code version number. It is important that
the WinDR version you run on the PC is the same
number as this.
Enter the Setup Menu Press and hold the SETUP
key for a few seconds to enter the setup menu.
Release the key. The first menu item is displayed.
Press the ▲ and ▼ keys to scroll through the
available items. Press ►SET to enter the item you
wish to adjust. Press ◄ESC to exit the item,
working back through the menu structure until you
return to normal operation. Navigate the menus in
this way.
Menu Map
Menu Item
1 LCD Contrast
Contrast
[01 to 16]
2 Clock
Hours Minutes Seconds
[00 to 23]] [00 to 59] [00 to 59]
3 Day of Week
Day
[Monday to
Sunday]
DR Version 2.00
*** SETUP ***
*1 LCD Contrast
To Next Page
