The Range
• ML5000-32 32 mono, 4 stereo inputs
• ML5000-40 40 mono, 4 stereo inputs
• ML5000-48 48 mono, 4 stereo inputs
• ML5000-32B 28 mono, 8 stereo inputs
• ML5000-40B 36 mono, 8 stereo inputs
• ML5000-48B 44 mono, 8 stereo inputs
• ML5000-24SC 24 mono input sidecar
• MPS14 2U power supply unit
• 002-583 2.8 metre DC power lead
• 002-584 0.5 metre DC combiner lead
• AP3736 ML5000 Console User Guide
• AP4124 ML5000 Sidecar User Guide
• AP3898 MPS14 User Guide
• AP3737 ML5000 Service Manual
• AL4061 Gooseneck lamp 18”

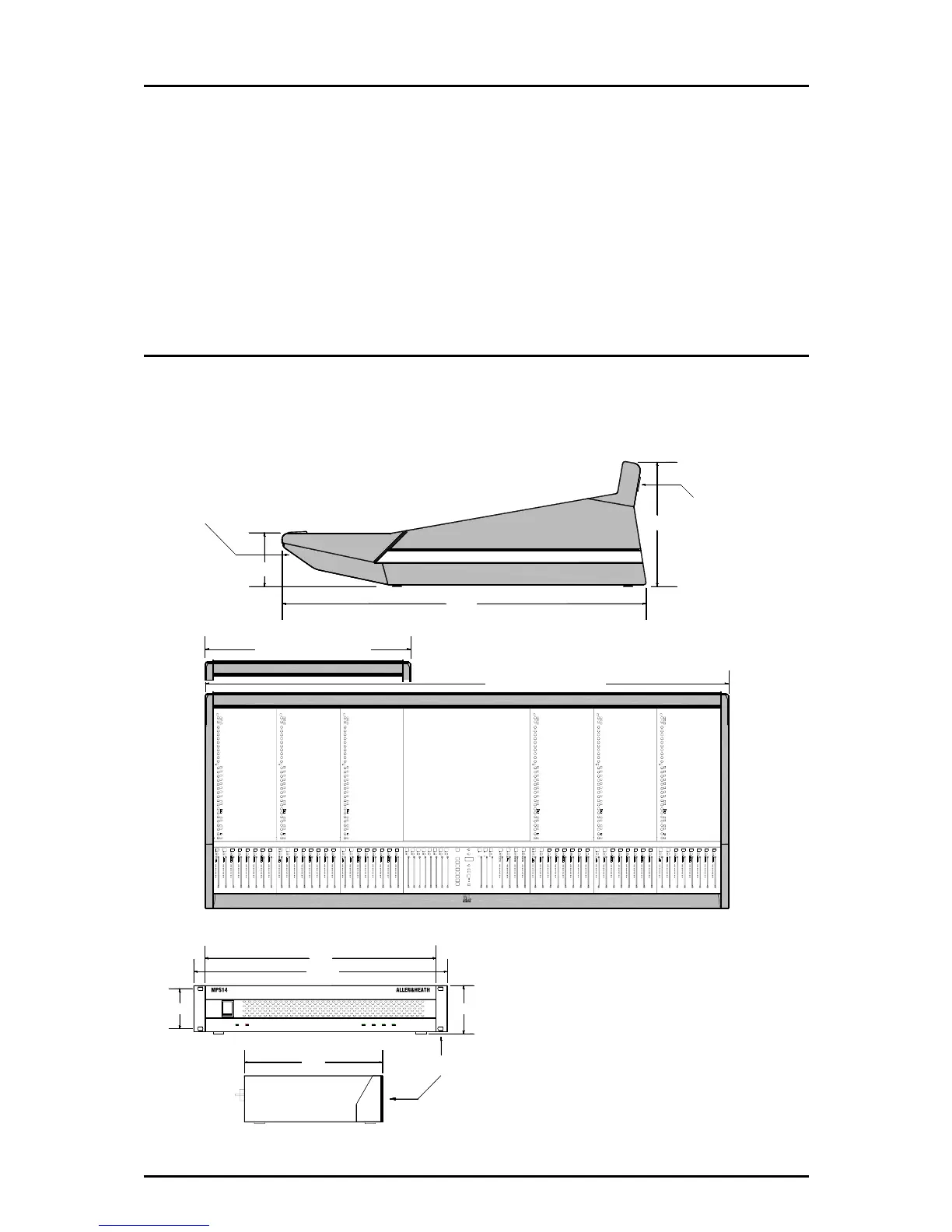

Installation Details
Weights 32 Channel 84 kg (185 lbs)
40 Channel 96 kg (211 lbs)
48 Channel 110 kg (242 lbs)
24 Channel sidecar 45 kg (95 lbs)
MPS14 psu 2.5 kg (5 lbs)
130
872
298
HEADPHONES SOCKETS
UNDER ARMREST
LAMP SOCKETS
ML5000-48 = 2106
ML5000-40 = 1851
ML5000-32 = 1596
ML5000-24SC = 831
90
FC 76.2
482.6
440
263
REMOVABLE RACK EARS
2U HEIGHT
Refer to the power supply user guide
for safety and installation instructions.
Heed all warnings printed in the user
guide and on the power unit.
Refer to the sidecar user guide for
instructions on connecting the sidecar
expander to the console.
