ALLEN & HEATH ML5000 - Quick Start Sheet

8 ML5000 User Guide

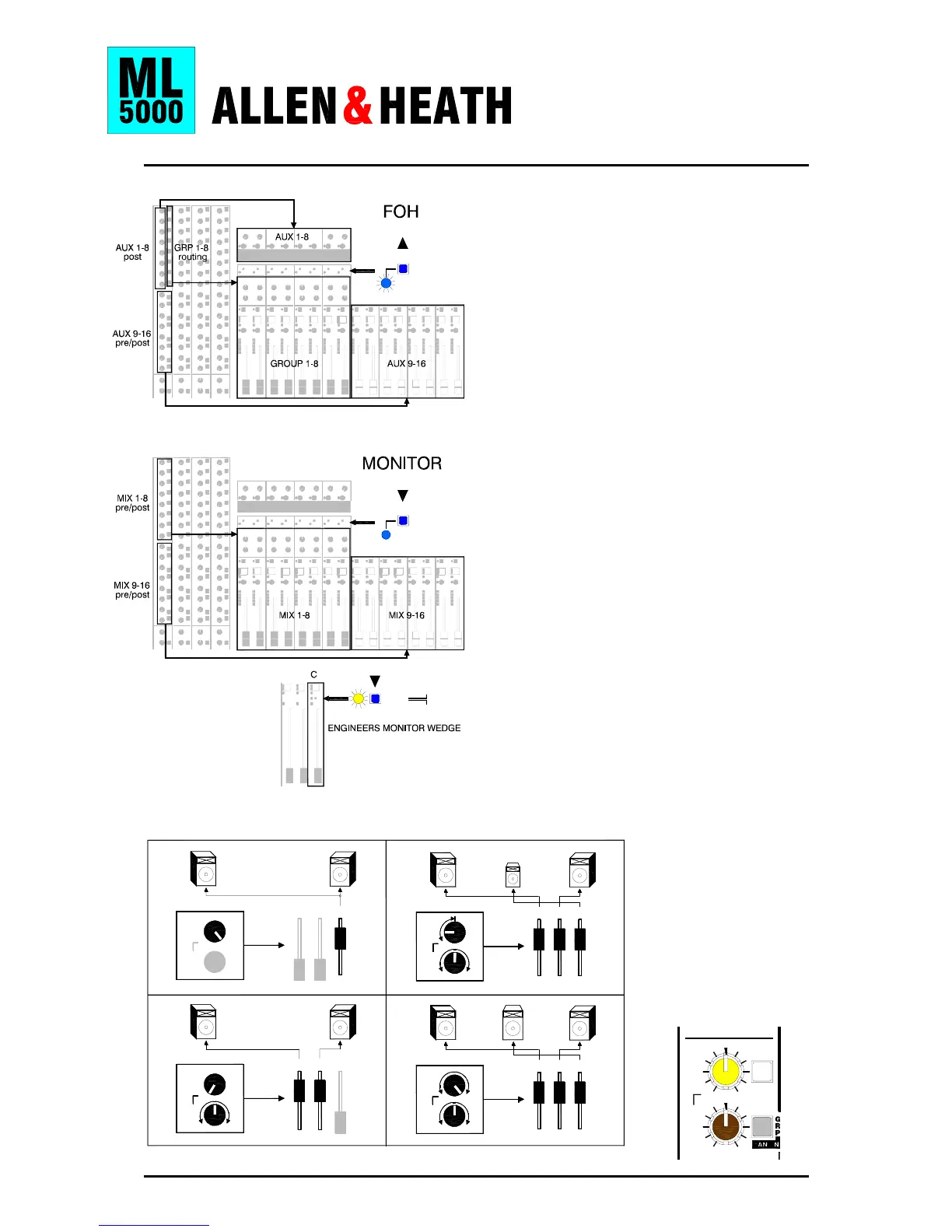

QUICK START SHEET
Configure the Mode Switches :
Use a pen or pointed object to select the underpanel
mode switches.
FRONT-OF-HOUSE
AUX 1-8 = Post-fade for effects. Rotary masters.
AUX 9-16 = Switchable pre or post-fade and mono
or stereo in pairs. Fader masters with inserts.
GROUP 1-8 = Audio groups with individual routing
switches. Switchable pre or post-pan for mono or
stereo groups. Fader masters with subgrouping.
MONITOR
AUX 1-8 = MIX 1-8 individually switchable pre or
post-fade. Fader masters with inserts.
AUX 9-16 = MIX 9-16 switchable pre or post-fade
and mono or stereo in pairs. Fader masters with
inserts.
MAIN C OUT = Engineers wedge monitor.
DUAL MODE
Set the mode switches to configure fader masters 1-
8 in any combination of audio groups and aux
sends.
#
AUX
mode
GRP
AUX
mode
GRP
up
down
WEDGE
mode
MONITOR
C
down
Using LCRplus™
PAN and BLEND = Two
controls adjust the balance
between L, R and C.
MAIN MIX = Routes the
channel to the main L,R,C
outputs.
GRP PAN ON = Press for
stereo (follow pan) groups.
MONO PA
PAN
BLEND
CLR
RL
LRC
LRC
PAN
BLEND
CLR
RL
LRC
PAN
BLEND
CLR
RL
LRC
PAN
BLEND
RL
CLR
STEREO+FILL
STEREO PA LCR
LR C
=
LR
=
PAN
MAIN
MIX
LCR
BLEND
+
Copy this sheet to keep with the console for guest user reference.
