ALLEN & HEATH ML5000 - Page 46

Drawing Contents
System Block Diagram................D1
Mono Input Channel.................D2-5
Mono Input Connector..............D6-7
4M / 4S Connector .................D8-12
Mono Input Fader.................D13-14
Mono Input Fader Slave.......D15-16
Stereo Input Channel ...........D17-20
Stereo Input Fader Slave .....D21-22
Stereo/LRC Connector.........D23-24
Master Connector.................D25-26
Master Distribution ...............D27-29
Group Sub 1.........................D30-31
Group Sub 2.........................D32-33
Group 2-8 Master .................D34-36
Aux 9/10 Master ...................D37-40
Aux 11/12 Master .................D41-45
Aux 13/14 Master .................D46-50
Aux 15/16 Master .................D51-54
LRC Mix Master....................D55-58
Aux Master Slave .................D59-60
VCA Master Fader Slave......D61-62
Master Fader........................D63-64
Meter 1-8 / 9-16....................D65-67
Meter Master ........................D68-70
Meter LED Bar .....................D71-72
MIDI / Power ........................D73-74
CPU......................................D75-78
Mute Group ..........................D79-80
Control Panel .......................D81-82
MPS14 Power Supply ..........D83-84
Sys-Link Input ......................D85-86
Sys-Link Output....................D87-89

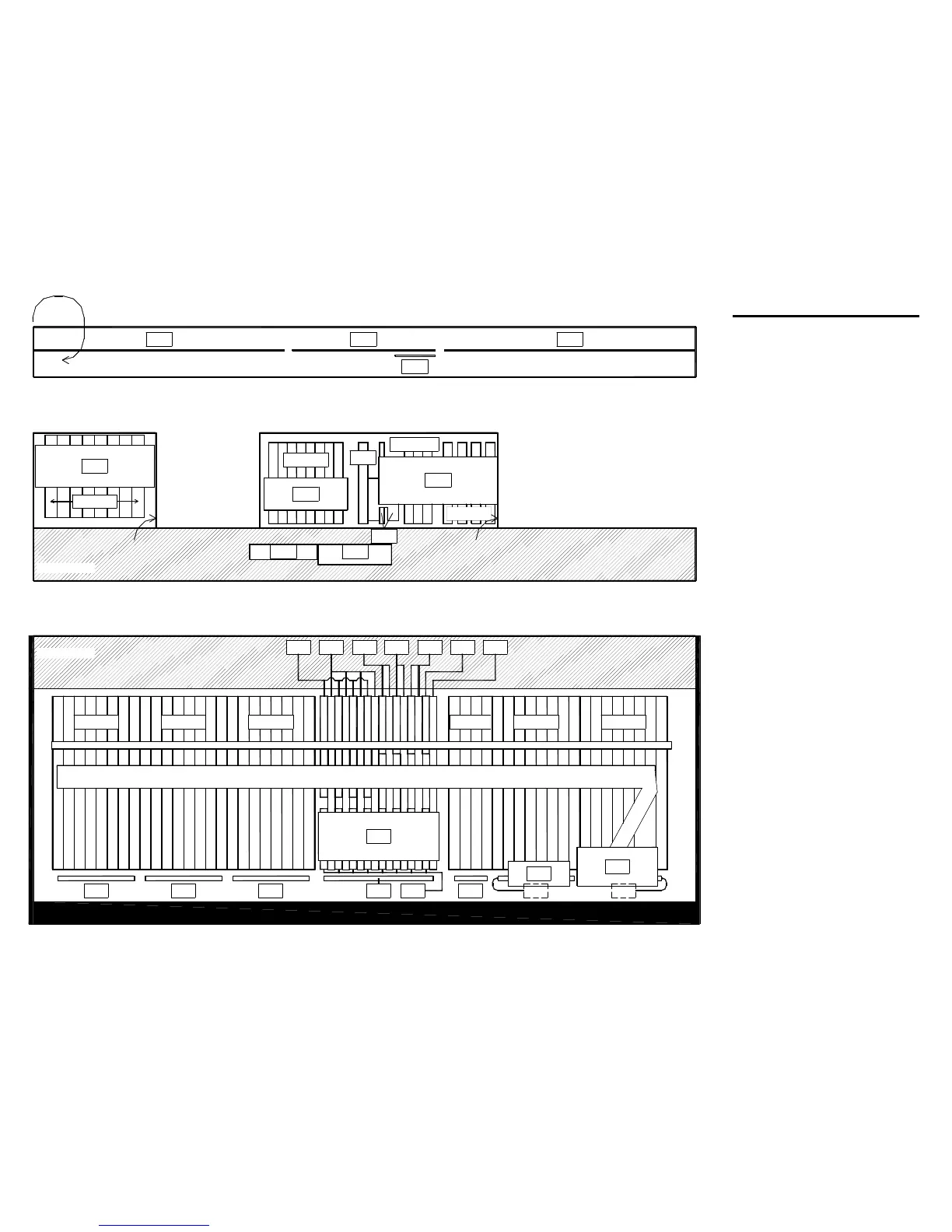

METERPOD INTERNAL VIEW
D65
METER PANEL FOLDED FORWARD
D68
D71
D65
D59 D75
D2 x 8 D2 x 8 D2 x 8 D2 x 8 D2 x 8
D27
D6 D6 D6 D6D6
D85
D73
D23D25
D17 x 4
D30 D34 D37 D41 D46 D55
D32
FADER BAY
BASE REMOVED, MIXER ON ITS BACKFRONT
COPPER EARTH BUS
D51
FADER BAY
D15
D13 x 8
MASTER FADER INTERNAL VIEW
FADER PANEL
HINGED UP
MONO INPUT FADER INTERNAL VIEW
FADER PANEL
HINGED UP
D63 x 8
D61
D79
D63 x 3
D21
D13 x 4
D81
VCA Master
