7.2 The Sel screens – Processing and Routing

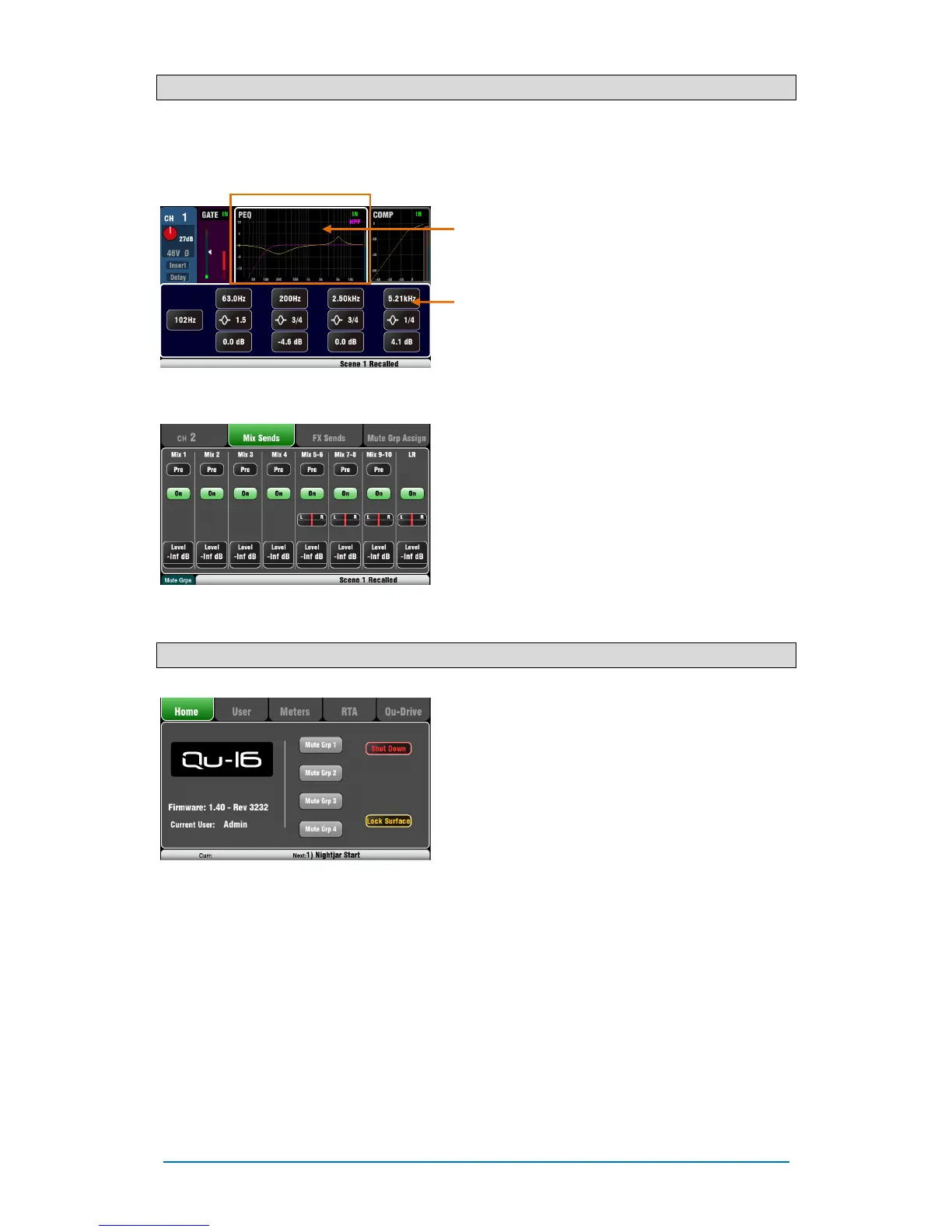

Processing Screen – When selected this
screen presents the processing including Preamp,
Gate, EQ, Compressor for the channel or master
currently selected using its strip Sel key.
Touch the top part of the screen to select the
processing block you wish to view or adjust, for
example Preamp or PEQ. This section is known as the
TouchChannel.
The lower part of the screen changes to provide
access to the related parameters and additional
related controls. Touch a parameter box and turn the
screen rotary to change its value.
The physical controls in the SuperStrip and the touch
controls in this screen provide quick access to live
mixing functions.
Routing Screen – When selected this screen lets
you access the assignment and routing for the channel
or master currently selected using its strip Sel key.
This lets you work with routing to all mixes from one
channel. To work with all channels to one mix use the
Master Strip Mix keys and sends on faders.
The Fn key provides access to the Mute Group
masters and assignments.
7.3 Home Screen
Press the Home key. Pressing it again restores the last
selected Sel screen. The Home tab presents:
Current Firmware version
Current User
The 4 Mute Group master buttons
Shut Down button to safely shut down the mixer
before turning power off
Lock Surface to protect settings when the mixer
is left unattended
