ALLEN & HEATH Qu-24 User Manual

Qu Mixer User Guide 56 AP9372 iss.4

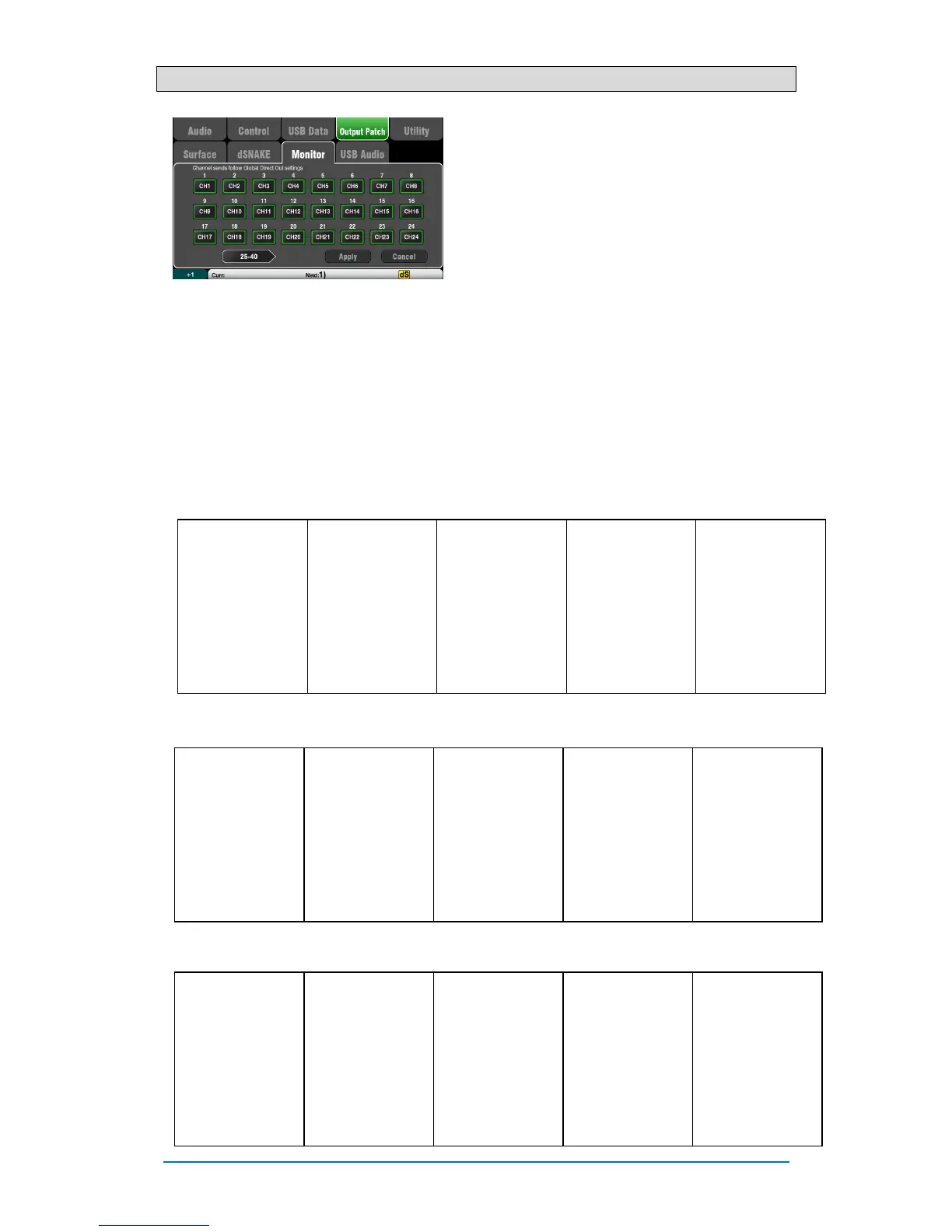

8.13 Output Patch Setup - Monitor
This screen presents the patching of the dSNAKE
remote monitor audio outputs. This allows the Qu
mixer to work with the Allen & Heath ME Personal
Monitor mixing system.
A ME-1 mixer or ME-U distribution hub can be plugged
into any of these sockets:
 Qu rear panel dSNAKE port
 AR2412 MONITOR port
 AR2412 EXPANDER port
 AB168 EXPANDER port
There are 40 Monitor output channels. These can be
patched from any input channels, FX, Groups Mixes
and PAFL.
Mono (CH) and stereo (ST) channel sends follow the
Global Direct Output settings. Mixes are post-
processing, post-mute, post-fader.
Note - Set the Global Direct Out source using a
channel Routing screen. Set pre-fade, post-mute
when working with the ME Personal Monitor System.
Ch Qu out
1 CH1
2 CH2
3 CH3
4 CH4
5 CH5
6 CH6
7 CH7
8 CH8
Ch Qu out
9 CH9
10 CH10
11 CH11
12 CH12
13 CH13
14 CH14
15 CH15
16 CH16
Ch Qu out
17 ST1 L
18 ST1 R
19 ST2 L
20 ST2 R
21 ST3 L
22 ST3 R
23 Main L
24 Main R
Ch Qu out
25 FX1ret L
26 FX1ret R
27 FX2ret L
28 FX2ret R
29 FX3ret L
30 FX3ret R
31 Mix1
32 Mix2
Ch Qu out
33 Mix3
34 Mix4
35 Mix5 L
36 Mix6 R
37 Mix7 L
38 Mix8 R
39 Mix9 L
40 Mix10 R
Qu-16 Reset Default Monitor Patch
Ch Qu out
1 CH1
2 CH2
3 CH3
4 CH4
5 CH5
6 CH6
7 CH7
8 CH8
Ch Qu out
9 CH9
10 CH10
11 CH11
12 CH12
13 CH13
14 CH14
15 CH15
16 CH16
Ch Qu out
17 CH17
18 CH18
19 CH19
20 CH20
21 CH21
22 CH22
23 CH23
24 CH24
Ch Qu out
25 ST1 L
26 ST1 R
27 ST2 L
28 ST2 R
29 ST3 L
30 ST3 R
31 FX1ret L
32 FX1ret R
Ch Qu out
33 Grp1 L
34 Grp2 R
35 Grp3 L
36 Grp4 R
37 Mix7 L
38 Mix8 R
39 Mix9 L
40 Mix10 R
Qu-24 Reset Default Monitor Patch
Ch Qu out
1 CH1
2 CH2
3 CH3
4 CH4
5 CH5
6 CH6
7 CH7
8 CH8
Ch Qu out
9 CH9
10 CH10
11 CH11
12 CH12
13 CH13
14 CH14
15 CH15
16 CH16
Ch Qu out
17 CH17
18 CH18
19 CH19
20 CH20
21 CH21
22 CH22
23 CH23
24 CH24
Ch Qu out
25 CH25
26 CH26
27 CH27
28 CH28
29 CH29
30 CH30
31 CH31
32 CH32
Ch Qu out
33 Grp1 L
34 Grp2 R
35 Grp3 L
36 Grp4 R
37 Mix7 L
38 Mix8 R
39 Mix9 L
40 Mix10 R
Qu-32 Reset Default Monitor Patch

ALLEN & HEATH Qu-24 Specifications

General

Type	Digital Mixer
Channels	24
Faders	25
Mix Busses	10
FX Engines	4
USB Audio Interface	32x32
Touchscreen	Yes
Frequency Response	20Hz to 20kHz (+0/-0.5dB)
Sampling Rate	48kHz
EQ Bands	4-band Parametric
Computer Connectivity	USB, Ethernet
USB	Yes
Word Clock	No
Dynamic Processing	Gate, Compressor, Limiter
Built-in WiFi	No
Power Supply	Internal
Inputs - Mic Preamps	24
Outputs - Main	2
Outputs - Aux	10
Headphones	1/4-inch stereo
I/O Expansion Slots	dSnake
