Using a SEL key to access Input Channel Parameters
PARAMETER CONTROLS - Press an IP (Input) channel SEL
key to access the parameters for that channel using the analogue
style controls in the processing block to the left of the screen. Every
input channel has preamp control, a HPF, gate, PEQ, compressor,
limiter/de-esser, delay and insert capability.
PROCESING VIEW - With all TouchScreen keys off, the
screen top view shows ‘thumbnails’ for each signal processor within
the channel. Touch the screen or press a processing block SEL key
to open the associated screen view. This gives you an alternative
graphical display and control of the signal processing, for example an
EQ or dynamics curve. Setup functions such as Input socket patch,
Insert, Delay, Name and Colour are accessed using the screen only.
Touch the Return button at the top right of the screen to return to the
top view. Each processing section includes a library for storing and
naming your favourite settings. These can be recalled into other
channels and transferred to another iLive or PC via USB key from
within the UTILITY/Configuration page.
ROUTING VIEW - With TouchScreen ROUTING page on, the
assignments and send levels for the selected channel are shown.
This gives you an alternative for controlling the mix using the screen
instead of the Surface MIX keys.
Note: Unlike several other digital mixing systems, the screen is
not an essential part of live mixing with iLive. Channel parameters
are adjusted using the analogue style rotary controls, switches and
displays within the processing block. Mix assignments, pre/post
settings, fader and send levels are adjusted using the Surface fader
control strips.
Insert bypass
Preamp
Gate
CH fader, pan, mute
Main mix assign
Group assign
Aux sends
FX sends
DCA assign
Direct Out level
Compressor
Limiter / De-esser
Name and Colour Insert
Delay HPF
MUTE
SEL
MIXMIX
PAFL

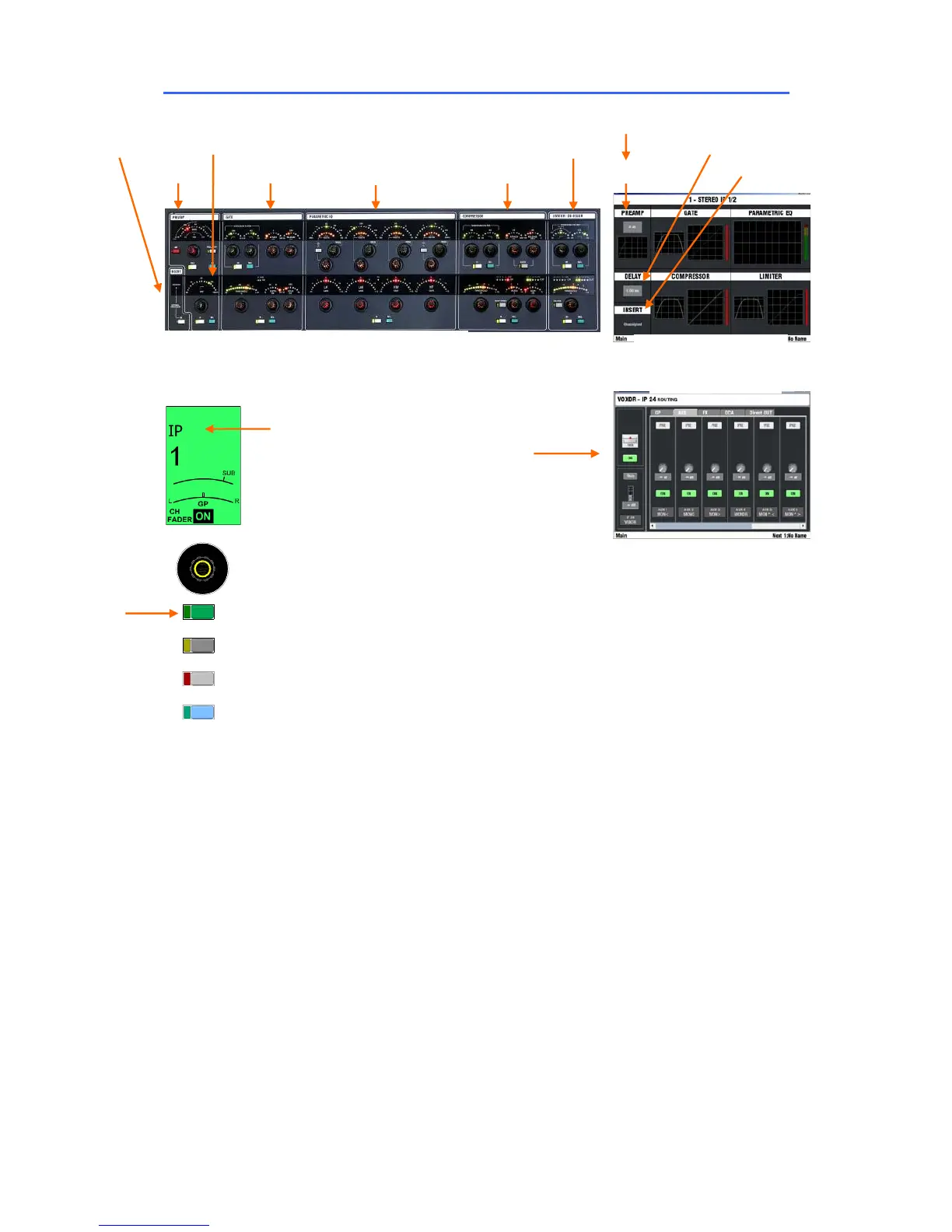

PROCESSING VIEW
