ALLEN&HEATH iLive Reference Guide AP6526 iss.3 27
Using a SEL key to access Mix Master Parameters
PARAMETER CONTROLS - Press a GP, AUX, FX, MAIN or
MTX (Mix) master SEL key to access the parameters for that master
using the analogue style controls in the processing block to the left of
the screen. Every mix master has both a PEQ and a third octave GEQ
as well as compressor, limiter, delay, external input and insert
capability.
PROCESING VIEW - With all TouchScreen keys off, the
screen top view shows ‘thumbnails’ for each signal processor within
the master. Touch the screen or press a processing block SEL key to
open the associated screen view. This gives you an alternative
graphical display and control of the signal processing, for example an
EQ or dynamics curve. Setup functions such as External input
source, Insert, Delay, Name and Colour are accessed using the
screen only. Touch the Return button at the top right of the screen to
return to the top view. Each processing section includes a library for
storing and naming your favourite settings. These can be recalled
into other channels and transferred to another iLive or PC via USB key
from within the UTILITY / Configuration page.
ROUTING VIEW - With TouchScreen ROUTING page on, the
assignments and send levels feeding the selected master are shown.
This gives you an alternative for controlling the mix using the screen
instead of the Surface MIX keys.
Note: Unlike several other digital mixing systems, the screen is
not an essential part of live mixing with iLive. Processing
parameters are adjusted using the analogue style rotary controls,
switches and displays within the processing block. Mix assignments,
pre/post settings, fader and send levels are adjusted using the
Surface fader control strips.
Name and Colour
Insert bypass
Ext Input Preamp
Master fader, pan, mute
Main mix assign
CH Aux sends
CH pre/post
FX sends
DCA assign
Compressor
Limiter
Insert
Delay
MUTE
SEL
MIXMIX
PAFL

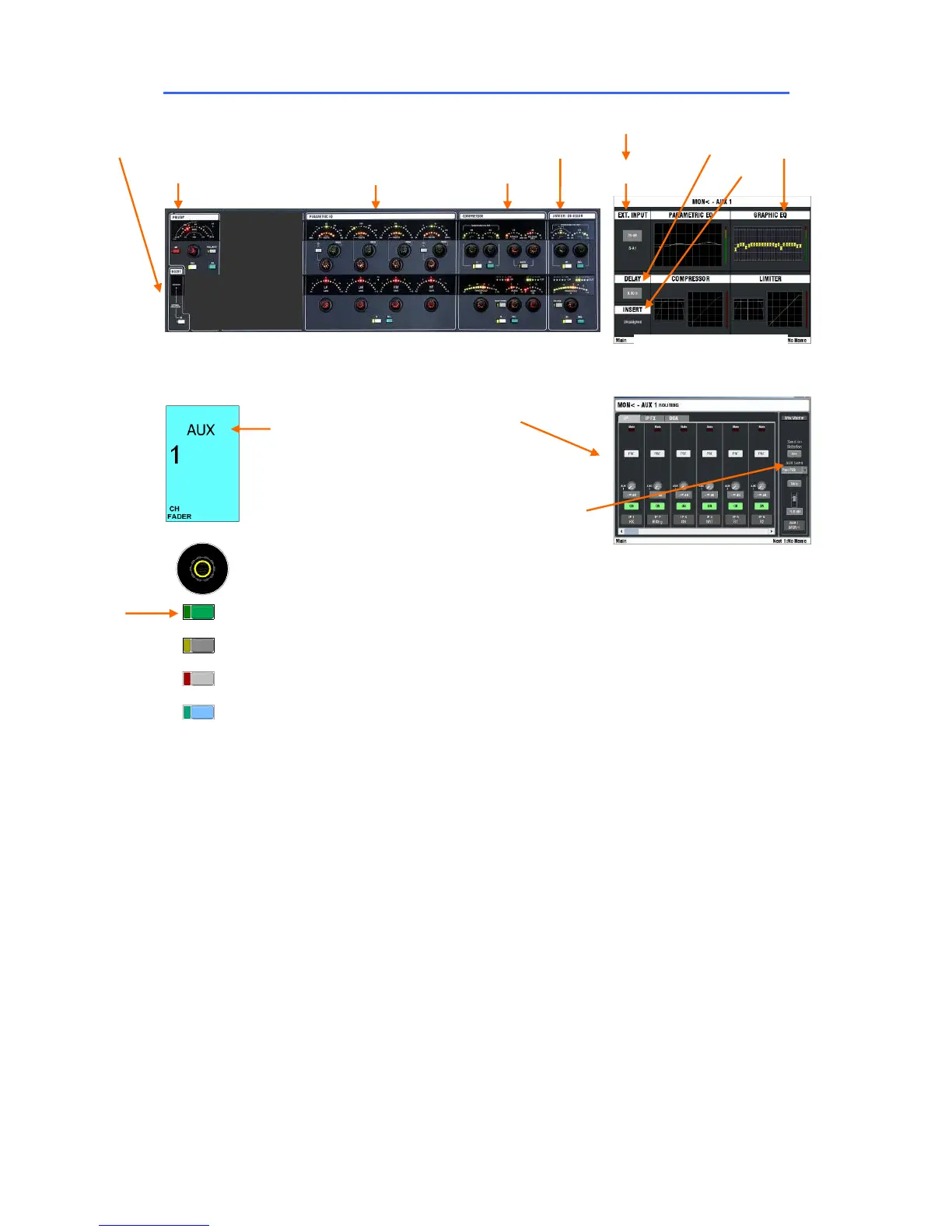

PROCESSING VIEW
ROUTING VIEW
CHANNEL PARAMETER CONTROLS
PEQ
Mono,
stereo
Group
Aux
Main mix
Matrix
GEQ
Ext Input preamp
Sends on faders or rotaries
CH send source
