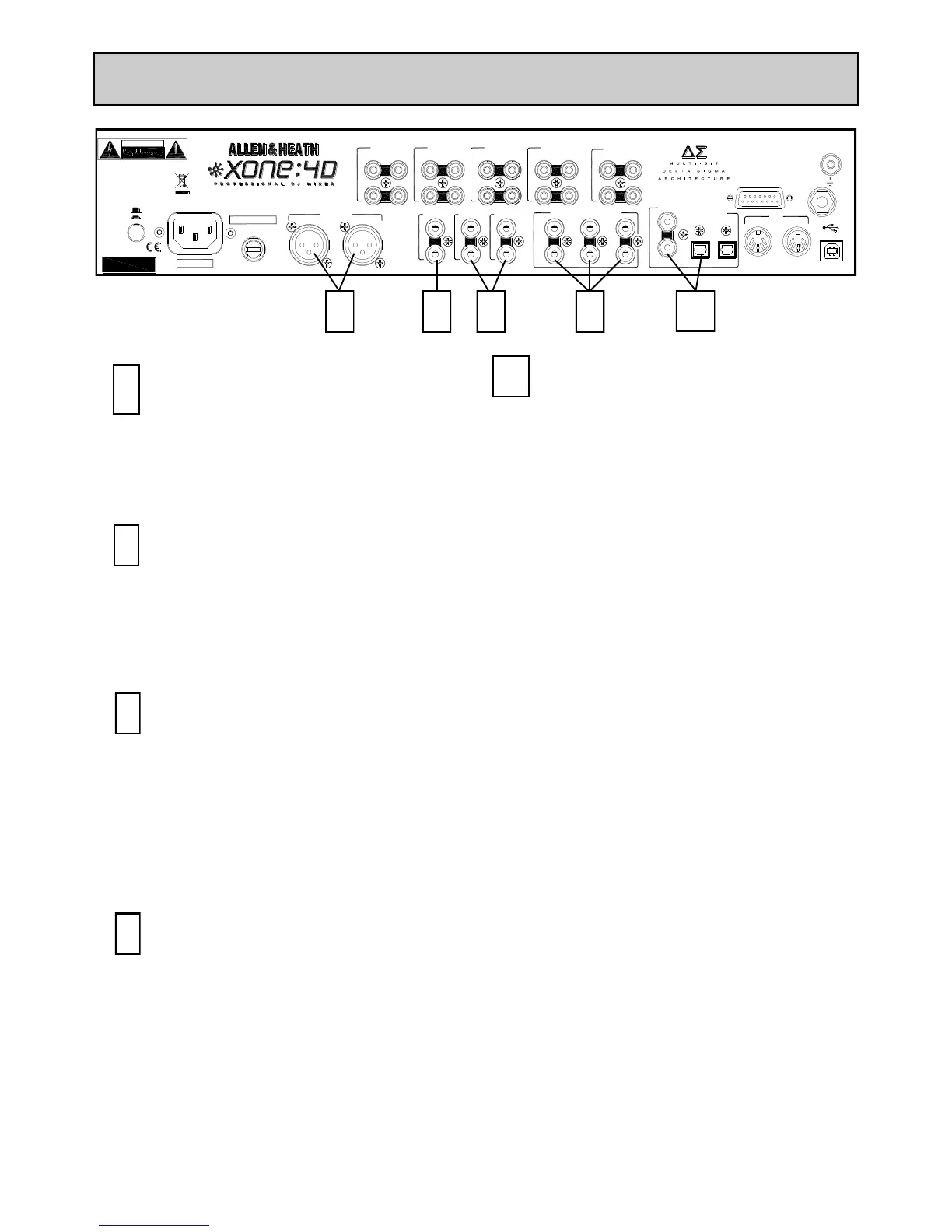

FX1-2 Send Output
RCA phono. Depending on the
application of the FX mix, these stereo
line level outputs can be used to feed
samplers and other effects units, an
additional monitor, zone or recorder.
The FX2 Send RCA connectors can also
be switched on the front panel to provide
a record output (see page 26).
8
Soundcard Outputs
RCA phono.
Outputs from the internal soundcard.
These are always available irrespective of
the source selection on the stereo
channels. These outputs could be fed to
an additional mixer or processor before
being brought back into the mix.
Depending on the soundcard operating
mode, signals are available on sockets 1-6
or 1-4.
9
SPDIF DIGITAL INPUTS
AND OUTPUTS
SPDIF is a popular digital audio interfacing
standard for connecting two channel
(stereo) audio using a single COAX (RCA
phono socket) or optical fibre (Toslink
socket) cable.
For reliable connection use a 75 ohm
COAX cable intended for this function.
Avoid the use of cheap audio cables. Use
purpose made optical fibre cables for
connection using the Toslink port. Make
sure the blanking plugs provided are fitted
to any unused Toslink sockets.
The SPDIF inputs and outputs are available
only when your computer is connected via
the USB port. The computer provides the
clocks needed for the soundcard to
function.
Sample rates ranging from 44.1 to 96kHz
are supported.
Mix Output
Balanced XLR. This is the main
output that feeds the house PA
system. Plug into the house
processor/amplifier system using
balanced cables. Use balanced
cables and equipment.
6
Monitor Output
RCA phono. Provides a line level
stereo feed to the DJ local monitor
amplifier system. It is not affected
by the master fader or cue system.
Can also be used as an alternative
zone or record output.
7
10
To Next Page
