Allen & Heath 33 XONE:4D User Guide

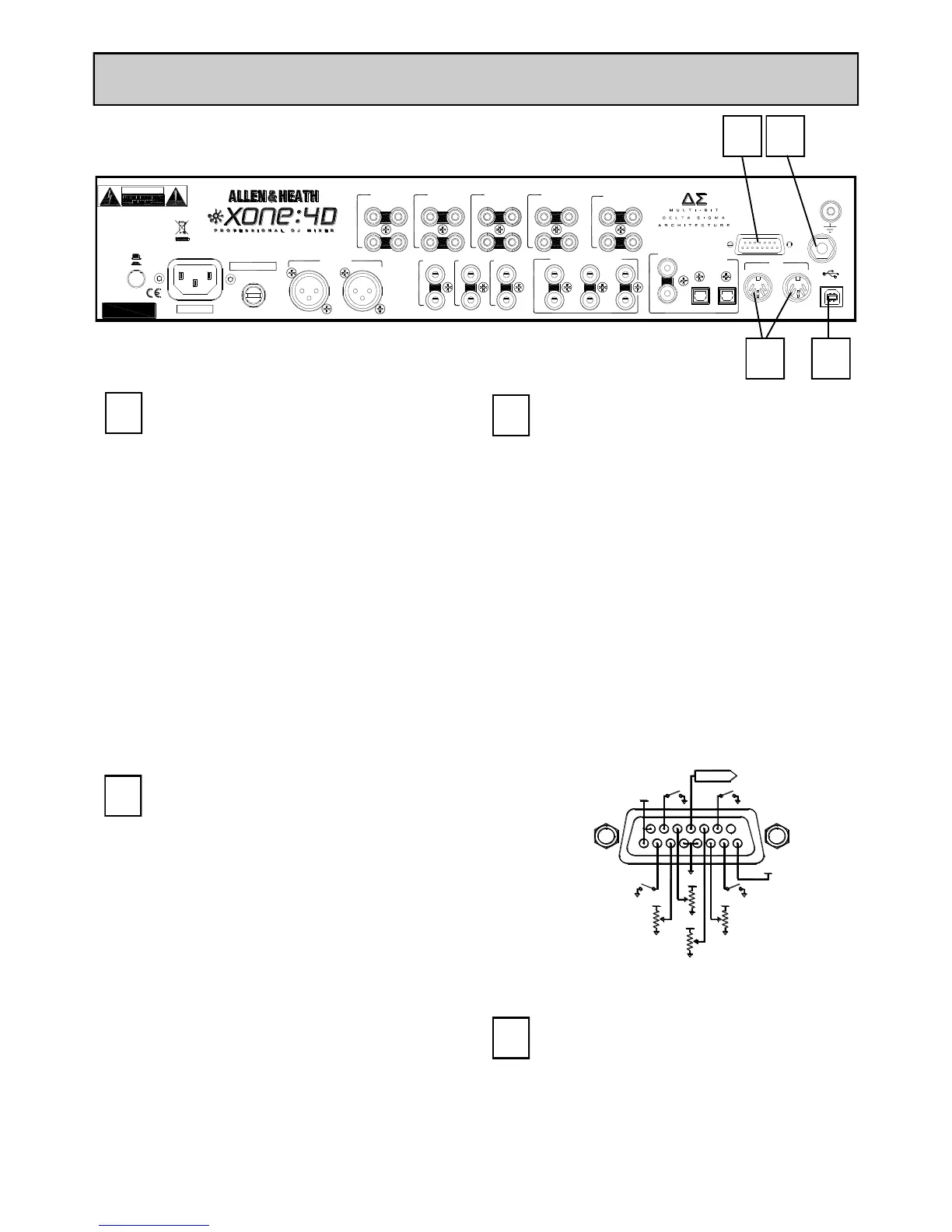

REAR CONNECTORS
11
12
13 14
MIDI Input / Output
5 pin DIN socket.
Connect to either a MIDI
interface or directly to MIDI
compatible equipment using a
standard 5 pin DIN (MIDI) lead.
The MIDI output socket data
duplicates what is sent via the USB
connection to the PC, and to the
gameport.
MIDI in can be used to remotely
control the status of all switches
that have associated LED light rings
(with the exception of the BPM,
LFO and Stop/Start.
You can connect the MIDI OUT of
one Xone:4D to the MIDI IN of
another.
USB Connector
USB (Universal Serial Bus) V2.0 is
an external peripheral interface
standard for data transmission.
Xone:4D USB works at 480Mbps
and provides up to 20
uncompressed audio channels.
The USB connection is used to
send/receive audio and MIDI data
between the Xone:4D and the
connected computer.
Use a standard USB type A to B
lead to connect to your computer.
This is supplied with the Xone:4D.
Gameport Connector
The gameport connector (15pin D-type)
lets you add additional controllers such as
an analogue joystick, or a third MIDI
output socket using a standard gameport
to MIDI adapter.
Note: this port has no MIDI input
connection.
This interface will convert the movement
of a connected joystick into MIDI CC and
Note information; it cannot be used to
control PC games, so don’t try it with
your latest flight sim…..
It is also possible to build a custom
interface using general purpose switches
and potentiometers. We recommend 10k
or 20k ohm linear law pots. A simple
schematic is shown here.
13
12
Footswitch Connector
This 1/4” TRS socket is used to connect a
footswitch or expression pedal as an
additional MIDI controller. Most standard
foot pedals should be satisfactory, for
example, the Roland EV-5.
14
11
+ 5V
+ 5V+ 5V
+ 5V
+ 5V
MIDI OUT 2
+ 5V
9 10 11 12 13 14 15
1 2 3 4 5 6 7 8
NC
OUTIN
FX2 SEND
WARNING: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE
REPLACE FUSE WITH SAME TYPE AND RATING.
STRICTEMENT IDENTIQUE EN VALEURS.
ATTENTION: REMPLACER PAR UN FUSIBLE
DO NOT EXPOSE APPARATUS TO RAIN OR MOISTURE.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK
WARNING: THIS APPARATUS MUST BE EARTHED.
CA U TION
100 - 240V~
47-63Hz ~ 30W MAX
MADE IN THE UK BY ALLEN & HEATH LIMITED
FUSE
T500mAL 250V 20mm
MIX OUT
LEFT RIGHT
I
0
ON
OFF
SERIAL No:
AC MAINS IN ~
TO PC
USB
GAME/MIDI
FOOT
SWITCH
FX RETURNS
MIDI
L R
L R LINE
L RPHONO
L R LINE
L RPHONO
L R
L R
L R FX2
L RFX1
L R
INPUT 1INPUT 2INPUT 3INPUT 4
CH1
SOUNDCARD OUTPUTS
R
L
FX1 SEND
R
L
MONITOR
R
L
SPDIF
OUT
IN
L
CH2
R
CH3
L
CH4
R
CH5
L
CH6
R
IN OUT
DIGITAL AUDIO
OPTICAL
(REC OUT)
LINE
LINE
B
A
LINE
PHONO

ALLEN & HEATH Xone 4D Specifications

General

Sample rate	96 kHz
Frequency range	22 - 22000 Hz
Channels quantity	20 channels
Digital sound processing	24 bit
Microphone in	Yes
Product color	Black
Video capability	No
Equalizer bands quantity	3

Weight and Dimensions

Depth	358 mm
Width	432 mm
Height	88 mm
Weight	5000 g
Package depth	490 mm
Package width	575 mm
Package height	195 mm
Package weight	6000 g
