ALLEN & HEATH XONE 62 Service Manual

12 XONE:62 Service Manual
Specifications
0dBu = 0.775 Volts rms, +4dBu = 1.23V rms 0dBV = 1 Volt rms, -10dBV =
316mV rms
Max output level XLR +26dBu into >2k ohm
TRS +21dBu into >2k ohm
RCA +15dBu into >10k ohm
Headroom Channels +21dB
Mix to output +23dB
Freq response +0/-1dB 20Hz to 40kHz
Distortion < 0.006% THD+noise @1kHz
Crosstalk < 90dB Channel shutoff @1kHz
MIC EIN 22-22kHz -128dB 150 ohm source
Residual noise XLR -90dBu (-94dB S/N)
TRS -84dBu (-84dB S/N)
RCA -92dBu (-84dB S/N)
Mix noise XLR -86dBu (-90dB S/N)
TRS -83dBu (-83dB S/N)
RCA -91dBu (-83dB S/N)

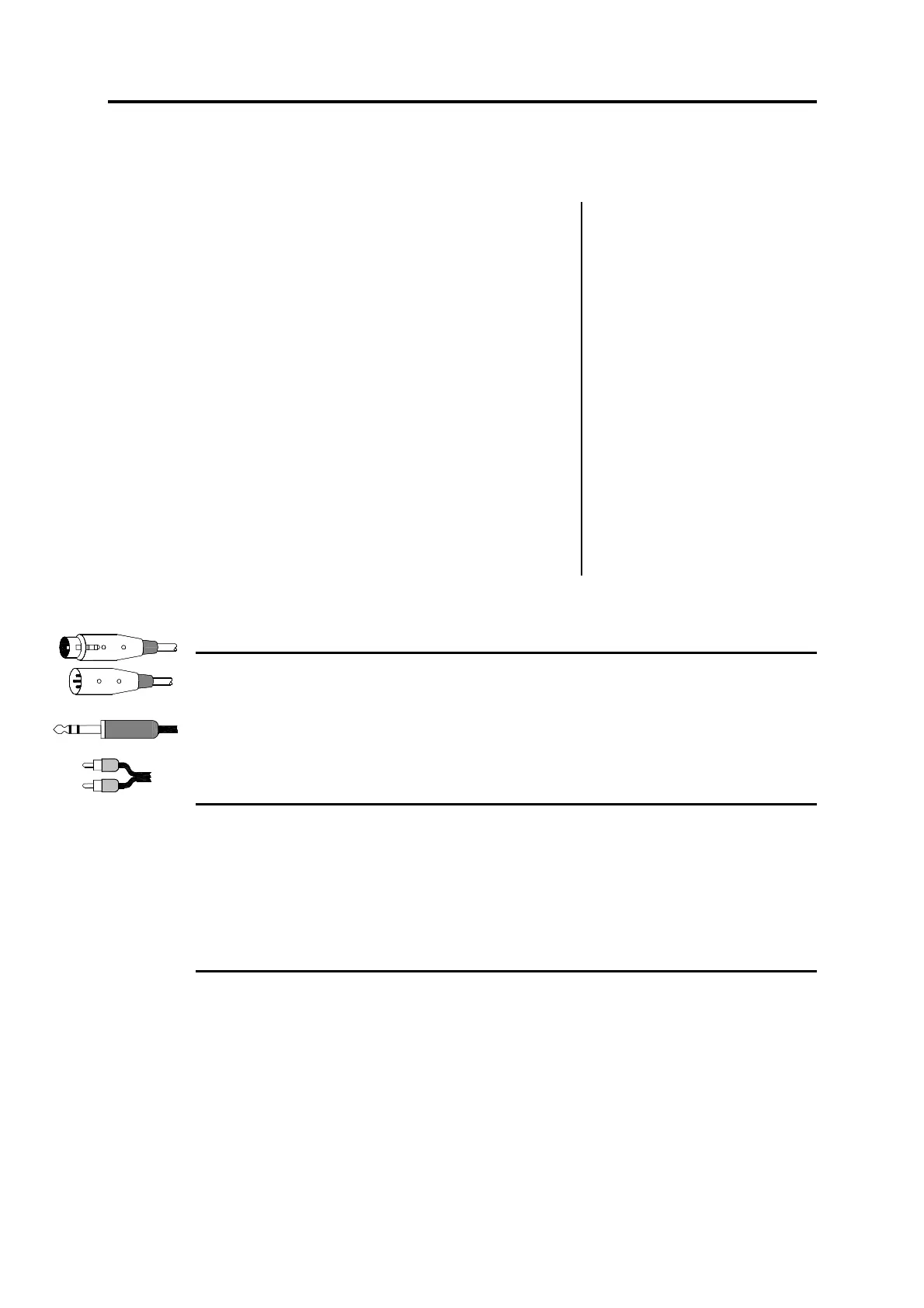

Connector Types
XLR male and female connectors : Pin 2 = hot (+) Pin 3 = cold (-) Pin 1 = GND
TRS input and output connectors : Tip = hot (+) Ring = cold (-) Sleeve = GND
RCA PHONO pin connectors
Input Connections Type Impedance Sensitivity
CH1,2 IN (Mic) Balanced XLR female 2k ohm -45 to –15dBu
(Stereo Line) Unbalanced TRS jack >10k ohm -15 to +15dBu
CH3,4,5,6 (Phono) RCA phono RIAA 47kohm/330pF 2 to 100mV
(Stereo Line) RCA phono >10k ohm -10 to +10dBu
Output Connections Type Impedance Level
MIX OUT L,R (XLR) Balanced XLR male <75 ohm
+4dBu
RECORD OUT RCA phono <600 ohm -10dBV
MONO OUT Impedance balanced TRS jack <600 ohm -2dBu
AUX OUT L,R Impedance balanced TRS jack <75 ohm -2dBu
BOOTH OUT Impedance balanced TRS jack <75 ohm -2dBu
HEADPHONES Tip = L Ring = R 30 to 600 ohm recommended
Ch meters Peak reading 4 led
-16, 0, +6, +12 (PK)
Main meters Peak reading 12 led
-20 to +8
Mic EQ 4-Band +/-15dB
100, 250, 2.5k, 10kHz
Music EQ 4-Band +6 / -26dB
100, 250, 2.5k, 10kHz
Ch fader 60mm stereo
Mix fader 100mm stereo or rotary
Crossfader 45mm stereo VCA
Replaceable
Filters Dual stereo VCF
Analogue
Panel Stainless steel

ALLEN & HEATH XONE 62 Specifications

General

Channels quantity	6 channels
Digital sound processing	- bit
Number of EQ bands per channel	4
XLR out	2
Microphone in	Yes
Headphone connectivity	6.3 mm
Product color	Black
Video capability	No
