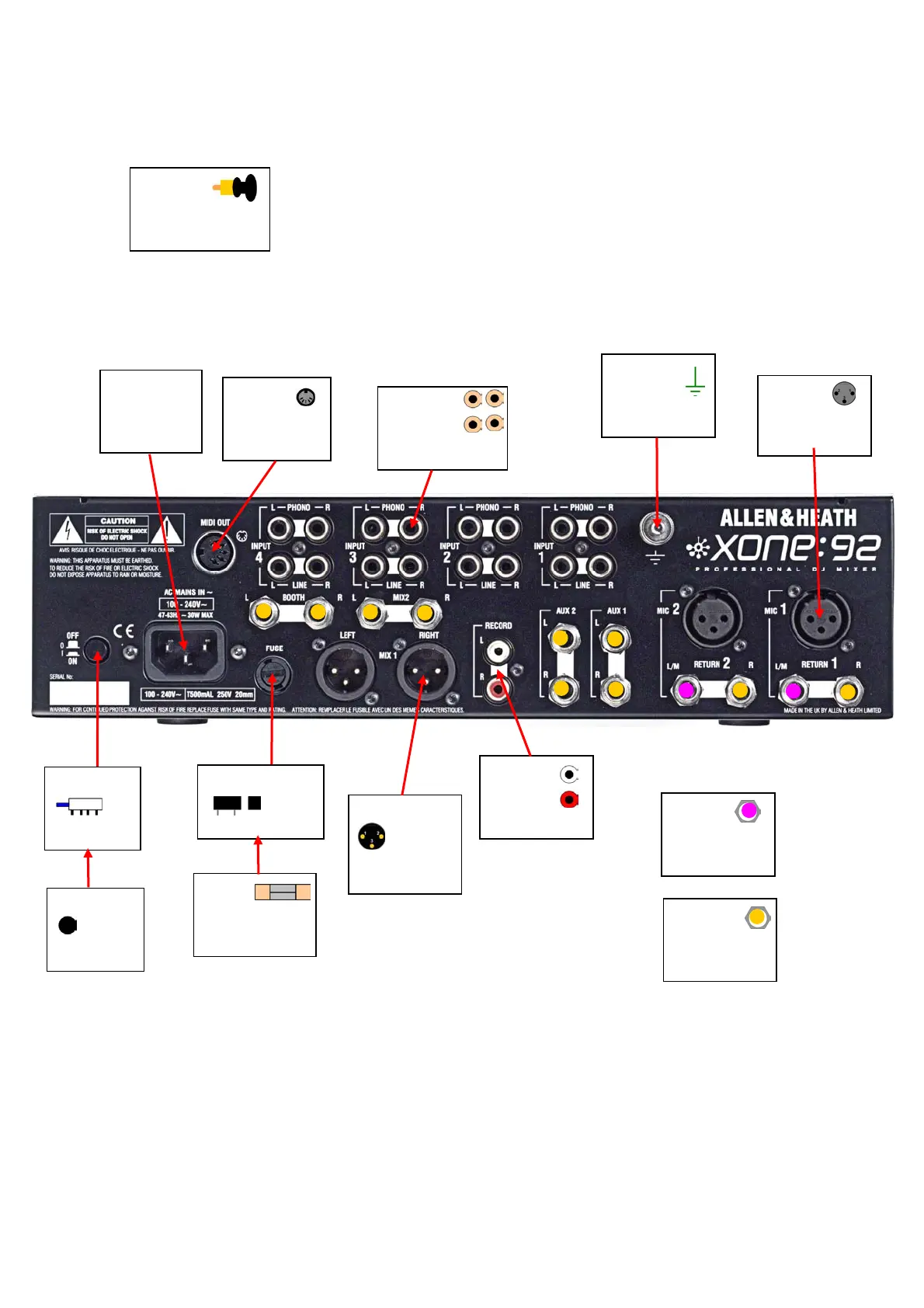

ALLEN&HEATH Xone:92 parts identification inc storm grey Issue 3 Page 6 of 9
XLR male
AL2411
Fuse holder
A
L3178
Fuse
AL3534
Switch
AL3338
Button
AJ2887
XLR
female
AL2410
RCA
phono
AL3753
RCA
Phono
AL4977
Jack
AL3410
MIDI
AL3962
Ground
post
AL8106
AC inlet
AL3458
Jack
AL3407
Phono
shorting plug
AL4396
