ALLEN & HEATH XONE 92

xone92_layout_1.doc Sheet 1 of 1
Product .........................XONE:92-R/100
.....................................XONE:92-R/110
.....................................XONE:92-R/120
.....................................XONE:92-R/220
.....................................XONE:92-R/240
........................................ XONE:92/110
........................................ XONE:92/120
........................................ XONE:92/220
........................................ XONE:92/240
Pack Assembly......................... 003-132
Main Assembly (Linear)............ 003-133
Top Panel Assembly (Linear) ... 003-134
Chassis Assembly. ................... 003-135
Main Assembly (Rotary) ........... 003-146
Top Panel Assembly (Rotary). . 003-147
Stereo Fader PCB .................... 002-684
Mic/Stereo Return PCB ............ 003-136
Stereo Input PCB ..................... 003-137
Filter 1 PCB .............................. 003-138
Master PCB .............................. 003-139
Crossfader PCB ....................... 003-140
Slave PCB ................................ 003-141
Connector PCB ........................ 003-142
Filter 2 PCB .............................. 003-143
Linear Fader PCB..................... 003-144
Rotary Fader PCB .................... 003-145
Mains/PSU PCB ....................... 003-233
Spare P&G Crossfader Assy.... 002-719

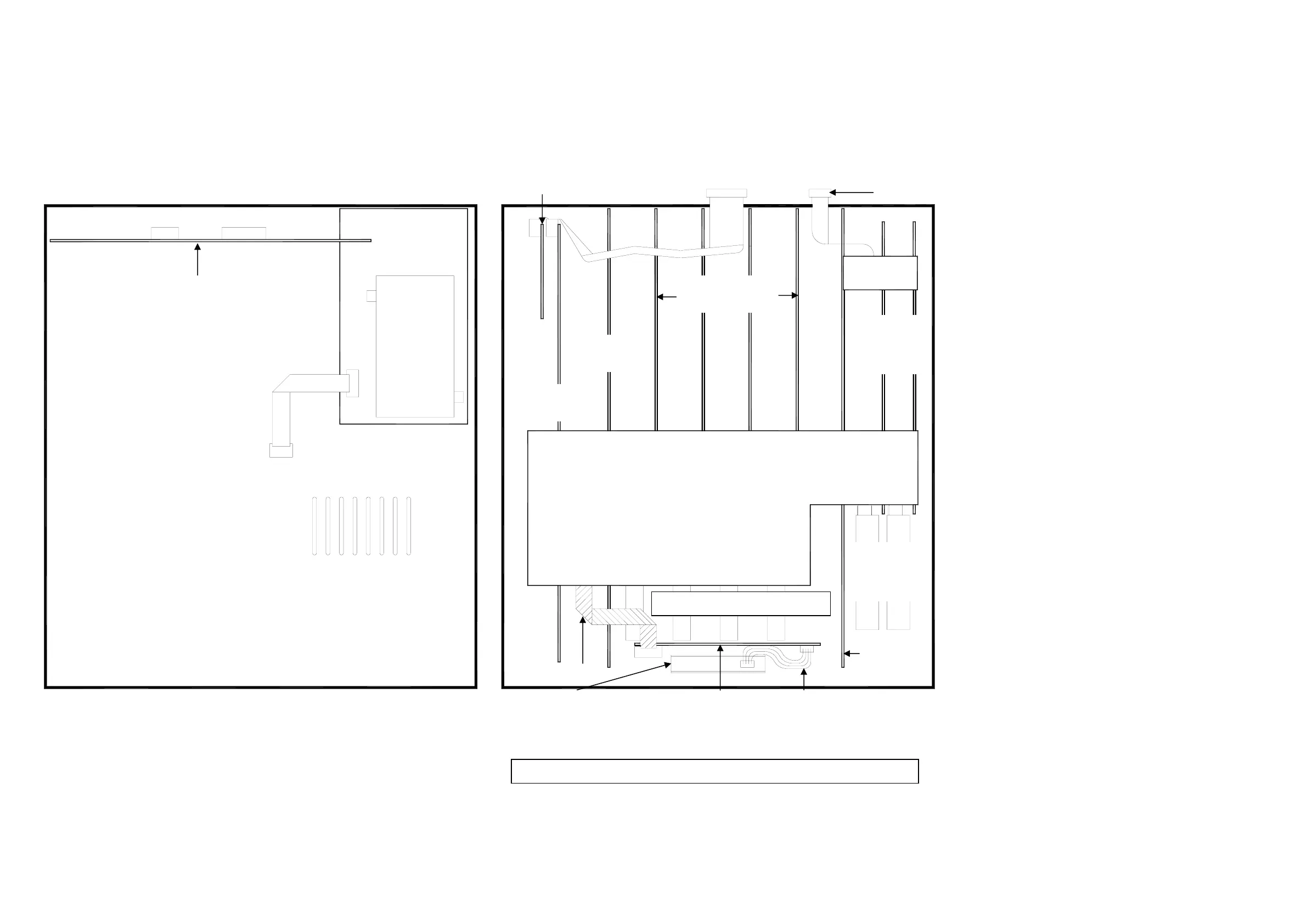

XONE:92 Chassis assembl
y
Front view
AL3822
SHIELD
PSU PCB
003-233
CONNECTOR PCB
003-142
AL3822
LINEAR FADER PCBs 003-144
XONE:92 Front Panel assembl
y
Front view
SLAVE PCB
003-141
AL5322
SLAVE PCB
003-141
AL3822
AL3817
STEREO INPUT PCBs
003-137
FILTER 2 PCB
003-143
FILTER 1
PCB
003-138
STEREO
FADER
PCBs
002-684
MIC/ST
RETURN
PCBs
003-136
MASTER PCB
003-139
RIGHT METER PCB
003-139
ROTARY versions use ROTARY FADER PCB 003-145 instead of 003-144
CROSSFADER PCB
003-140
CROSSFADER ASSEMBLY
002-719
