LATCHING LAYERS
If Latching Layers are ‘on’ (states [2], [3], [4] and [5]), the LAYER switch is used to toggle between the
three layers.
LATCHING LAYER OPTIONS
Use the rotary action of the Setup encoder to select between the Latching Layer options. The Latching
Layer states shown above are described as follows:
Once the desired controls are linked to the Latching Layers, press the setup encoder to store and return
to the setup mode. Press the amber switch to exit setup mode and the switch matrix LED’s will flash
RED three times.
If controls have been added to the latching layers system, the LAYER switch will be illuminated RED (layer
1) once the unit has exited setup mode.

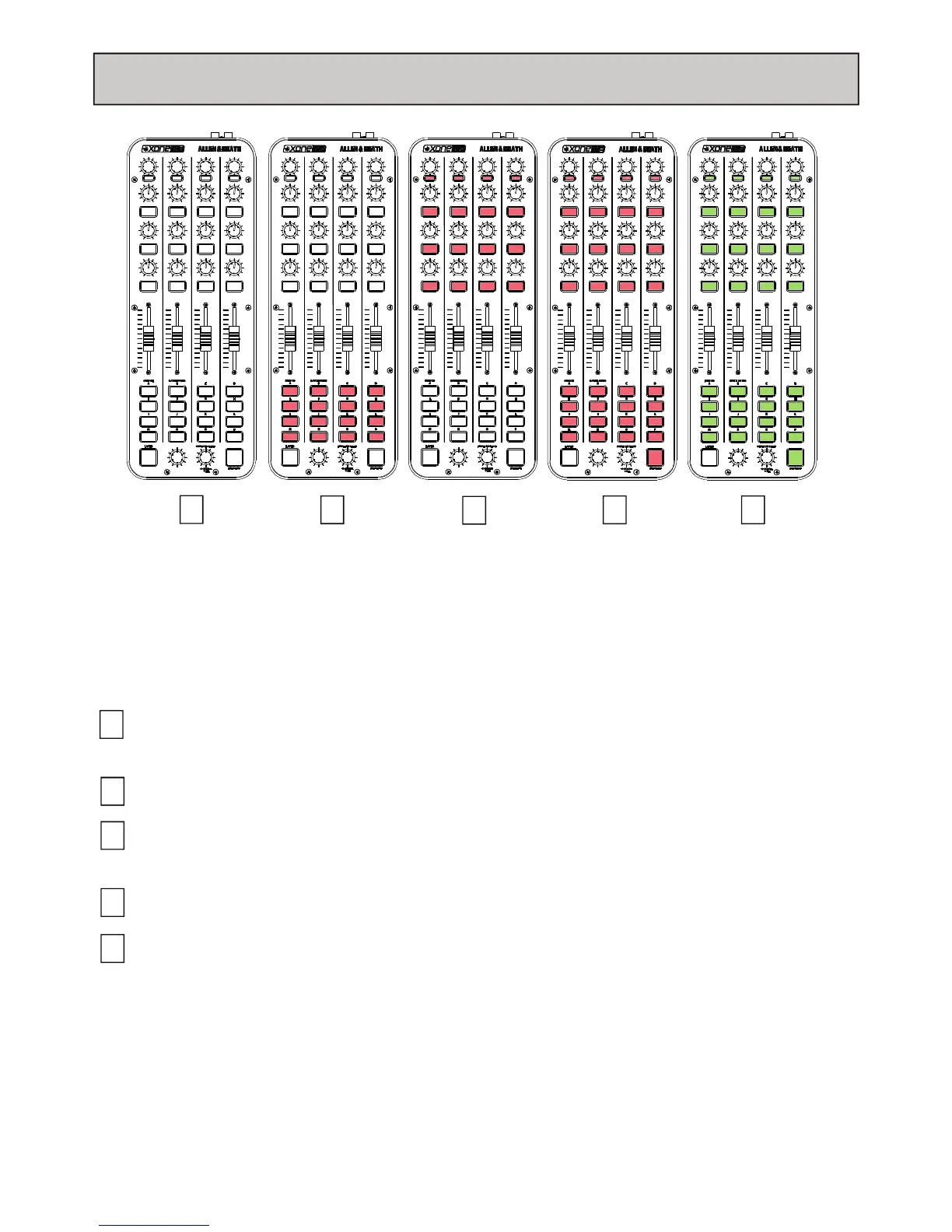

1 2
3 4
5
1
LATCHING LAYERS OFF - In this state, Latching Layers are disabled and the ‘Layer’ button is avail-
able for user configuration.
2
SWITCH MATRIX - In this state, the 16 switches in the Switch Matrix are linked to Latching Layers.
3
POT SWITCHES - In this state, the switches under the pots and the top row encoder switches are
linked to Latching layers.
4
ALL SWITCHES - In this state, all switches on the surface are linked to Latching Layers.
5
ALL CONTROLS - In this state, all controls on the surface are linked to Latching Layers. The fad-
ers and pots have an embedded soft pick up algorithm to provide seamless integration across layers.

ALLEN & HEATH Xone:K2 Specifications

General

Sample rate	48 kHz
Channels quantity	4 channels
Digital sound processing	- bit
Headphone connectivity	6.3 mm
USB 2.0 ports quantity	1
DJ mixer	Yes
Product color	Black
Video capability	No

Weight and Dimensions

Depth	358 mm
Width	135 mm
Height	30 mm
Weight	1000 g
