APPLICATION EXAMPLES

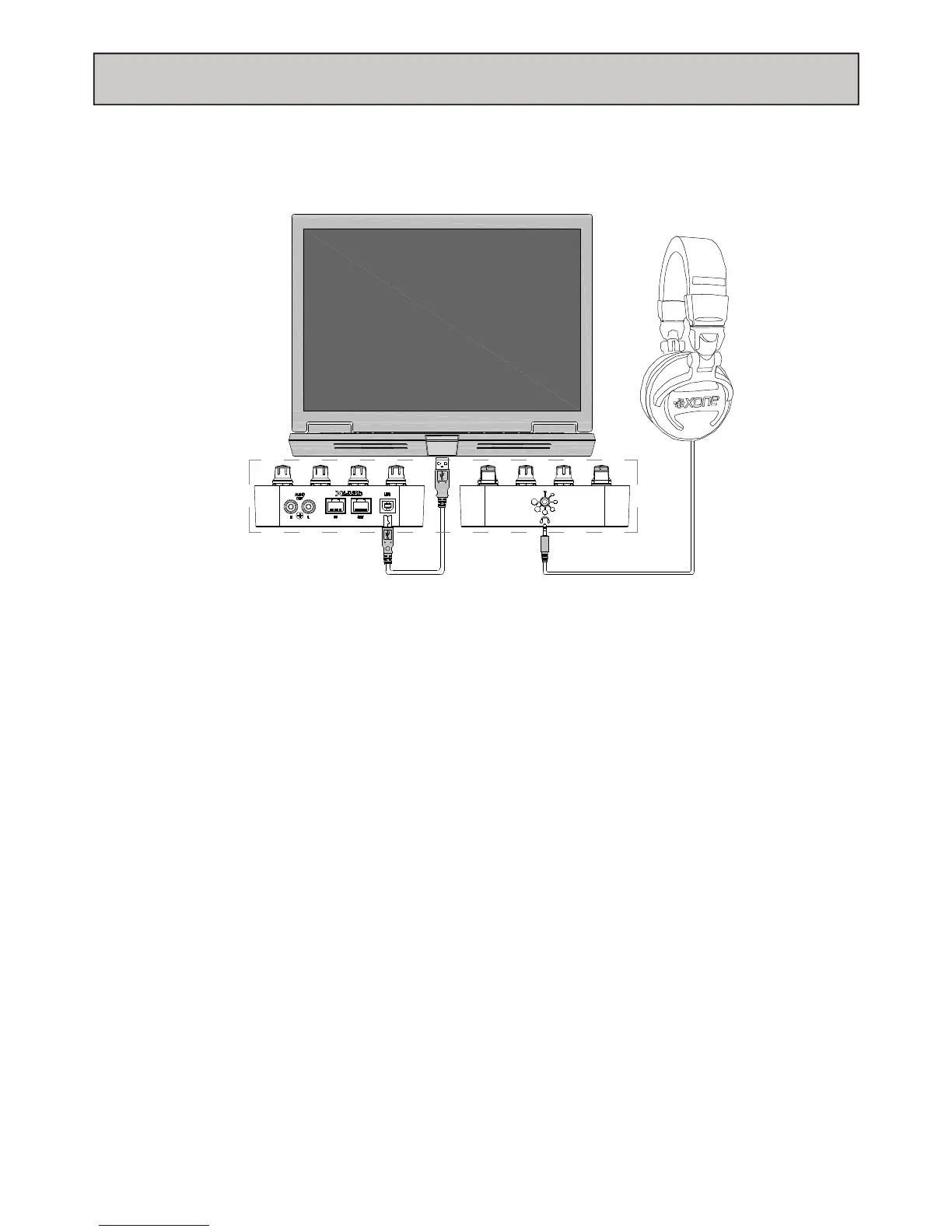

The above diagram shows a basic setup using one Xone:K2 (front and rear panels are both shown).
In this application the XONE:K2 is being used with headphones only.
PC DRIVER TYPE
In this particular application, as only the headphones are in use, it is possible to use the WDM
(Windows Device Manager) driver or the supplied ASIO driver. The WDM driver will default to
Soundcard Output 1-2 which feeds the headphones.
MAC
The XONE:K2 will appear as a device with four outputs. iTunes will default to Soundcard Outputs
1-2 which feeds the headphones.
SOUNDCARD MAPPING
PC WDM: In DAW application, set Master Output to Soundcard Output 1-2
PC ASIO: In DAW application, set Master Output to Soundcard Output 1-2
MAC: In DAW application, set Master Output to Soundcard Output 1-2
SINGLE SETUP (PHONES ONLY)

ALLEN & HEATH Xone:K2 Specifications

General

Sample rate	48 kHz
Channels quantity	4 channels
Digital sound processing	- bit
Headphone connectivity	6.3 mm
USB 2.0 ports quantity	1
DJ mixer	Yes
Product color	Black
Video capability	No

Weight and Dimensions

Depth	358 mm
Width	135 mm
Height	30 mm
Weight	1000 g
