Assembly data
Production Line
Xone
Product
PX5
Assembly Stage
Final assembly
Issue Date
12/07/16
Revision Number
ISSUE 1
AH-M0773

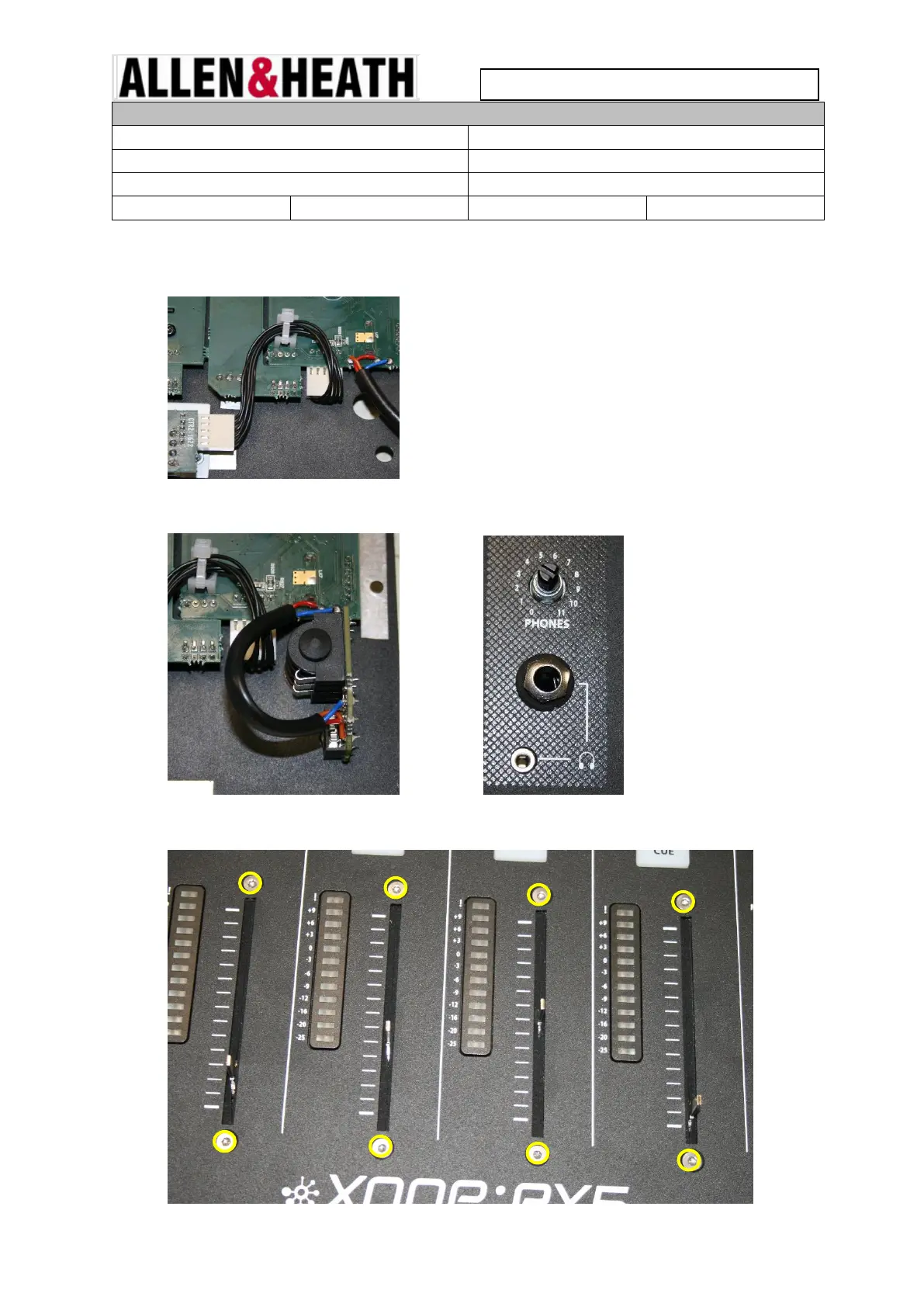

40. FIT AL10597 WFMA XONE 5WAY FROM THE MAIN PCBA TO THE CROSSFADER AND
SECURE USING AK7655 CABLE TIE 2.5X100MM x1 AS SHOWN.
41. FIT HEADPHONE PCBA AS SHOWN AND SECURE USING NUT AND BEZEL.
42. SECURE FADERS TO FRONT PANEL USING AB9037 SCREW M3X5 TRUNC CSK TORX x8.
