Assembly data
Production Line
Xone
Product
PX5
Assembly Stage
Final assembly
Issue Date
12/07/16
Revision Number
ISSUE 1
AH-M0773

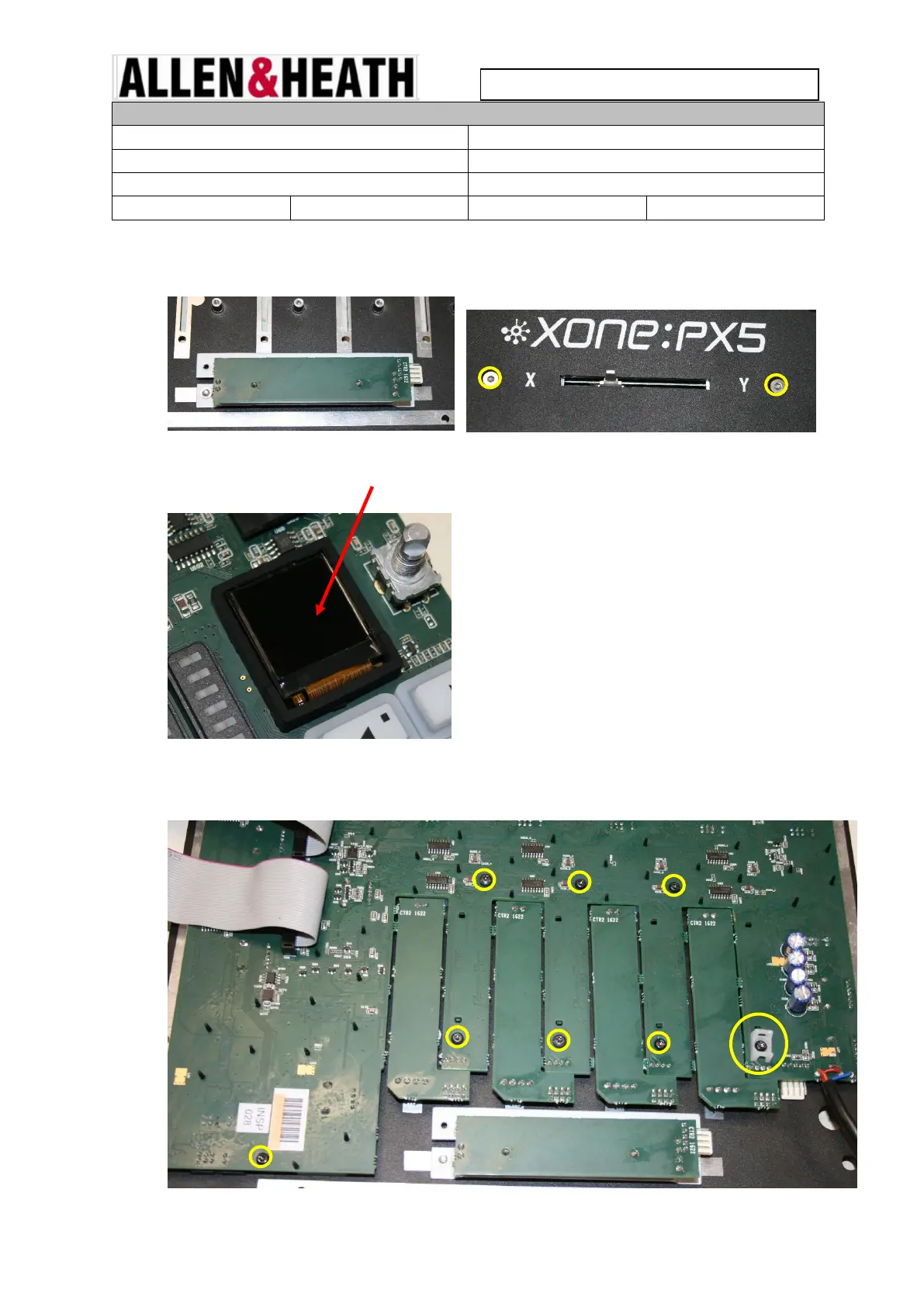

37. FIT THE CROSSFADER TO THE FRONT PANEL NOTING ORIENTATION AND SECURE
USING AB9037 SCREW M3X5 TRUNC CSK x2.
38. ENSURE ALL PROTECTIVE FILM IS REMOVED FROM THE TFT MODULE BEFORE FITTING
TO THE FRONT PANEL.
39. PLACE THE MAIN PCBA INTO THE FRONT PANEL AND SECURE USING AB0072 SCREW
M3X6 PAN TORX x8 AND AK7841 CLAMP CABLE FLAT TIE HOLD x1 AS SHOWN.
