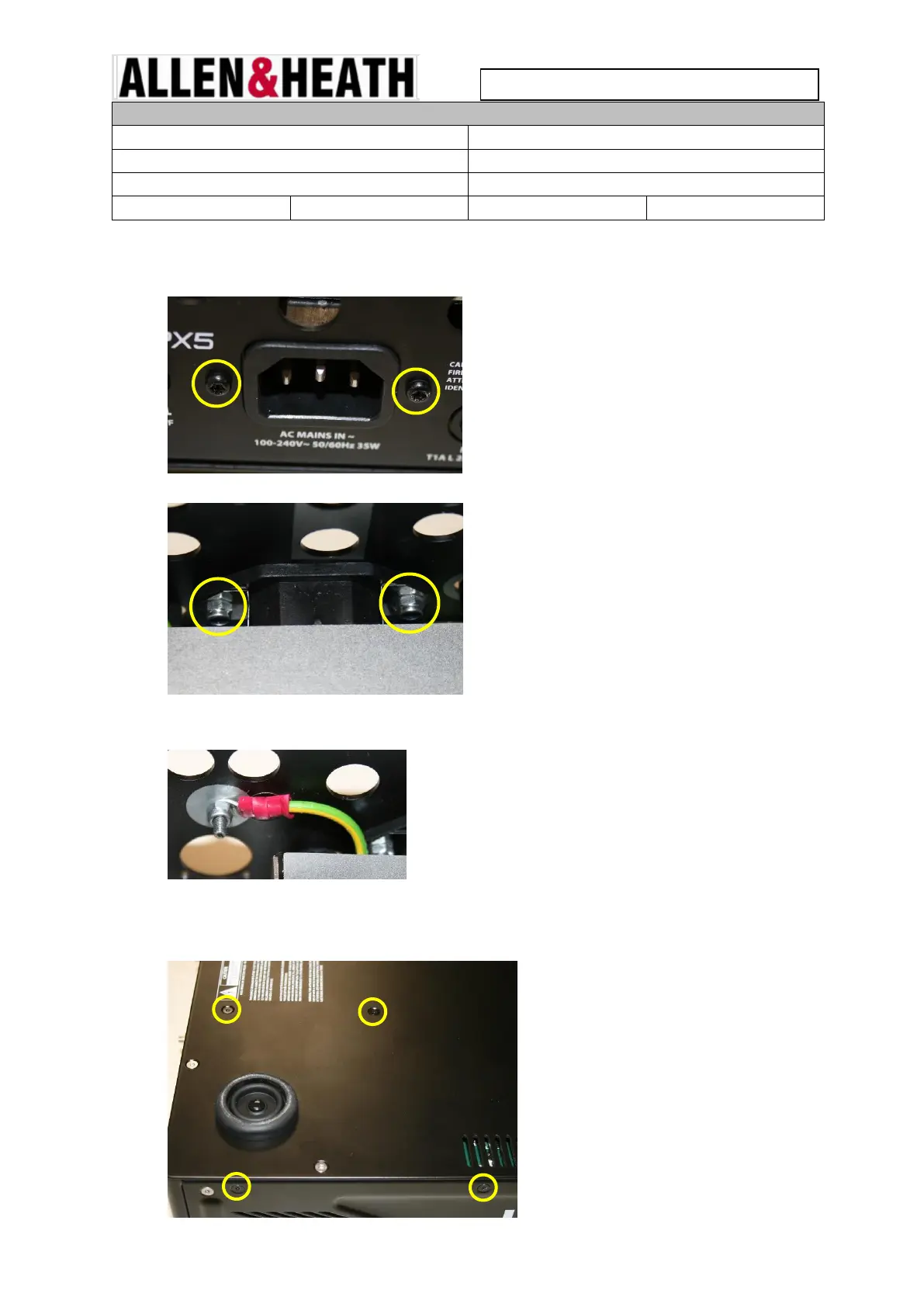

Assembly data
Production Line
Xone
Product
PX5
Assembly Stage
Final assembly
Issue Date
12/07/16
Revision Number
ISSUE 1
AH-M0773
12. SECURE MAINS SKT TO REAR PANEL USING AB0076 SCREW M3X10 PAN TORX x2 AND
AB0102 NUT M3 NYLOCK x2.
13. FIT EARTH STRAP TO EARTH STUD AND SECURE USING AB0102 NUT M3 NYLOCK x1.
14. TURN CHASSIS OVER AND SECURE THE PSU TO THE BASE USING AB8592 SCREW M3X5
TRUNC CSK x4.
