Assembly data
Production Line
Xone
Product
PX5
Assembly Stage
Final assembly
Issue Date
12/07/16
Revision Number
ISSUE 1
AH-M0773

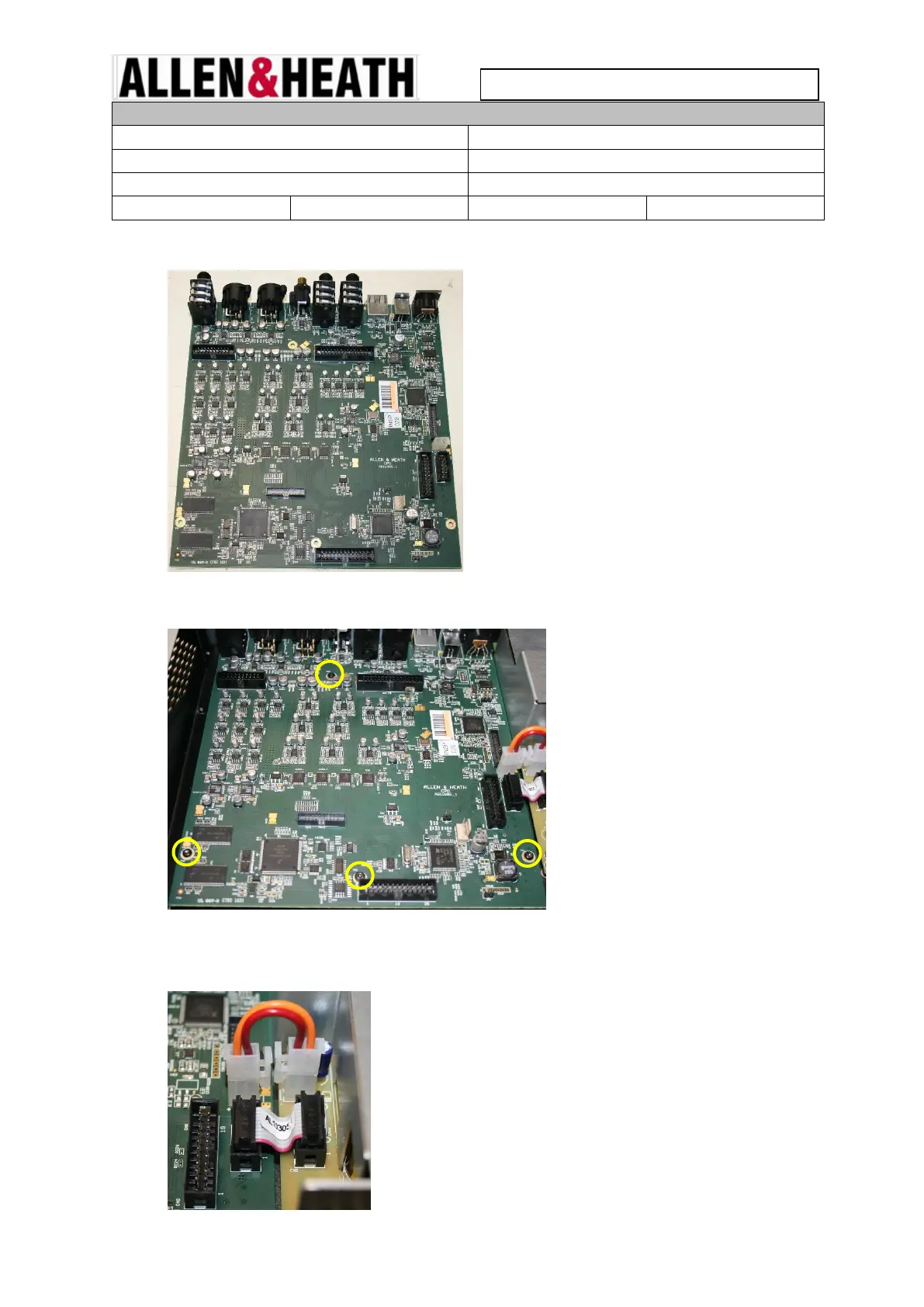

15. 004-739 XONE PX5 CPU. CHECK THE PCBA IS PRE-PROGRAMED WITH SD RAM TEST
16. FIT THE CPU TO THE CHASSIS AND SECURE USING AB0072 SCREW M3X6 PAN TORX x4.
17. CONNECT AL10305 IDC WFM XONE: PX5 POWER FROM THE CPU TO THE PSU AND
AL10327 WFMA XONE: PX5 PSU-CPU.
