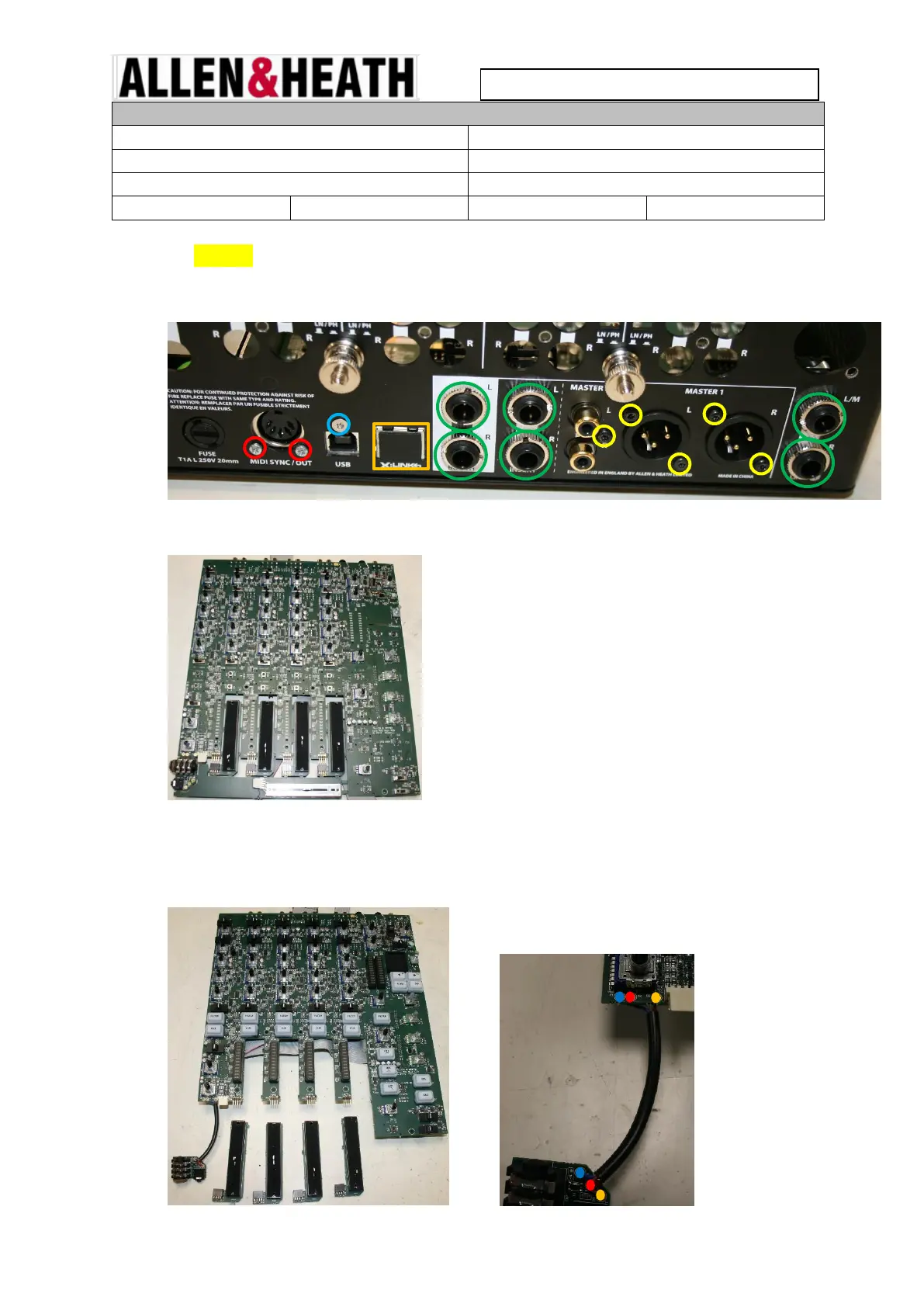

Assembly data
Production Line
Xone
Product
PX5
Assembly Stage
Final assembly
Issue Date
12/07/16
Revision Number
ISSUE 1
AH-M0773
18. FIT AB7422 SCREW 2.7X9 AB TORX BK x5. AB9037 SCREW M3X5 TRUNC CSK x1.
AB4393 SCREW 2.5X6 PAN POZI PLAS x2. AL8797 PLUG BLANK RJ45 BLACK x1.
AB10256 JACK NUTS x6.
19. 004-736 XONE PX5 MAIN PCBA.
20. BREAK OUT ALL FADERS AND THE HEADPHONE SOCKET. SOLDER WFM TO THE
HEADPHONE SOCKET (TOP SIDE) AND MAIN PCBA (BTM SIDE).
WFM = AH0007 x10cm AH0011 x10cm AH0012 x10cm AH8533 x7cm.
