ALLEN & HEATH ZEDi-10 User Manual

5
2.1 EFFECTS SECTION
Effects such as reverb and delay are generally used to add “natural sounding” acoustics and
a sense of space to the mix, but can also be used to add interesting repetitions in time with
the music. Modulation effects can be used to enhance a sound harmonically or to add depth
and motion.
1. The ZED FX Multi Model processor is a high quality built-in effects unit which is fed with
a mono signal from the FX buss.
2. FX Select / Parameter control is used to scroll through effects presets and make
changes to editable parameters.
3. TAP TEMPO Button can be used to adjust the frequency or tempo of delay effects
that include a Tap Tempo parameter. If a delay effect is selected then you will see a
flashing decimal point on the right hand side of the preset display.
Change effects parameters by pressing and holding down the TAP TEMPO button
and turning the effects FX Select / Parameter control. The display will show a parameter
value of P0 to P9.
Reset the editable effects parameters to factory defaults, by holding down FX
Select / Parameter control and TAP TEMPO Button at the same time whilst
switching on the power.
Turn off the internal effects by setting the ZED FX Multi Model preset to “ 00”.
4. FX TO AUX controls the level of effects signal sent to the aux buss and AUX OUT from
the ZED FX Multi Model processor
5. FX to MIX rotary fader controls the volume of the stereo (wet) effects signal into
the MAIN MIX.
ST2 Inputs are routed to the MAIN MIX via the FX MIX control and are intended as
a stereo return channel for external effects processors, but can be used as an input for
other stereo sources when the ZED FX Multi Model is not in use.
A latching footswitch can be connected to the FX OUT (see section 1.3) and used to mute
the output from the ZED FX Multi Model processor. The footswitch must be wired between
Tip and Sleeve.
For more information on using the ZED FX Multi Model processor see section 6.4 .

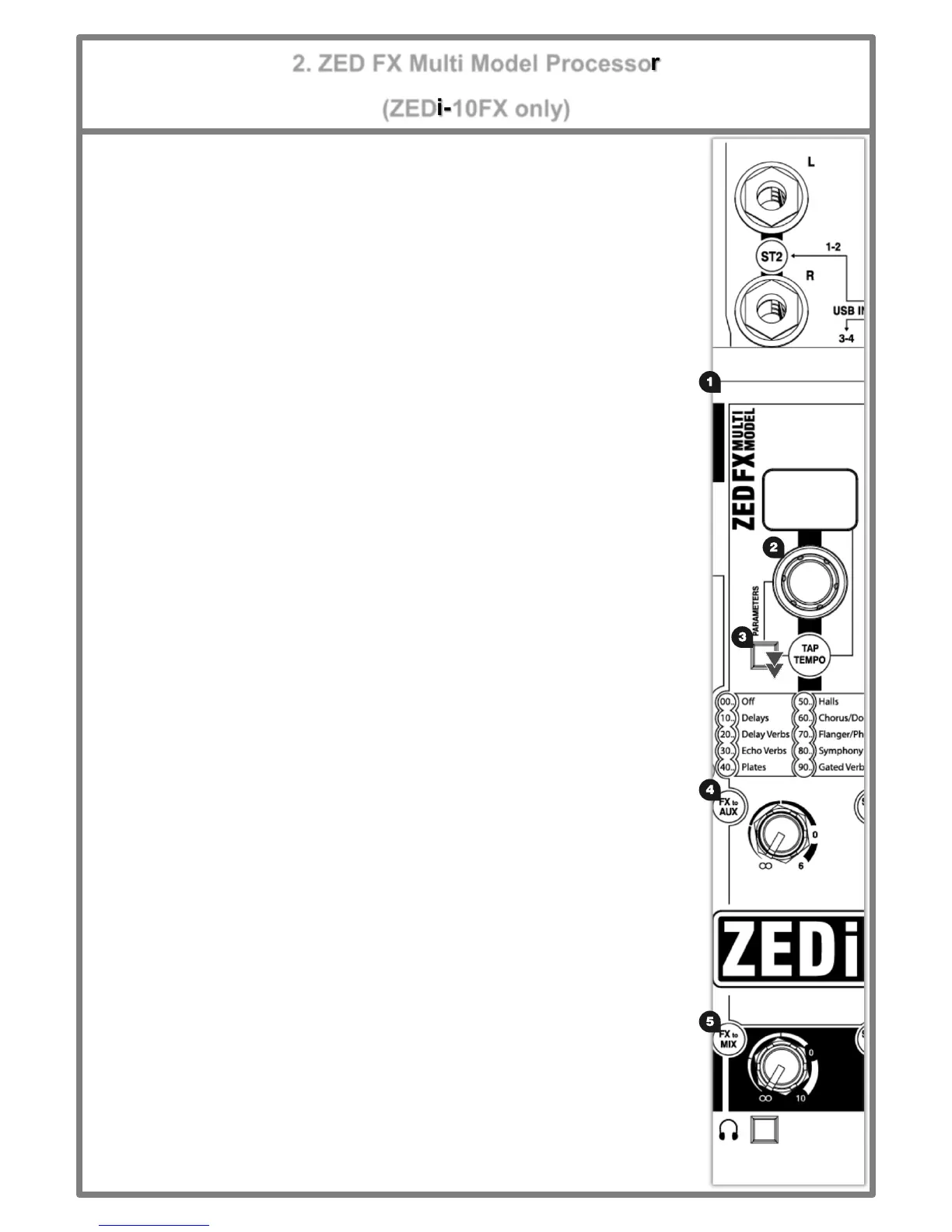

2. ZED FX Multi Model Processor
(ZEDi-10FX only)

ALLEN & HEATH ZEDi-10 Specifications

General

Channels quantity	10 channels
Digital sound processing	24 bit
DJ mixer	No
USB port	Yes
Product color	Black, Grey
Master (XLR) out	2
Headphone connectivity	6.3 mm
USB 2.0 ports quantity	1
Equalizer bands quantity	3

Weight and Dimensions

Depth	274.3 mm
Width	332.7 mm
Height	96.5 mm
Weight	2200 g
