Allen-Bradley 1305-BA04A User Manual

Programming
5-12
Setup Group (continued)
[Overload Mode]
Parameter # 37 Factory Default “No Derating”
[Overload
Mode]
Parameter Type Read & Write
This parameter selects the derating factor for the I
2
t
electronic overload function. Designed to meet NEC Article
Units Text Settings ‘‘No Derating”
10:1 Speed Range
– No Derating Refer to Figure 5.2
electronic
overload
function
.
Designed
to
meet
NEC
Article
430 and UL (file E59272) equivalent requirements.
Additional overload devices do not need to be installed.
‘‘Min Derate”
4:1 Speed Range
– Derate below 25% of Base Speed.
Refer to Figure 5.3
‘‘Max Derate”
2:1 Speed Range
– Derate below 50% of Base Speed.
Refer to Figure 5.4
100
80
60
40
20
0 25 50 75 100 125 150
175 200
% Base Speed

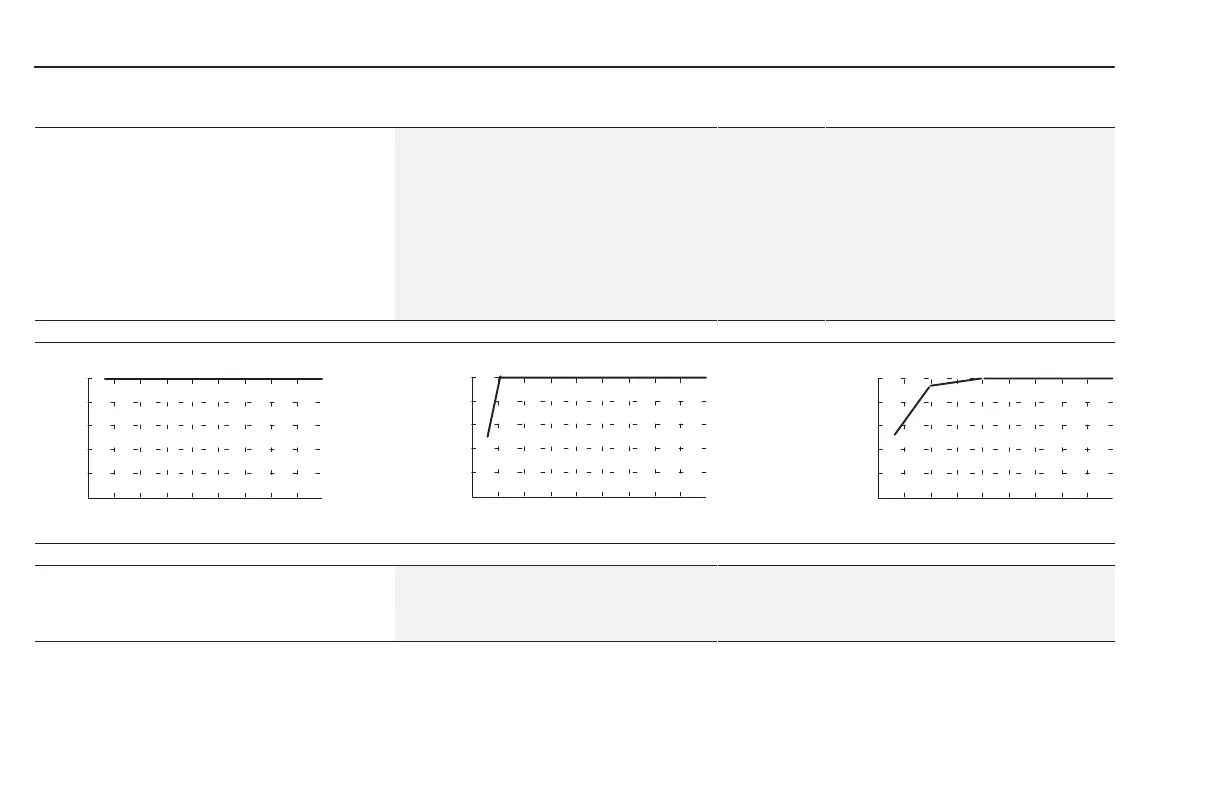

Figure 5.2 No Derating
100
80
60
40
20
100
80
60
40
20
Figure 5.3 Min Derating Figure 5.4 Max Derating
% Base Speed % Base Speed
0 25 50 75 100 125 150
175 200
0 25 50 75 100 125 150
175 200
[Overload Current]% of Setting
[Overload Current]% of Setting
[Overload Current]% of Setting
[Overload Current]
Parameter # 38 Factory Default 115% of Drive Rated Current
Displayed in Amps
[Overload
Current]
This value should be set to the motor name
p
late Full Load
Parameter Type Read & Write Minimum 20% of Drive Rated Current
Displayed in Amps
This
value
should
be
set
to
the
motor
nameplate
Full
Load
Amps (F.L.A.).
Units 0.1 Amps Maximum 115% of Drive Rated Current
Displayed in Amps
