Allen-Bradley 140G Series Installation Instruction

8

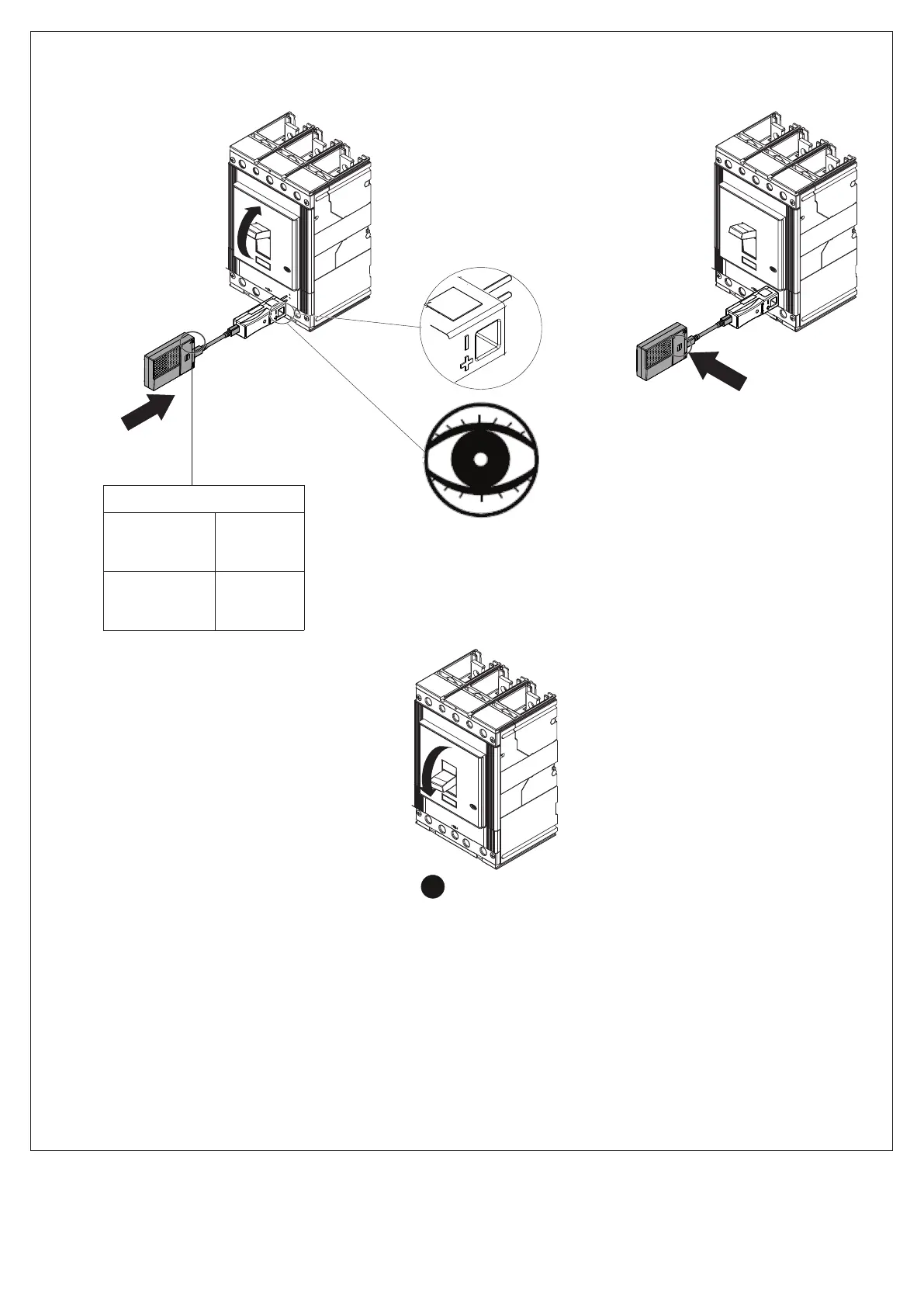

ELECTRONIC TRIP TEST
LED TRIP UNIT DEVICE
- Green
- Verde
- Grün
- Vert
- Verde
- Red
- Rosso
- Rot
- Rouge
- Rojo
- Device ON
- Dispositivo acceso
- Einrichtung eingeschaltet
- Dispositif allumé
- Dispositivo encendido
- Change battery
- Sostituire batterie
- Batterie ersetzen
- Remplacer batteries
- Sustituir baterías
CLACK
4
1
Push TEST button
Premere pulsante TEST
Drücken Sie die Test-Taste
Appuyer sur le bouton TEST
Pulse el pulsador TEST
2
140G-ELTT
(ORDERED
SEPARATELY)
3
Charge - Carica - Ladung - Alimentation -
Alimentación
(5)
DIR 1000437R0002 Version 02

Allen-Bradley 140G Series Specifications

General

Series	140G
Poles	1, 2, 3, 4
Standards	UL 489, CSA C22.2 No. 5, IEC 60947-2
Type	Molded Case Circuit Breaker
Frame Sizes	G
Amperage	10A to 3000A
Trip Type	Thermal-Magnetic, Electronic
Mounting	Fixed or Plug-in
Voltage Ratings	Up to 690V AC
