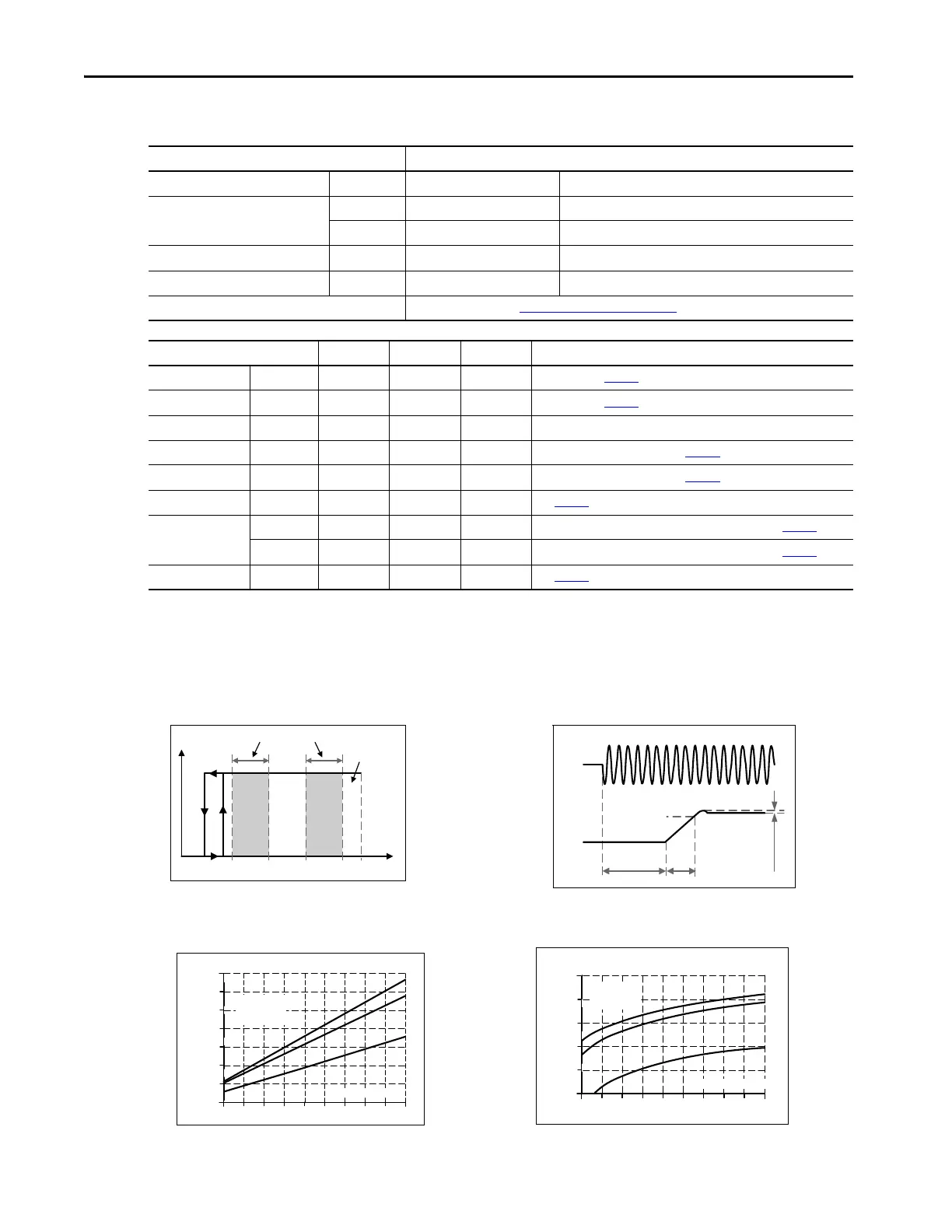

8 Rockwell Automation Publication 1606-RM055A-EN-P - December 2016
Basic Power Supply 5 A
Input
Attribute 1606-XLB120E
AC input nom 100…120V/200…240V AC Auto-select, suitable for TN-, TT- and IT mains networks
AC input range min 90…132V AC/180…264V AC continuous operation
min 264…300V AC < 500 ms
Allowed voltage L or N to earth max 300V AC continuous, IEC 62103
Input frequency nom 50…60 Hz ±6%
External input protection See recommendations in External Input Protection
on page 16
Attribute AC 100V AC 120V AC 230V
Input current typ 2.0 A 1.72 A 1.05 A at 24V, 5 A, see Figure 3
Power factor
(1)
typ 0.66 0.64 0.54 at 24V, 5 A, see Figure 5
Crest factor
(2)
typ 2.7 2.8 3.4 at 24V, 5 A
Turn-on voltage typ 78V AC 78V AC 157V AC at 24V 0 A, steady-state value, see Figure 2
Shut-down voltage typ 68V AC 68V AC 68V AC at 24V 5 A, steady-state value, see Figure 2
Start-up delay typ 400 ms 400 ms 100 ms see Figure 4
Rise time typ 30 ms 30 ms 30 ms at 24V, 5 A const. current load, 0mF load capacitance, see Figure 4
typ 90 ms 90 ms 90 ms at 24V, 5 A const. current load, 5mF load capacitance, see Figure 4
Turn-on overshoot max 200 mV 200 mV 200 mV see Figure 4
(1) The power factor is the ratio of the true (or real) power to the apparent power in an AC circuit.
(2) The crest factor is the mathematical ratio of the peak value to the T ms value of the input current waveform.
Figure 2 - Input Voltage Range, typ Figure 4 - Turn-on Behavior, Definitions
Figure 3 - Input Current vs. Output Load at 24V Figure 5 - Power Factor vs. Output Load
Turn-on
90
Rated input ranges
V
IN
P
OUT
264180
Shut-down
132
Upper
range
Lower
range
300Vac
max.
500ms
Start-up
delay
Rise
Time
Overshoot
- 5%
Output
Voltage
Input
Voltage
5A
0.5 1 1.5 2 2.5 3 3.5 4 4.5
0
0.3
0.6
0.9
1.2
1.5
1.8
2.2A
Input Current, typ.
b
c
a
Output Current
a) 100Vac
b) 120Vac
c) 230Vac
Power Factor, typ.
0.5 1 1.5 2 2.5 3 3.5 4 4.5 5A
0.45
0.50
0.55
0.60
0.65
0.70
Output Current
a) 100Vac
b) 120Vac
c) 230Vac
b
c
a
