Allen-Bradley 1734-OB4 User Manual

Rockwell Automation Publication 1734-UM001E-EN-P - July 2013
134 Calibrate Your Analog Modules

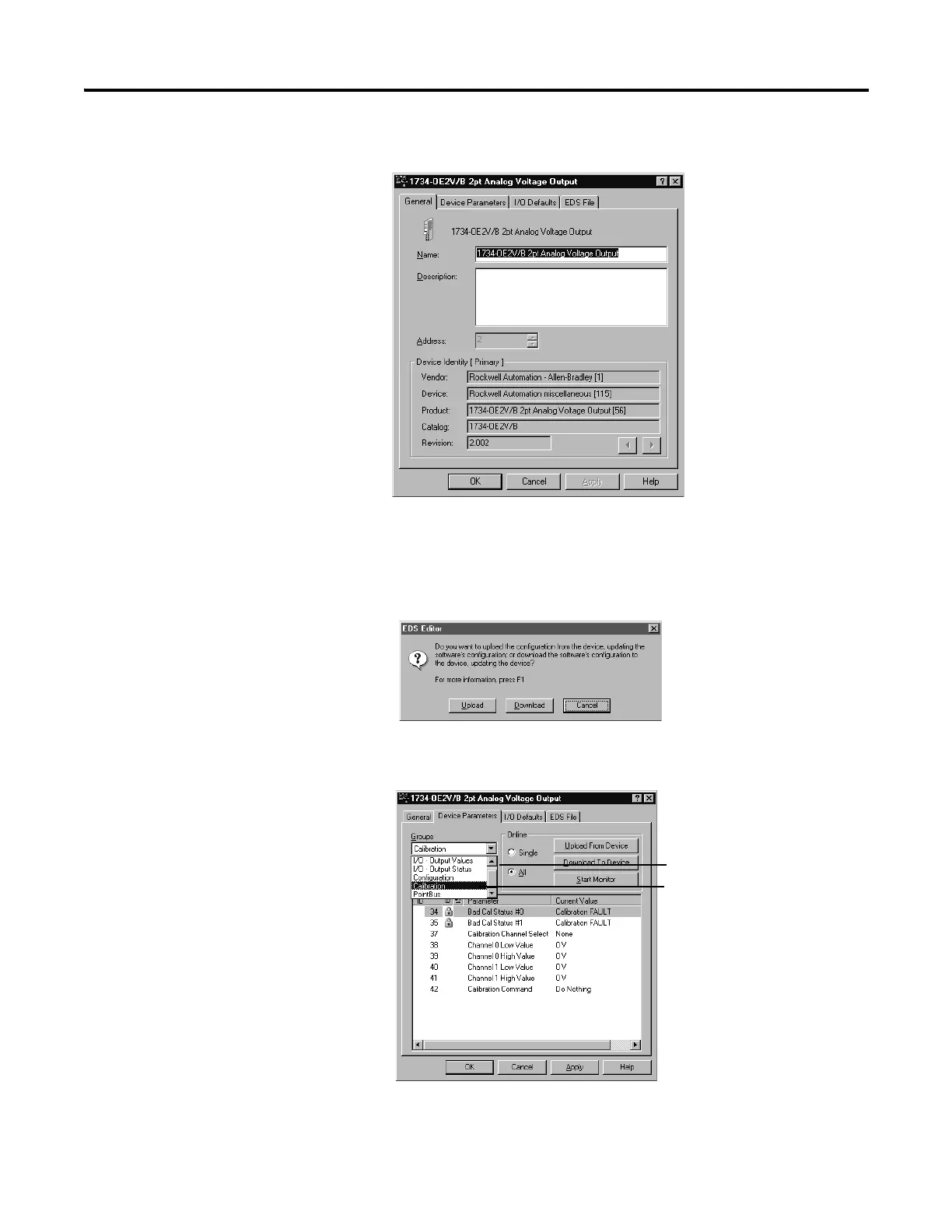

1. Double-click the icon to bring up the General parameter dialog.
You see the EDS Editor dialog ask you if you want to upload the
configuration from the device.
2. From the EDS Editor dialog, click Upload.
.
3. From the Device Parameters dialog, select Calibration at the Groups
pull-down.
Groups pull-down
Click Calibration.

Allen-Bradley 1734-OB4 Specifications

General

Brand	Allen-Bradley
Model	1734-OB4
Category	I/O Systems
Language	English
