• Click another tab at the top of the dialog.
or
• Click OK, which closes the dialog.
or
• Click Cancel to return to default values.
or
• Click Apply to save changes you made on any of the dialogs and
continue to display the dialog, noting that you enable the Apply button
when you make changes to any of the dialogs.
Enter Values on the Configuration dialog
Enter values on this dialog based on the type of module with the following:
• Overload diagnostic status
• Overload and open load diagnostic status
To complete the entries on this dialog proceed as follows.
1. From the General dialog, select Configuration.
You see the Configuration dialog, which displays configuration data for
each channel in individual rows in a table. The number of output channels
varies based on the type of module as in the following examples:
• The 1734-OB2E module has two output channels (0 to 1).
• The 1734-OB4E module has four output channels (0 to 3).
• The 1734-OB8E module has eight output channels (0 to 7).

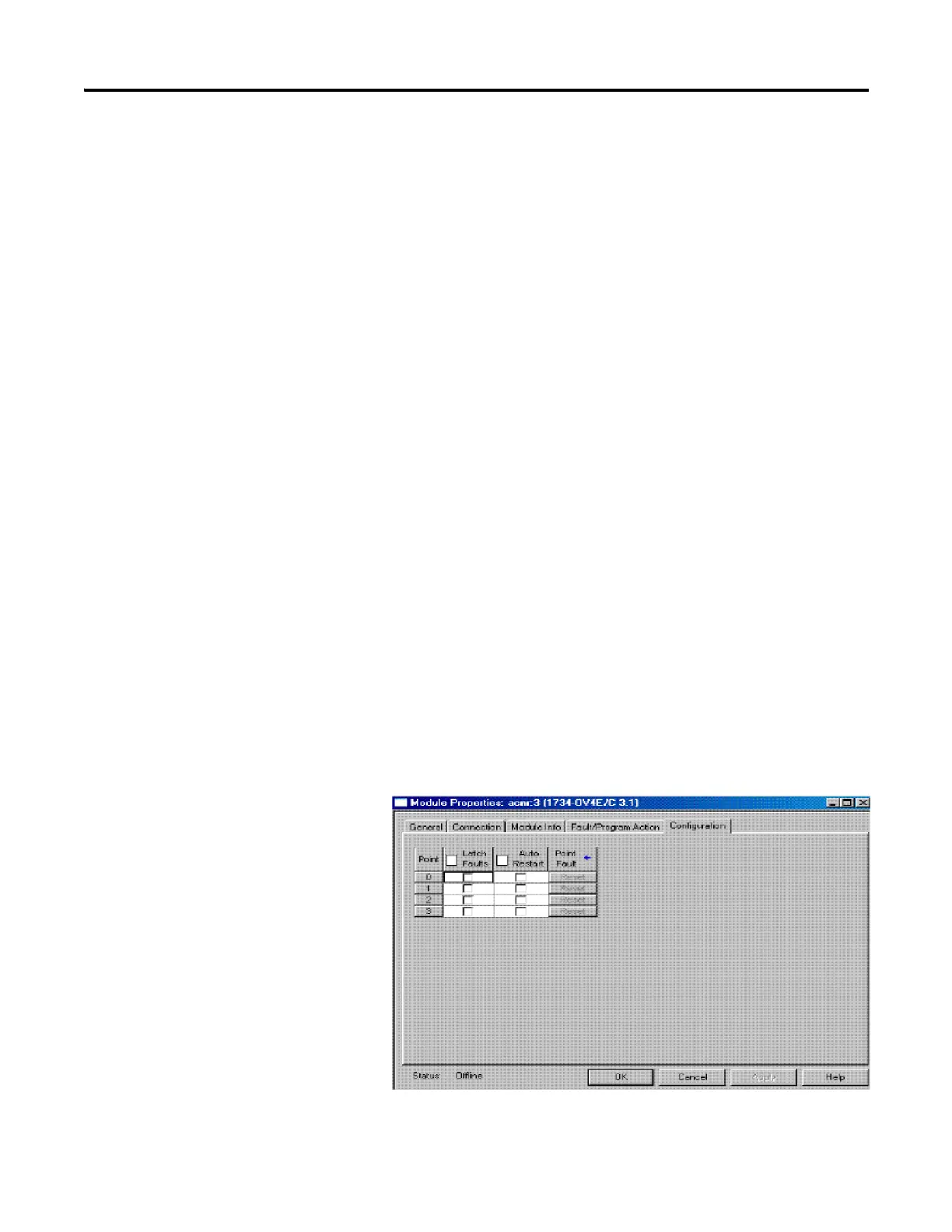

See the figure for a Configuration dialog for a 4-point output module. The
2-point and 8-point output modules are identical except for the number of point
you can configure.
