Rockwell Automation Publication 1734-UM001E-EN-P - July 2013
216 Configure POINT I/O Modules for DeviceNet Networks

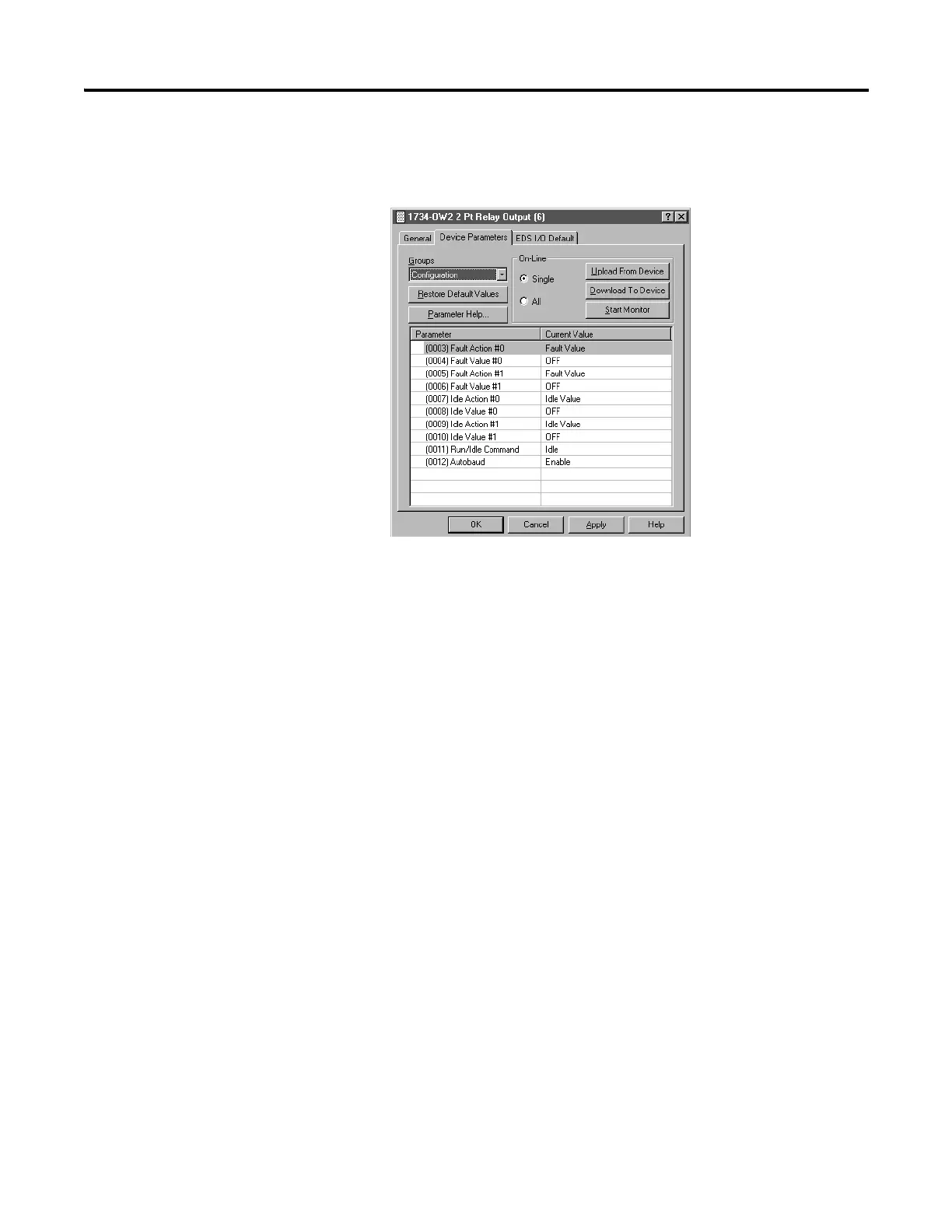

3. From the Device Parameters dialog, click Configuration to set the
parameters for the module to include sequential addressing and autobaud,
or, if not using autobaud, the communication rate.
The Groups pull-down menu includes the following:
• All parameters
• I/O
• POINTBus
• Configuration - Select to set the paramters
Note that configurable parameters include the following:
• Fault Action - Fault value/Hold Last State
• Fault Value - Off/On
• Idle Action - Idle value/Hold Last State
• Idle Value - Off/On
• Run/Idle Command - Idle/Run
