Chapter 6 Install ControlLogix Analog I/O Modules
Choose Extended-depth
Housing
There are two housing options available when wiring your ControlLogix analog
I/O module:
• Standard-depth housing
• Extended-depth housing
When you order an RTB for your I/O module, you receive standard-depth
housing. If your application uses heavy gauge wiring, you can order
extended-depth housing. Extended-depth housing does not come with an RTB.
IMPORTANT
The housings shown are used with a spring clamp RTB, but the capacity for
each remains the same regardless of RTB type.
Cat. No. RTB Type Wire Capacity Number of Wires
1756-TBCH Cage clamp Standard-depth
336 mm
2
(0.52 in.
2
)
36 - 18 AWG wires
23 - 14 AWG wires
1756-TBS6H Spring clamp
1756-TBE Any RTB that uses heavy gauge
wiring
Extended-depth
628 mm
2
(0.97 in.
2
)
40 - 14 AWG wires

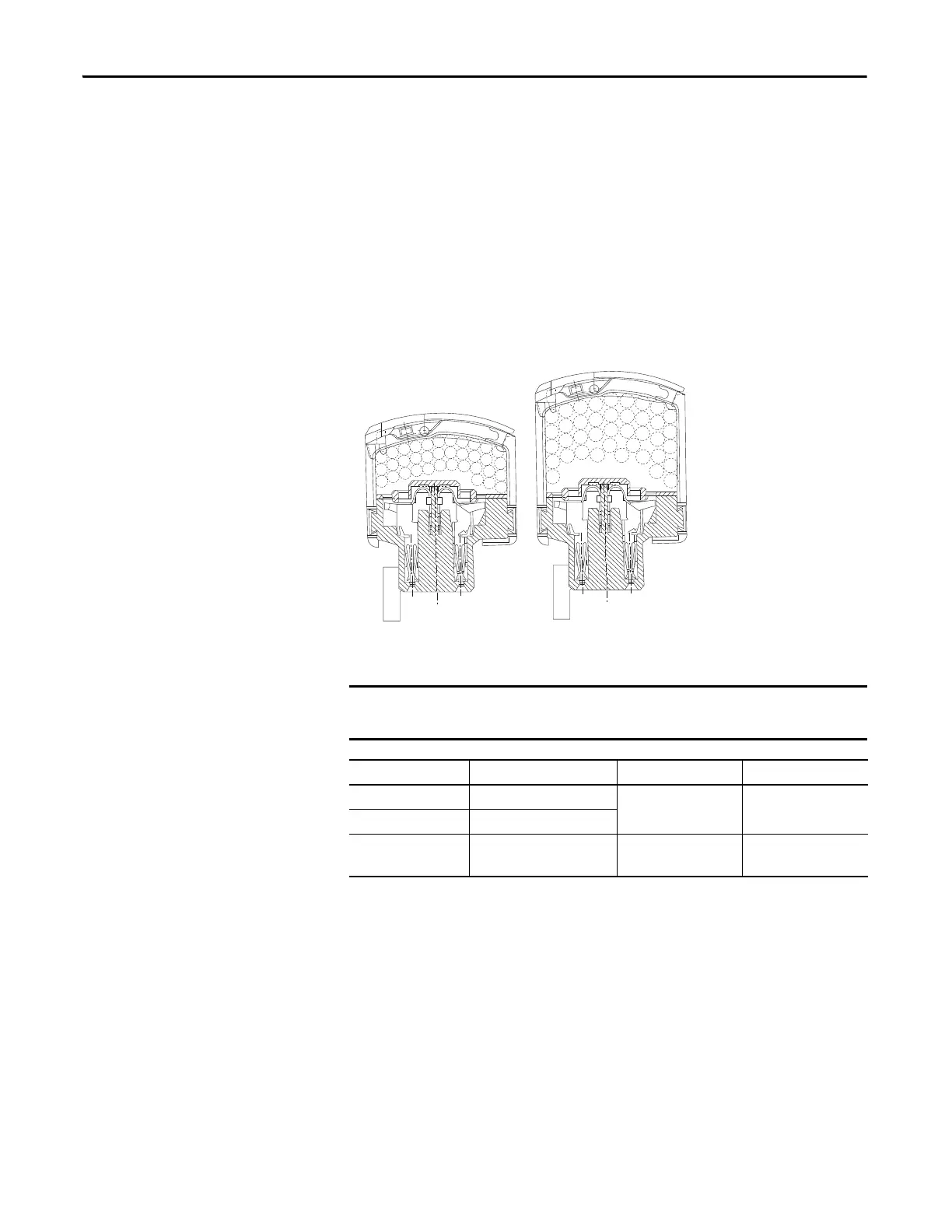

Standard-depth Housing
Extended-depth Housing
