Chapter 6 Install ControlLogix Analog I/O Modules

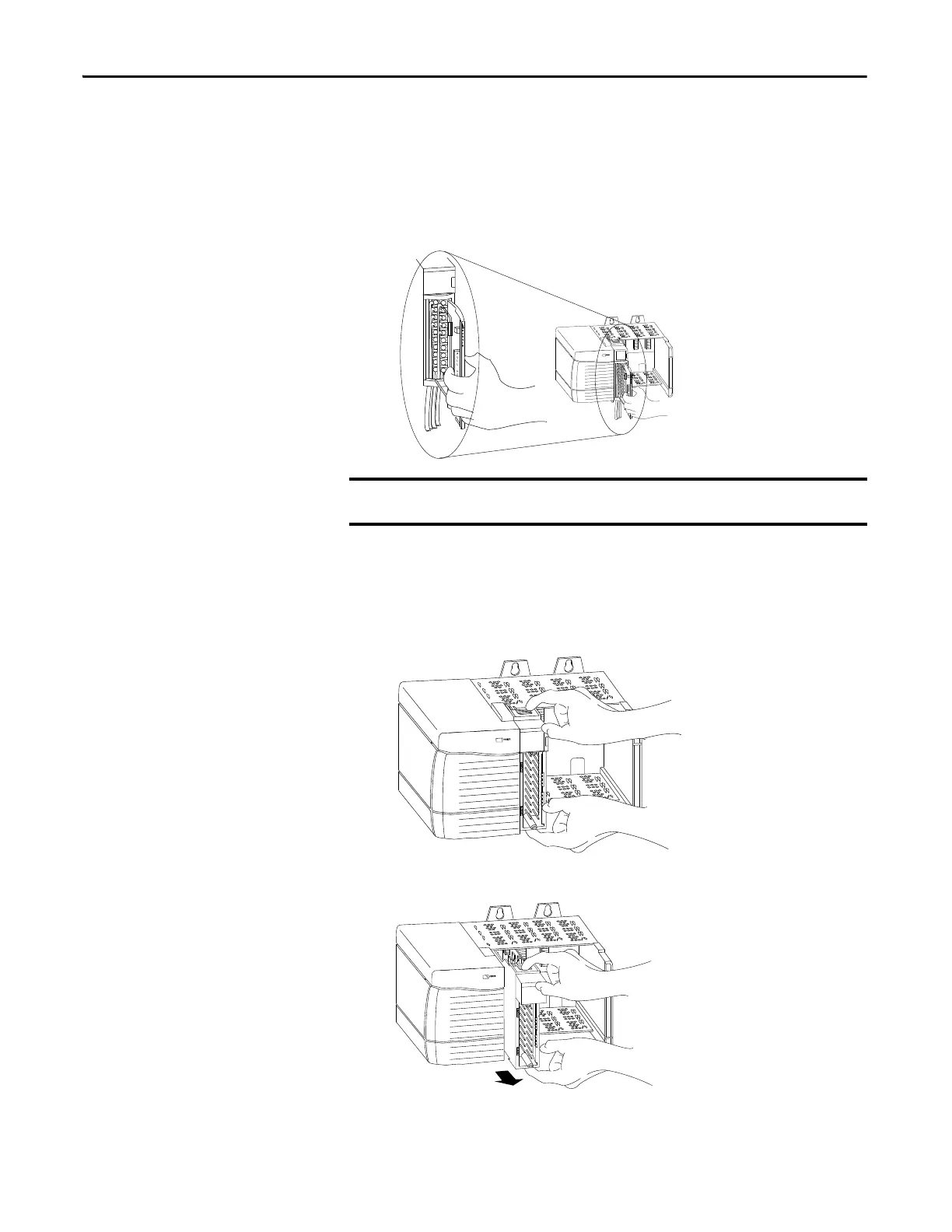

Complete the following steps to remove the RTB.
1. Unlock the locking tab at the top of the module.
2. Open the RTB door by using the bottom tab.
3. Hold the spot marked PULL HERE and pull the RTB off the module.
Remove the Module from the
Chassis
Complete the following steps to remove a module from its chassis.
1. Push in the top and bottom locking tabs.
2. Pull the module out of the chassis.
IMPORTANT
Do not wrap your fingers around the entire door. A shock hazard exists.
20855-M
20856-M
20857-M
