Rockwell Automation Publication 1756-UM540E-EN-P - December 2017 133
Configure ControlLogix Analog I/O Modules Chapter 7

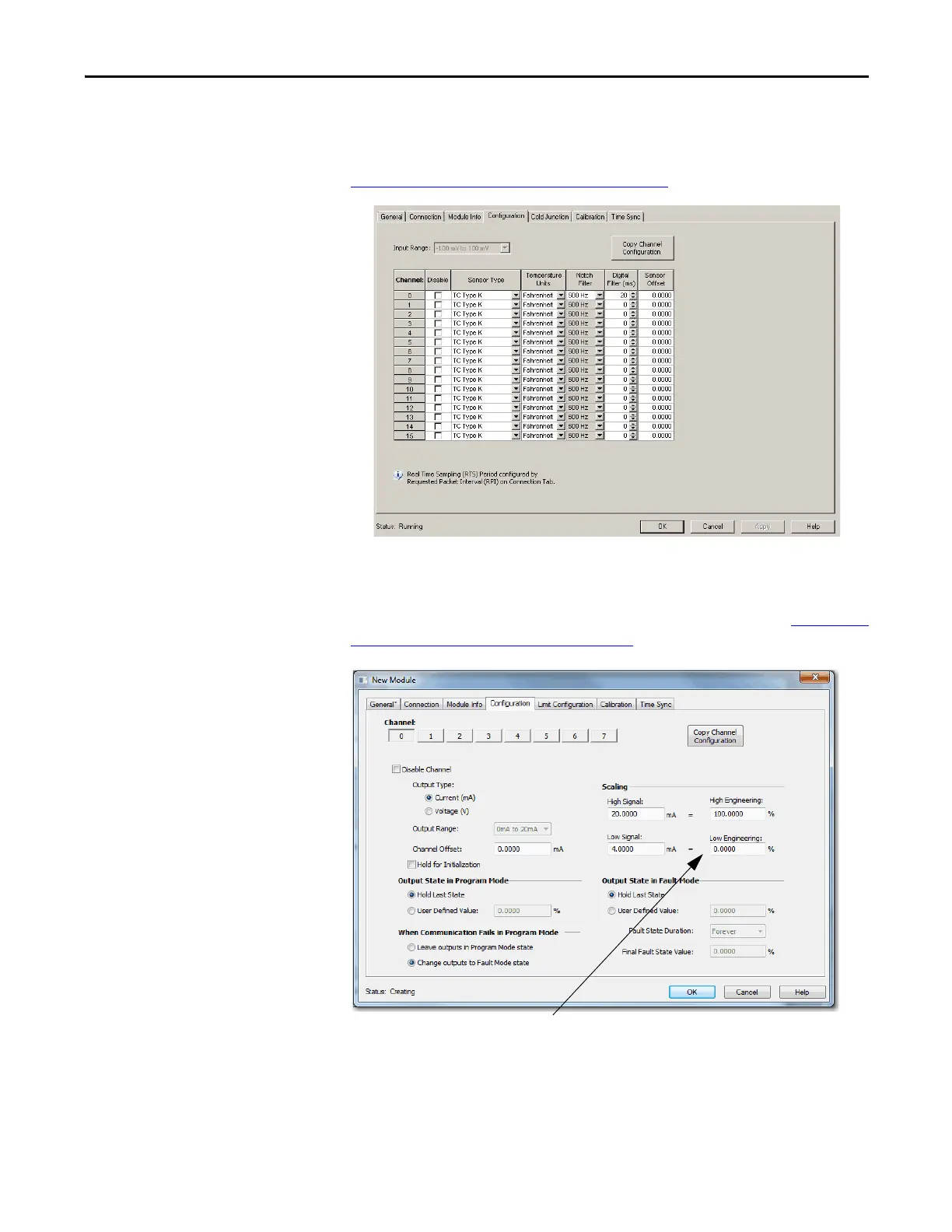

1756-IT16 Module
For information on this tab’s configurable parameters, see Chapter 4,
Temperature-sensing Analog Modules
on page 59.
1756-OF8I Module
For information on this tab’s configurable parameters, see Chapter 5, 1756-OF8I
Isolated Analog Output Module on page 89.
IMPORTANT: Changes to the High Engineering and Low Engineering values do
not automatically change the Clamp values on the Limit Configuration tab.
