Chapter 8 Calibrate the ControlLogix Analog I/O Modules
12. Click Next.

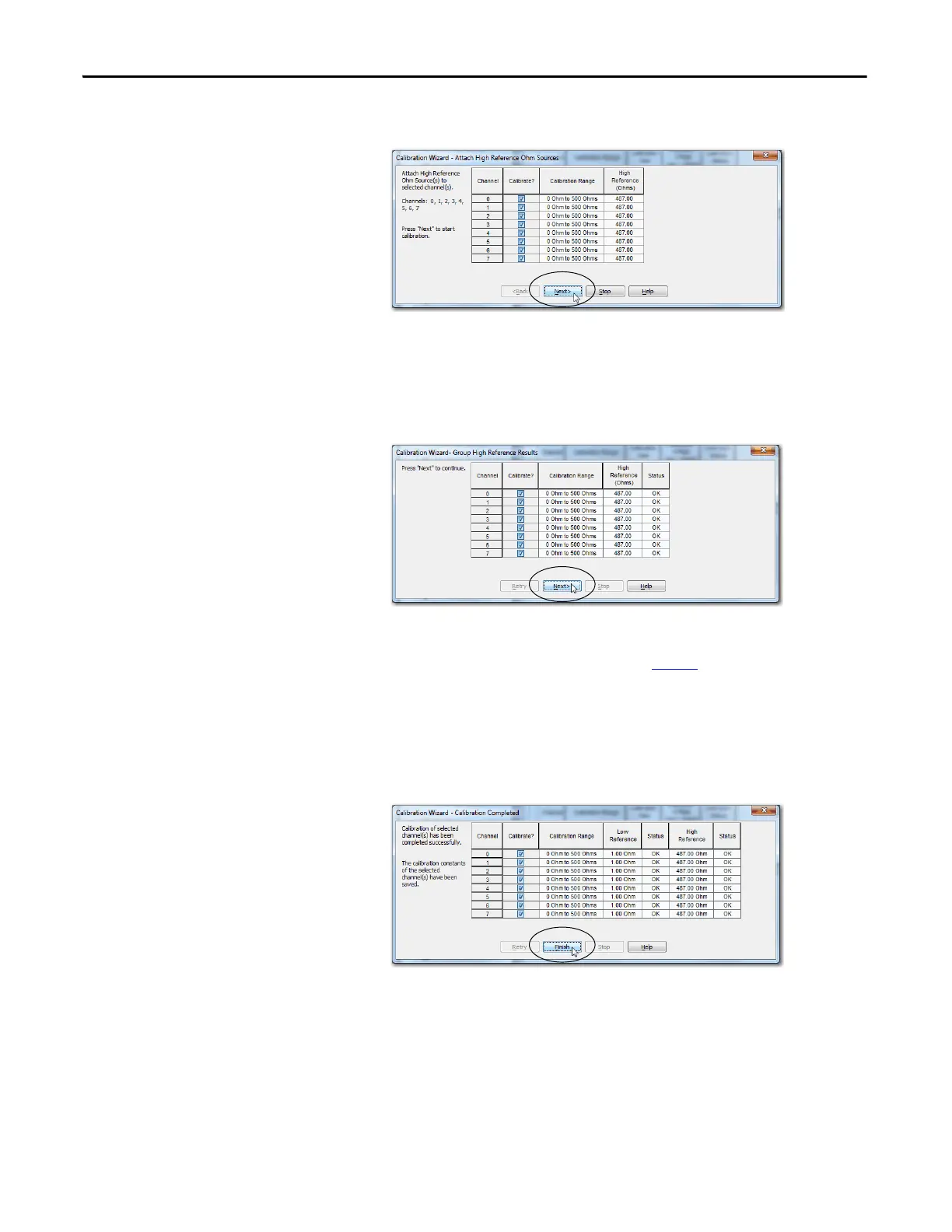

The Group High Reference Results dialog box indicates the status of each
channel after calibrating for a high reference.
13. If channels are OK, click Next.
If any channel reports an error, return to step 11
and click Retry until the
status is OK.
If the error persists indefinitely, click Stop to exit calibration. The channel
remains calibrated to the accuracy level achieved at factory calibration.
14. When the Calibration Completed dialog box appears, click Finish.
